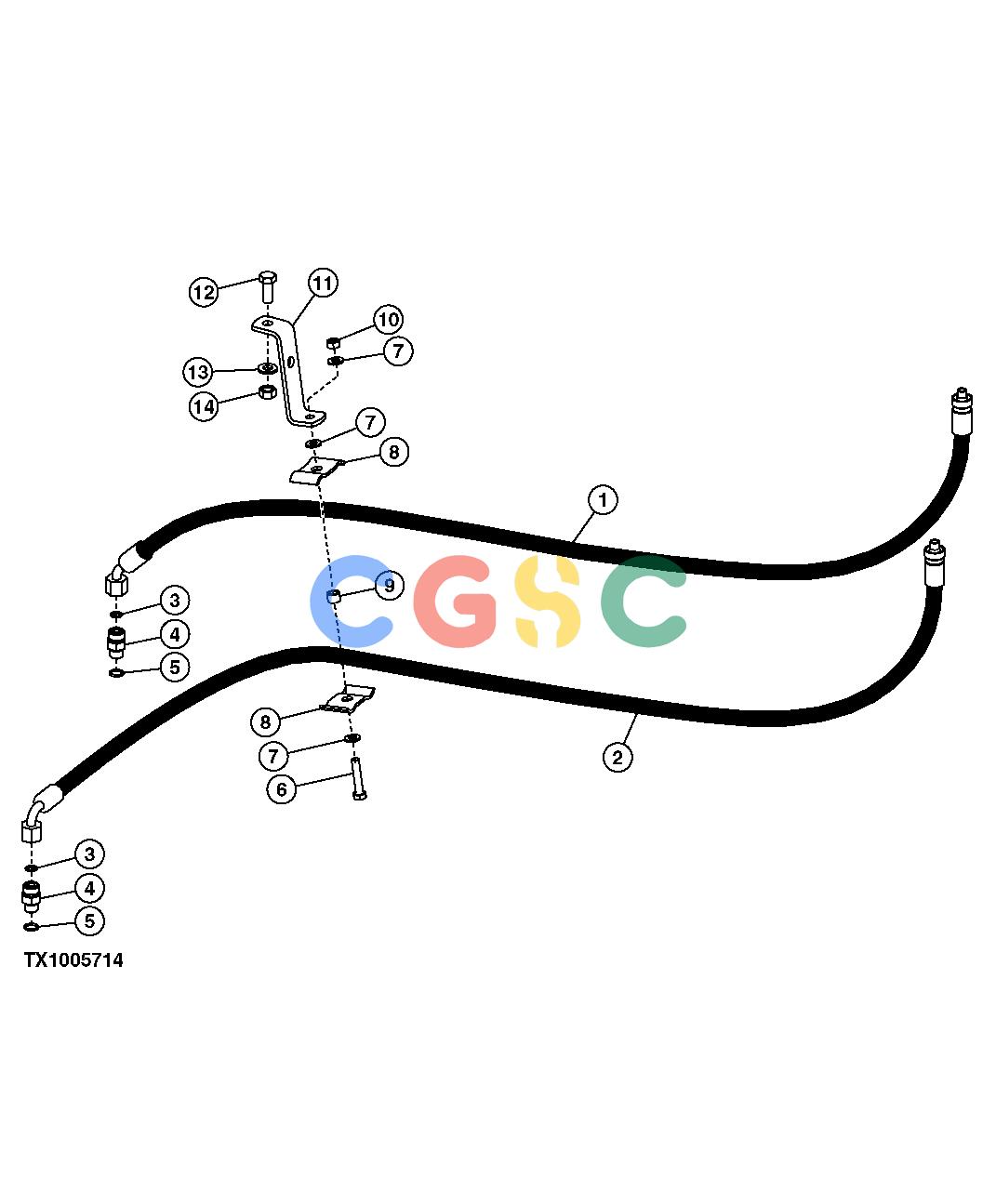

约翰迪尔零件查询410G - BACKHOE, LOADER Service Brake HydraulicsEPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT185513
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 2. |
AT184894
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 3. |
T77613
|
[2] |
O-Ring
|
|
| 4. |
38H1212
|
[2] |
Adapter Fitting
|
|
| 5. |
R26448
|
[2] |
O-Ring
|
|
| 6. |
19M7922
|
[1] |
Cap Screw
|
|
| 7. |
24M7238
|
[3] |
Washer
|
|
| 8. |
R46919
|
[2] |
Half Clamp
|
|
| 9. |
T186859
|
[1] |
Washer
|
|
| 10. |
14M7273
|
[1] |
Nut
|
|
| 11. |
T158245
|
[1] |
Strap
|
|
| 12. |
19M7402
|
[1] |
Cap Screw
|
|
| 13. |
24M7239
|
[1] |
Washer
|
|
| 14. |
14M7274
|
[1] |
Nut
|
|
