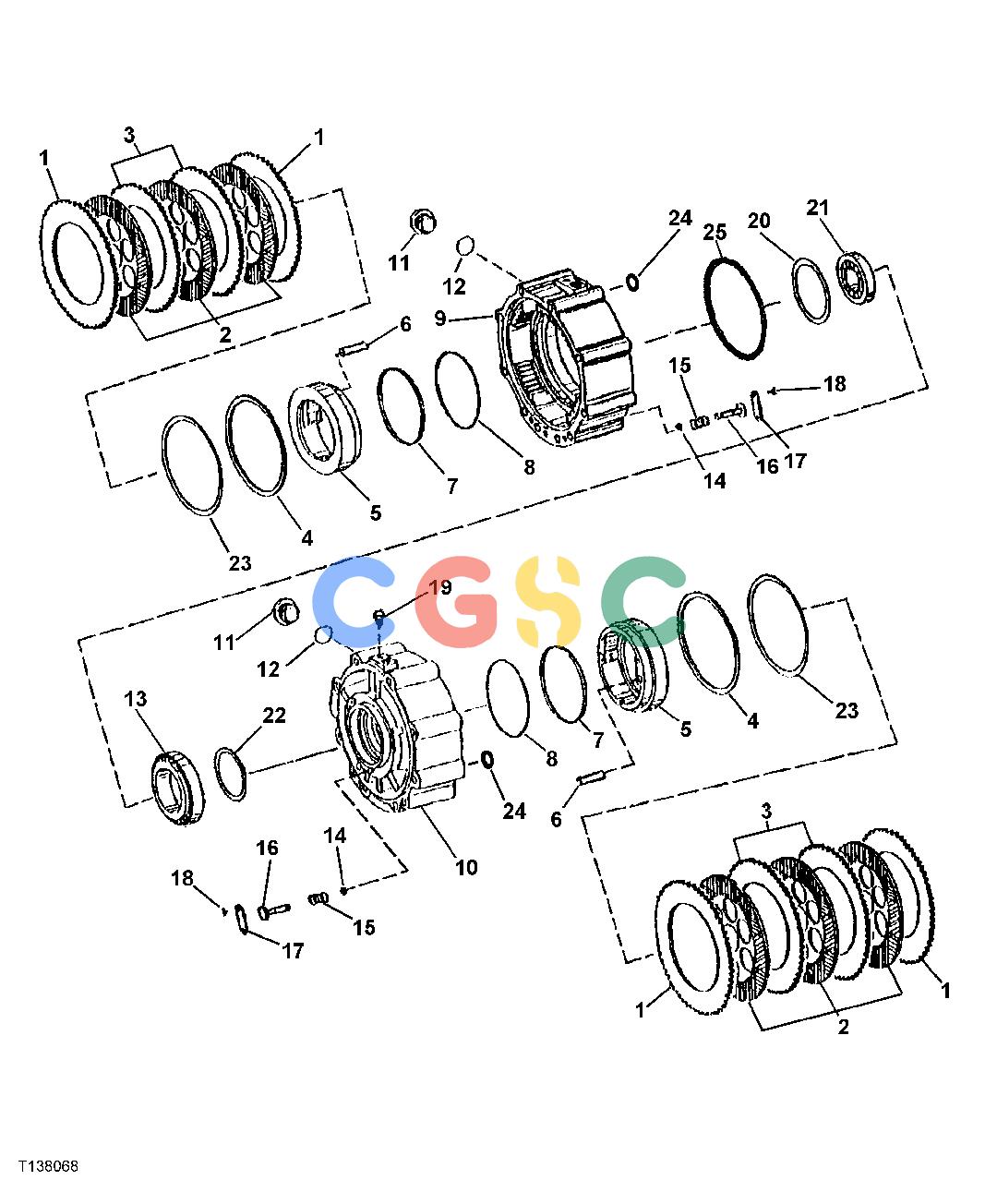

约翰迪尔零件查询410G - BACKHOE, LOADER Service Brake AssemblyEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览：次

Pos. Part No Qty Parts name Comments
1. T159409 [4]   Plate      3 MM (.118 IN.)
2. AT179503 [6]   Brake Disk
3. T161233 [4]   Disk      4 MM (.157 IN.)
4. T159402 [2]   Seal
5. T185443 [2]   Piston
6. T159399 [4]   Dowel Pin
7. T159400 [2]   Seal
8. T159401 [2]   Back-Up Ring
9. T159396 [1]   Housing      RIGHT
10. T159397 [1]   Housing      LEFT
11. 15M7030 [2]   Pipe Plug
12. L55580 [2]   O-Ring
13. AT179504 [1]   Tapered Roller Bearing      LEFT
14. T159407 [6]   Ring
15. T159408 [6]   Spring
16. T159406 [6]   Pin
17. T159398 [6]   Lock Plate
18. 19M8425 [12]   Cap Screw      M6 X 16
19. T162517 [2]   Bleed Valve
20. T161247 [1]   Shim      .20 MM (.008 IN.)
20. T161246 [1]   Shim      .30 MM (.019 IN)
20. T161245 [1]   Shim      .40 MM (.016 IN)
20. T161244 [1]   Shim      .50 MM (.020 IN.)
20. T161243 [1]   Shim      .70 MM (.028 IN)
20. T161242 [1]   Shim      .75 MM (.030 IN.)
20. T161241 [1]   Shim      .80 MM (.031 IN.)
20. T161240 [1]   Shim      .85 MM (.033 IN.)
20. T161239 [1]   Shim      .90 MM (.035 IN)
20. T161238 [1]   Shim      .95 MM (.037 IN.)
20. T159435 [1]   Shim      1.0 MM (.039 IN)
20. T159431 [1]   Shim      1.2 MM (.047 IN)
20. T159429 [1]   Shim      1.3 MM (.051 IN.)
20. T159427 [1]   Shim      1.4 MM (.055 IN.)
20. T159425 [1]   Shim      1.5 MM (.059 IN)
21. AT179505 [1]   Tapered Roller Bearing      RIGHT
22. T159444 [1]   Shim      .1 MM (.004 IN.)
22. T159445 [1]   Shim      .15 MM (.006 IN.)
22. T159443 [1]   Shim      .2 MM (.008 IN.)
22. T159440 [1]   Shim      .3 MM (.012 IN.)
22. T159441 [1]   Shim      .5 MM (.020 IN.)
22. T159442 [1]   Shim      1.0 MM (.040 IN.)
22. T159446 [1]   Shim      1.1 MM (.043 IN.)
22. T159447 [1]   Shim      1.2 MM (.047 IN.)
22. T159448 [1]   Shim      1.3 MM (.051 IN.)
22. T159449 [1]   Shim      1.4 MM (.055 IN.)
22. T159450 [1]   Shim      1.5 MM (.060 IN.)
22. T159451 [1]   Shim      1.6 MM (.063 IN.)
22. T159452 [1]   Shim      1.7 MM (.067 IN.)
22. T159453 [1]   Shim      1.8 MM (.071 IN.)
22. T183500 [1]   Solid Shim      2.15 MM (.085 IN.)
22. T183502 [1]   Solid Shim      2.25 MM (.089 IN.)
22. T183505 [1]   Solid Shim      2.4 MM (.094 IN.)
22. T183506 [1]   Solid Shim      2.45 MM (.096 IN.)
22. T183507 [1]   Solid Shim      2.5 MM (.098 IN.)
22. T159457 [1]   Shim      2.8 MM (.110 IN.)
22. T159459 [1]   Shim      3.0 MM (.118 IN.)
22. T159461 [1]   Shim      3.2 MM (.126 IN.)
22. T159463 [1]   Shim      3.4 MM (.134 IN.)
23. T159403 [2]   Back-Up Ring
24. T159373 [8]   O-Ring
25. T159362 [1]   O-Ring
