约翰迪尔零件查询410G - BACKHOE, LOADER Steering Hydraulics (w/o MFWD) (911132 - )EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览：次

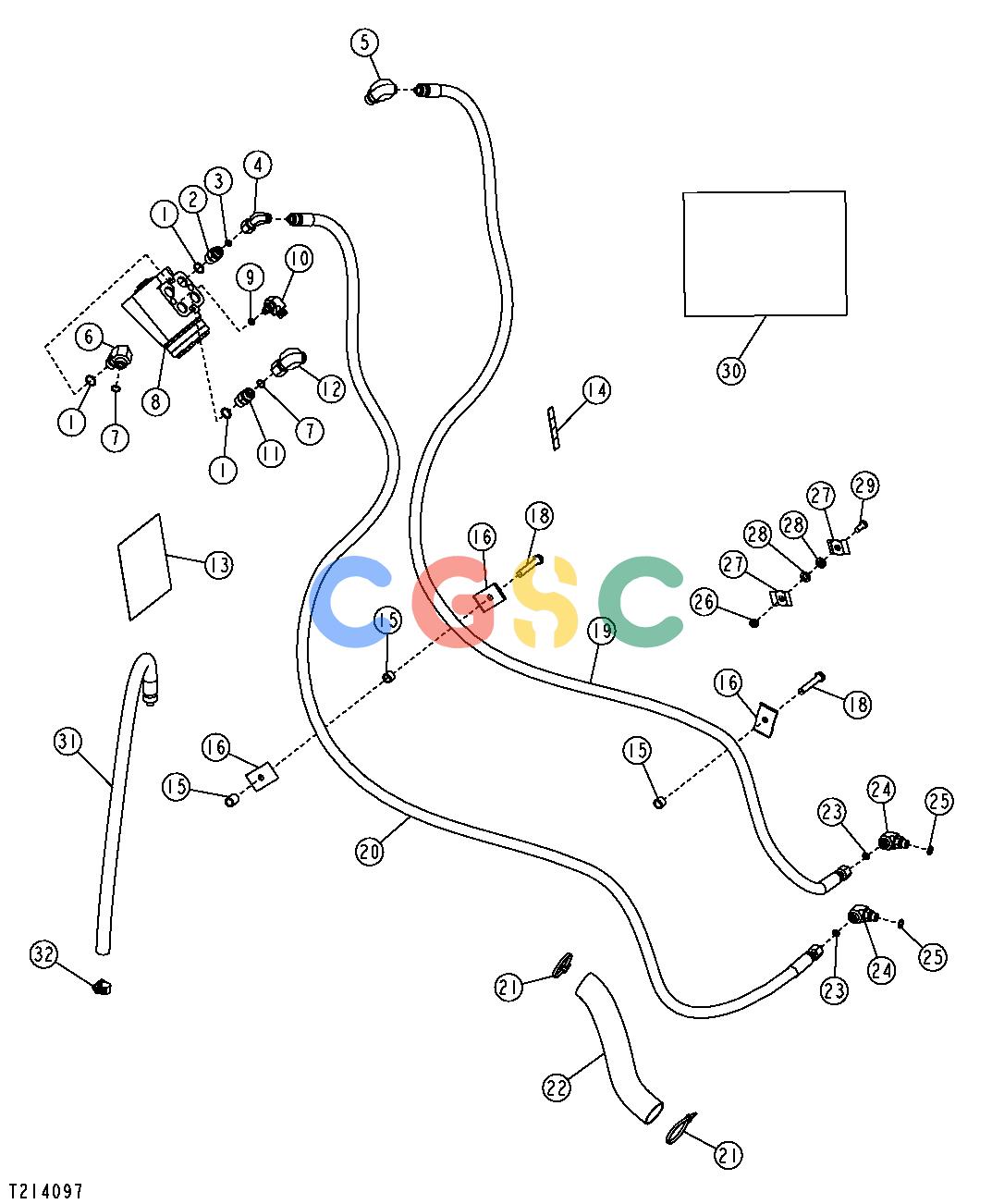

Pos.	Part No	Qty	Parts name	Comments
1.	R26375	[4]	O-Ring
2.	38H1171	[1]	Adapter Fitting
3.	T77613	[3]	O-Ring
4.	AT195201	[1]	Elbow Fitting	-06
5.	AT195202	[1]	Elbow Fitting	-06
6.	38H1005	[1]	Elbow Fitting
7.	T77857	[2]	O-Ring
8.	AT309882	[1]	Manual Hydraulic Valve	(SUB FOR AT192243)
8.	AT316249	[1]	Seal Kit	(SUB FOR AT198090)
9.	R28782	[1]	O-Ring
10.	AT188010	[1]	Elbow Fitting	-06
11.	38H1161	[1]	Adapter Fitting
12.	AT195203	[1]	Elbow Fitting	-08
13.	T191425	[1]	Label
14.	T184320	[1]	Label
15.	28H3394	[2]	Bushing	0.493" X 0.675" X 1/2"
15.	28H3394	[3]	Bushing	0.493" X 0.675" X 1/2"
16.	R46919	[4]	Half Clamp
16.	R46919	[3]	Half Clamp
17.	28H3383	[2]	Bushing	0.493" X 0.675" X 3/4"
18.	19M7742	[2]	Cap Screw	M10 X 65
18.	19M8600	[2]	Cap Screw	M10 X 50
19.	AT188385	[1]	Hydraulic Hose - Fabricate
20.	AT197853	[1]	Hydraulic Hose - Fabricate	(ALSO ORDER 62H1042 AND T77613)
21.	R44302	[2]	Tie Band
22.	........	[1]	Hose Guard
23.	T77613	[2]	O-Ring
24.	38H1004	[2]	Elbow Fitting
25.	R26448	[2]	O-Ring
26.	14M7273	[1]	Nut	M8 NOT REQUIRED
27.	R27491	[2]	Clamp	NOT REQUIRED
28.	24H1304	[2]	Washer	13/32" X 23/32" X 0.120" NOT REQUIRED
29.	19M7881	[1]	Screw	M8 X 20 NOT REQUIRED
30.	AT193365	[1]	Seal Kit	STC REPAIR (-06)
30.	AT193366	[1]	Seal Kit	STC REPAIR (-08)
31.	AT184900	[1]	Hydraulic Hose - Fabricate	(ALSO ORDER 62H1043 AND T77857)
32.	AR21836	[1]	Clamp
