约翰迪尔零件查询410G - BACKHOE, LOADER Steering Hydraulics (w/ MFWD) ( - 911131)EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览：次

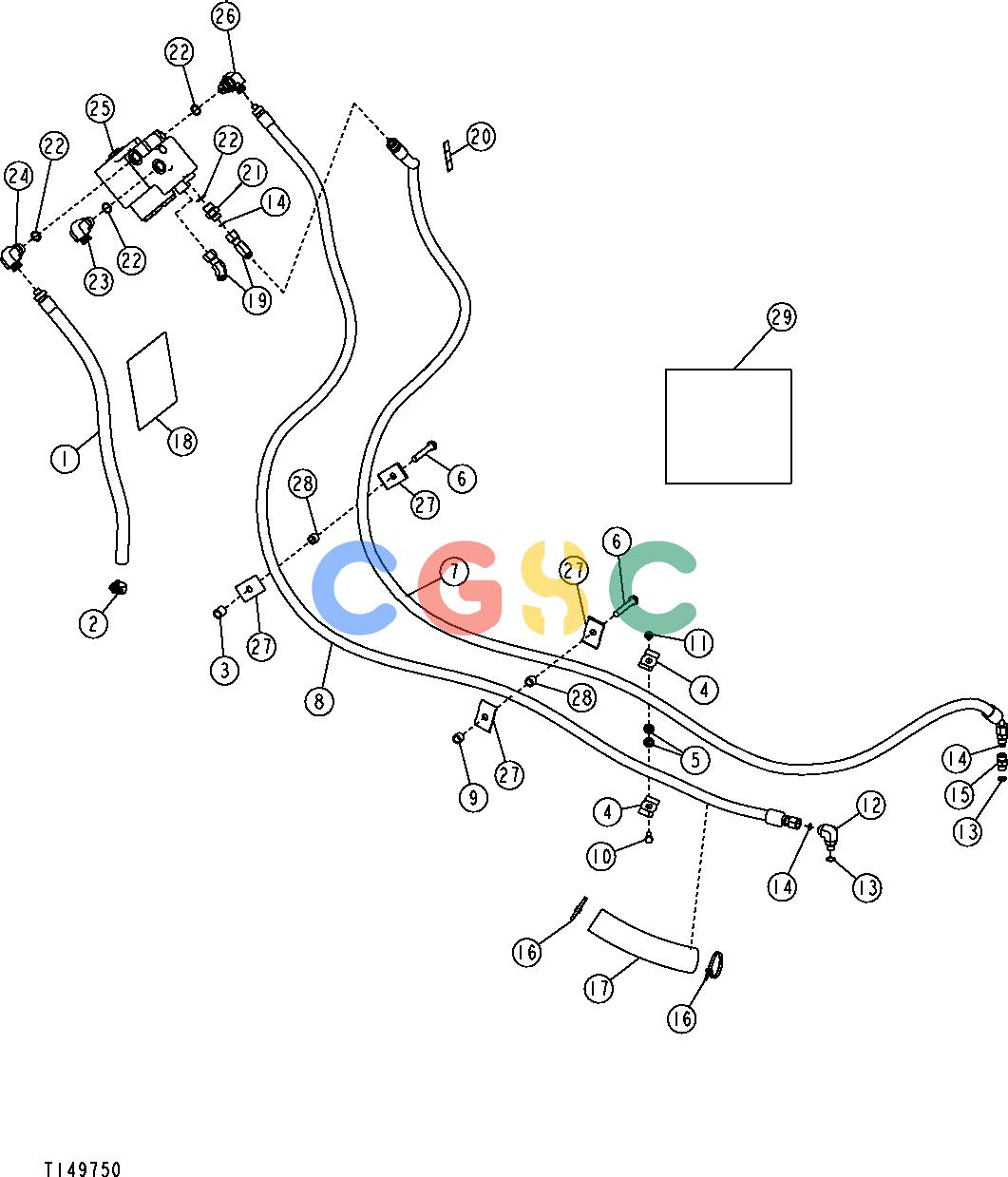

Pos.	Part No	Qty	Parts name	Comments
1.	AT184900	[1]	Hydraulic Hose - Fabricate	(ALSO ORDER 62H1043 AND T77857)
1.	62H1043	[1]	Adapter Fitting	STC
2.	AR21836	[1]	Clamp
3.	28H3383	[1]	Bushing	0.493" X 0.675" X 3/4"
4.	R27491	[2]	Clamp
5.	24M7106	[2]	Washer	10 X 18 X 2.500 MM
6.	19M8412	[2]	Screw	M10 X 55 (SUB FOR T184328)
6.	19M7742	[2]	Cap Screw	M10 X 65
7.	AT188382	[1]	Hydraulic Hose - Fabricate	(ALSO ORDER 62H1042 AND T77613)
7.	62H1042	[1]	Adapter Fitting	STC
8.	AT188383	[1]	Hydraulic Hose - Fabricate	(ALSO ORDER 62H1042 AND T77613)
8.	62H1042	[1]	Adapter Fitting	STC
9.	28H3394	[1]	Bushing	0.493" X 0.675" X 1/2"
10.	19M7881	[1]	Screw	M8 X 20
11.	14M7273	[1]	Nut	M8
12.	38H1004	[1]	Elbow Fitting
13.	R26448	[2]	O-Ring
14.	T77613	[4]	O-Ring
15.	38H1160	[1]	Adapter Fitting
16.	R44302	[2]	Tie Band
17.	........	[1]	Sleeve	254 MM (MAKE FROM T78606) (CTL)
18.	T185019	[1]	Label	HOSE
19.	AT194701	[2]	Elbow Fitting	-06 (SUB FOR AT188009)
20.	T185394	[1]	Label	HOSE
21.	38H1171	[1]	Adapter Fitting
22.	R26375	[5]	O-Ring
23.	AT187668	[1]	Elbow Fitting	-08
24.	AT187668	[1]	Elbow Fitting	-08
25.	AT172609	[1]	Manual Hydraulic Valve
26.	AT195202	[1]	Elbow Fitting	-06 (SUB FOR AT188009)
27.	R27491	[4]	Clamp
27.	R46919	[4]	Half Clamp
28.	24M7106	[2]	Washer	10 X 18 X 2.500 MM
28.	28H3394	[2]	Bushing	0.493" X 0.675" X 1/2"
29.	AT193365	[1]	Seal Kit	STC REPAIR (-06)
29.	AT193366	[1]	Seal Kit	STC REPAIR (-08)
