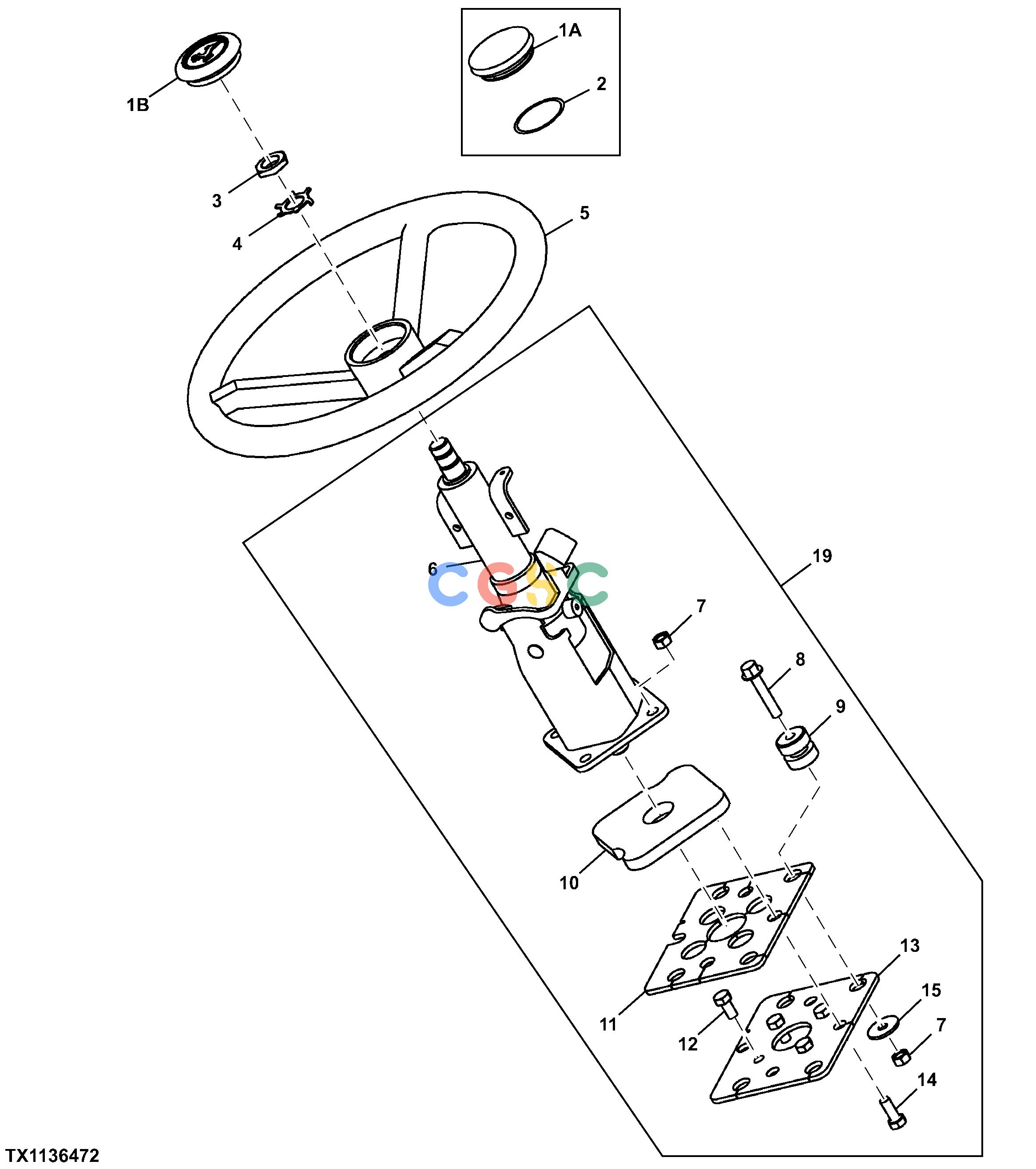

约翰迪尔零件查询410G - BACKHOE, LOADER Steering Wheel and Tilt ColumnEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览：次

Pos.	Part No	Qty	Parts name	Comments
1A.	AL118173	[1]	Cover	NLA, ORDER AL155227
1B.	AL155227	[1]	Cover	SUB FOR AL118173 OR R47998
2.	P50631	[1]	O-Ring
3.	T13630	[1]	Nut
4.	T17148	[1]	Lock Washer
5.	AT139694	[1]	Steering Wheel
6.	AT184397	[1]	Steering Column
6.	AT192278	[1]	Spring Kit	COLUMN TILT UP SPRING NOT ILLUSTRATED
6.	AT192279	[1]	Spring Kit	LEVER RETURN SPRING NOT ILLUSTRATED
6.	AT192280	[1]	Knob	KNOB NOT ILLUSTRATED
7.	14M7274	[8]	Nut	M10
8.	19M8528	[4]	Screw	M10 X 55
9.	AT219940	[4]	Isolator
10.	T165533	[1]	Gasket
11.	T165188	[1]	Plate
12.	19H1648	[4]	Cap Screw	3/8" X 3/4"
12.	19M7938	[4]	Cap Screw	M10 X 20
13.	T165256	[1]	Plate
14.	19M7402	[4]	Cap Screw	M10 X 25
15.	24M7101	[4]	Washer	11 X 34 X 3 MM SUB FOR 24H1312, APPL
19.	AT195686	[1]	Steering Column	NLA, ORDER COMPONENT PARTS
