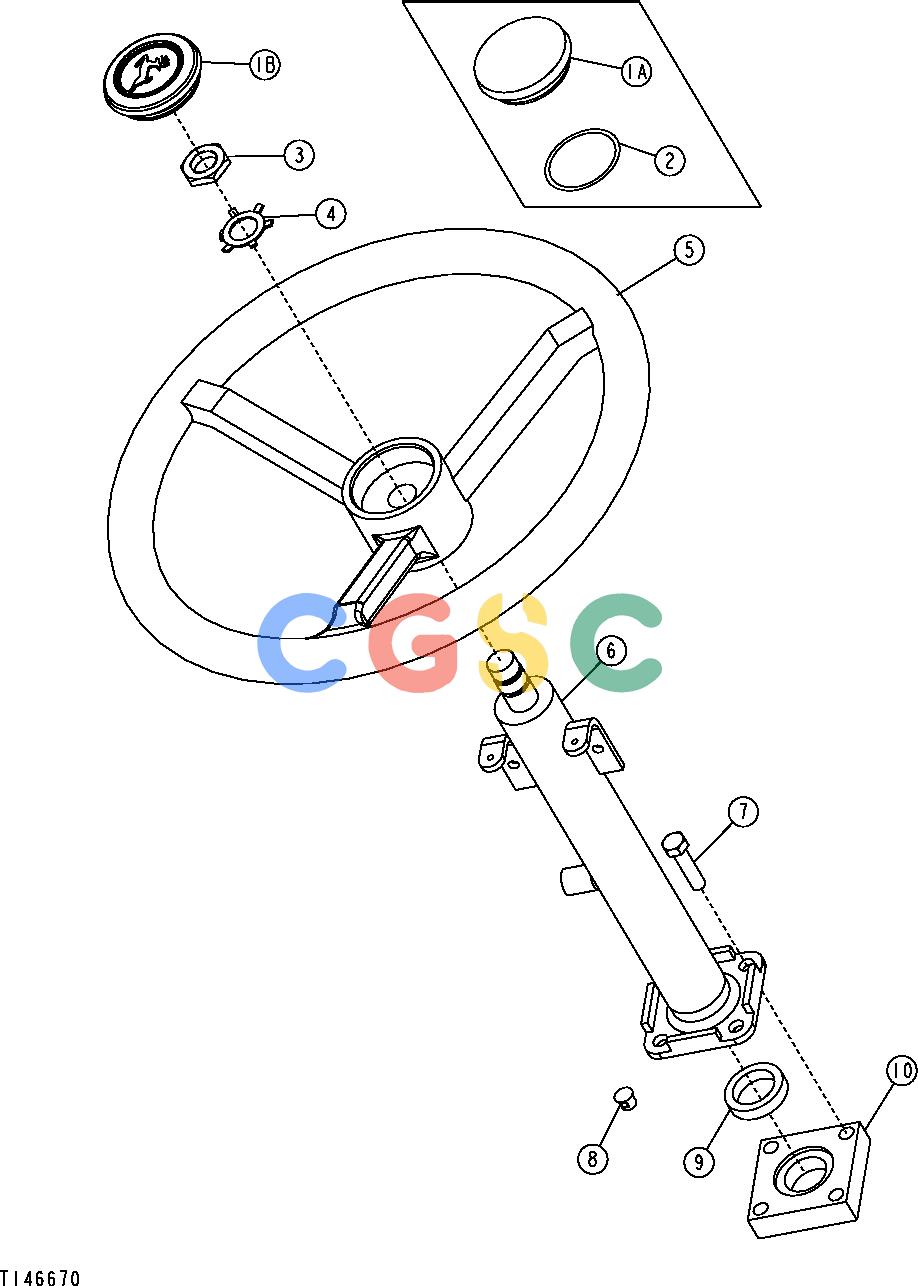

Pos. | Part No | Qty | Parts name | Comments |
---|---|---|---|---|
1. | R47998 | [1] | Cap | |
1. | AL155227 | [1] | Cover | |
2. | P50631 | [1] | O-Ring | |
3. | T13630 | [1] | Nut | |
4. | T17148 | [1] | Lock Washer | |
5. | AT139694 | [1] | Steering Wheel | |
6. | AT184728 | [1] | Steering Column | |
6. | AT307345 | [1] | Steering Column | |
7. | 19H2633 | [4] | Cap Screw | 3/8" X 1-1/2" |
7. | 19M8637 | [4] | Cap Screw | M10 X 40 |
7. | 19M7938 | [4] | Cap Screw | M10 X 20 |
8. | H113924 | [8] | Plug | |
9. | T167416 | [1] | Washer | |
10. | T167319 | [1] | Adapter Fitting |
