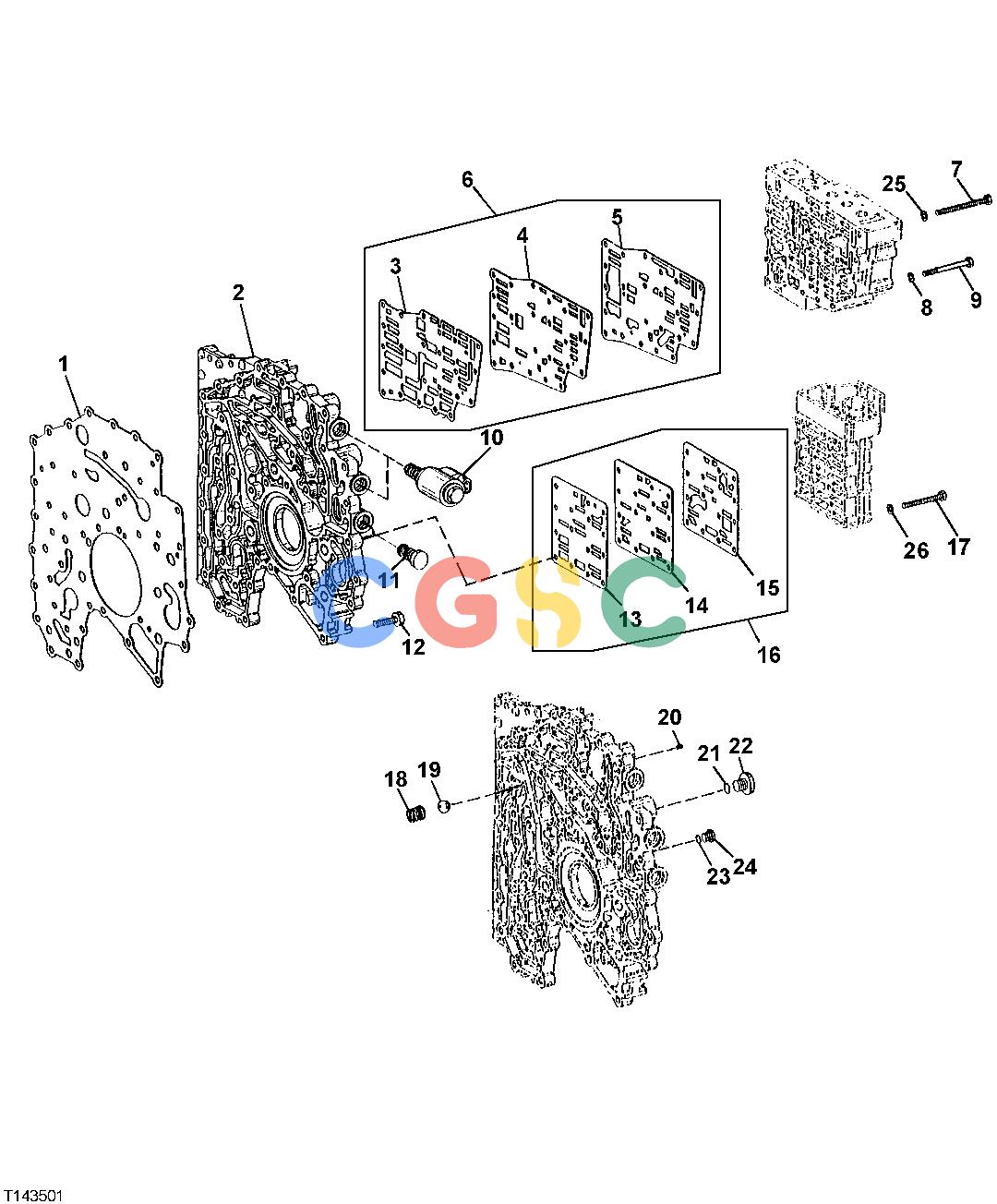

约翰迪尔零件查询410G - BACKHOE, LOADER Transmission Intermediate Plate and Gaskets, Powershift ™EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览：次

Pos. Part No Qty Parts name Comments
1. T164592 [1]   Gasket
2. T186560 [1]   Housing      SUB FOR T164591
3. T244750 [1]   Gasket      NLA, ORDER AT329188
4. T164595 [1]   Plate      NLA, ORDER AT329188
5. T224751 [1]   Gasket      NLA, ORDER AT329188
6. AT192552 [1]   Plate      NLA, ORDER (1) AT439588. ALSO ORDER (5) T159613, (19) T159607, AND (24) T161204
6. AT329188 [1]   Plate      NLA, ORDER AT439588. ALSO ORDER (5) T159613, (19) T159607, AND (24) T161204
6. AT439588 [1]   Gasket      SUB FOR AT192552 AND AT329188
7. T159613 [4]   Cap Screw
8. T161204 [19]   Washer
9. T159607 [19]   Cap Screw
10. AT177703 [2]   Solenoid Valve      PARK BRAKE, DIFFERENTIAL LOCK
10. AT179318 [2]   Solenoid      NLA, ORDER AT177703 NOT ILLUSTRATED
10. AT179319 [2]   Electrical Coil      NOT ILLUSTRATED
10. AT179320 [2]   O-Ring Kit      NOT ILLUSTRATED
10. T161144 [2]   Nut      NOT ILLUSTRATED
11. T159684 [1]   Plug      MFWD SOLENOID HOLE
11. AT177703 [1]   Solenoid Valve      MFWD NOT ILLUSTRATED
11. AT179319 [1]   Electrical Coil      NOT ILLUSTRATED
11. AT179320 [1]   O-Ring Kit      NOT ILLUSTRATED
11. T161144 [1]   Nut      NOT ILLUSTRATED
12. T161208 [43]   Cap Screw
13. T224776 [1]   Gasket      NLA, ORDER AT329189. ALSO ORDER (19) T159607
14. T164598 [1]   Plate      NLA, ORDER AT329189. ALSO ORDER (19) T159607
15. T224777 [1]   Gasket      NLA, ORDER AT329189. ALSO ORDER (19) T159607
16. AT192553 [1]   Plate      NLA, ORDER (19) AT329189. ALSO ORDER (19) T159607
16. AT329189 [1]   Plate      SUB FOR AT192553
17. T164686 [15]   Cap Screw
18. T144494 [1]   Compression Spring
19. T144493 [1]   Ball
20. T164577 [1]   Orifice
21. R26286 [1]   O-Ring      10.516 X 1.829 MM (0.414" X 0.072")
22. R27094 [1]   Drain Plug
23. L11698 [1]   O-Ring      8 X 1.500 MM (0.315" X 0.059")
24. T161194 [1]   Plug
25. T161204 [4]   Washer
26. T161204 [15]   Washer
