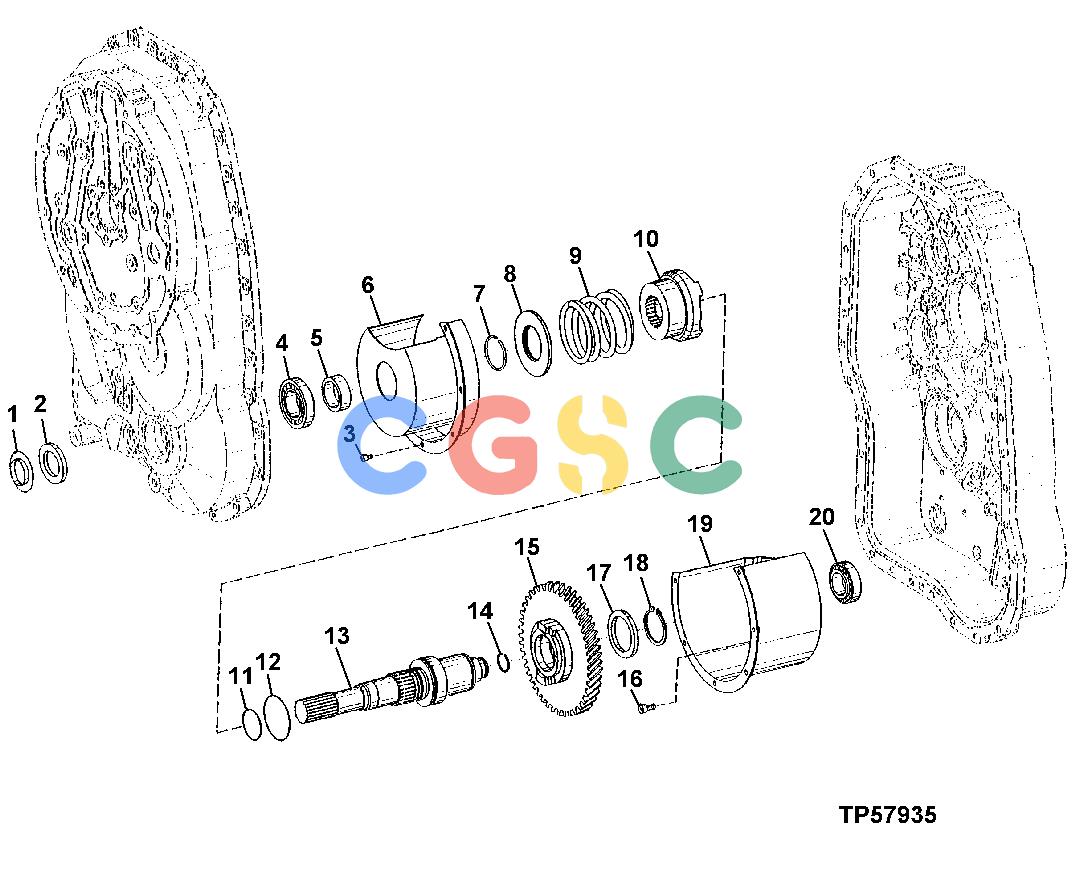

约翰迪尔零件查询410G - BACKHOE, LOADER Transmission Output Shaft / MFWD (Power Shift)EPC John Deere online
广数供应链运营团队, 16 02月, 2025,浏览:次
Pos. |
Part No |
Qty |
Parts name |
Comments |
1. |
T159572
|
[1] |
Dust Shield
|
|
2. |
AT179466
|
[1] |
Seal
|
|
3. |
T166078
|
[6] |
Screw
|
|
4. |
AT179468
|
[1] |
Tapered Roller Bearing
|
|
5. |
T164572
|
[1] |
Bushing
|
|
6. |
T164576
|
[1] |
Screen
|
|
7. |
T158722
|
[1] |
Snap Ring
|
|
8. |
T158855
|
[1] |
End Plate
|
|
9. |
T158762
|
[1] |
Spring
|
|
10. |
T158859
|
[1] |
Sleeve
|
|
11. |
T158744
|
[1] |
Ring
|
|
12. |
T158745
|
[1] |
Ring
|
|
13. |
T164574
|
[1] |
Shaft
|
|
14. |
T158742
|
[1] |
Ring
|
|
15. |
T164575
|
[1] |
Gear
|
|
16. |
19M7931
|
[3] |
Screw
|
|
17. |
T158760
|
[1] |
Thrust Washer
|
|
18. |
L78069
|
[1] |
Ring
|
|
19. |
T184918
|
[1] |
Screen
|
|
20. |
AT179472
|
[1] |
Tapered Roller Bearing
|
|
