约翰迪尔零件查询410G - BACKHOE, LOADER Forward Clutch AssemblyEPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询410G - BACKHOE, LOADER Forward Clutch AssemblyEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览：次

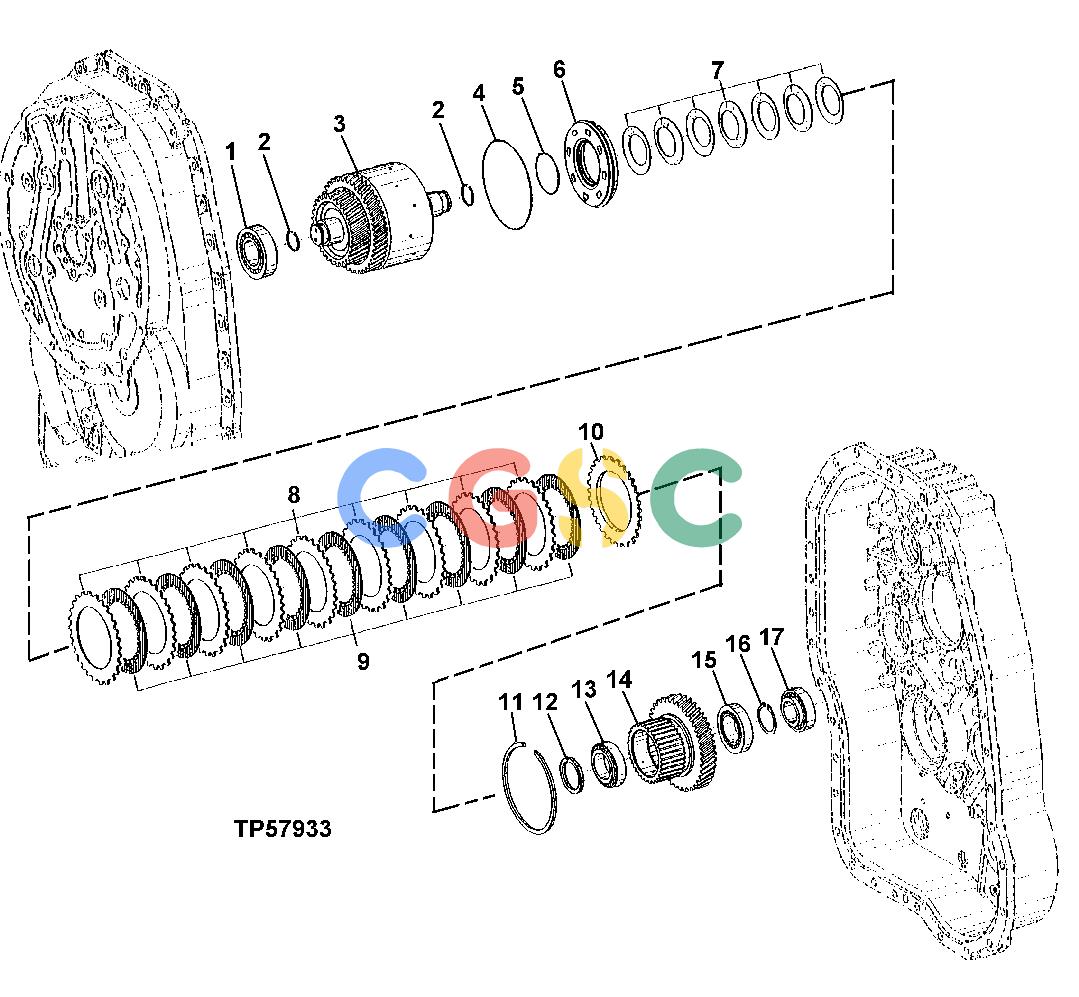

Pos.	Part No	Qty	Parts name	Comments
1.	AT435600	[1]	Tapered Roller Bearing	SUB FOR AT184042
2.	T158742	[2]	Ring
3.	AT184043	[1]	Drum	DISK CARRIER
4.	T158739	[1]	Ring
5.	T158743	[1]	Ring
6.	AT364084	[1]	Piston	REQUIRES T158739 AND T158743 SUB FOR AT193704 AND T158789
7.	T158775	[7]	Disk Spring
8.	T158801	[9]	Clutch Plate
9.	AT179473	[9]	Disk With Inner Spline
10.	T161147	[1]	Plate
11.	T261408	[1]	Snap Ring	4.00 MM T161183 NLA
11.	T261410	[1]	Snap Ring	3.50 MM T158778 NLA
11.	T261411	[1]	Snap Ring	3.00 MM T159568 NLA
11.	T261413	[1]	Snap Ring	2.50 MM T159569 NLA
11.	T261414	[1]	Snap Ring	2.00 MM T159570 NLA
12.	T158756	[1]	Washer
13.	AT179469	[1]	Tapered Roller Bearing
14.	T164711	[1]	Gear
15.	AT179470	[1]	Tapered Roller Bearing
16.	T161186	[1]	Snap Ring	3.20 MM
16.	T161187	[1]	Snap Ring	3.10 MM
16.	T161188	[1]	Snap Ring	3.00 MM
16.	T161189	[1]	Snap Ring	2.90 MM
16.	T161190	[1]	Snap Ring	2.80 MM
16.	T161191	[1]	Snap Ring	2.70 MM
16.	T161192	[1]	Snap Ring	2.60 MM
16.	T161193	[1]	Snap Ring	2.50 MM
	T164628	[1]	Snap Ring	2.30 MM
	T164629	[1]	Snap Ring	2.20 MM
	T164630	[1]	Snap Ring	2.10 MM
17.	AT179471	[1]	Tapered Roller Bearing
