约翰迪尔零件查询410G - BACKHOE, LOADER Front Axle Housings, Hubs and Universal Joints (w/ MFWD)EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览：次

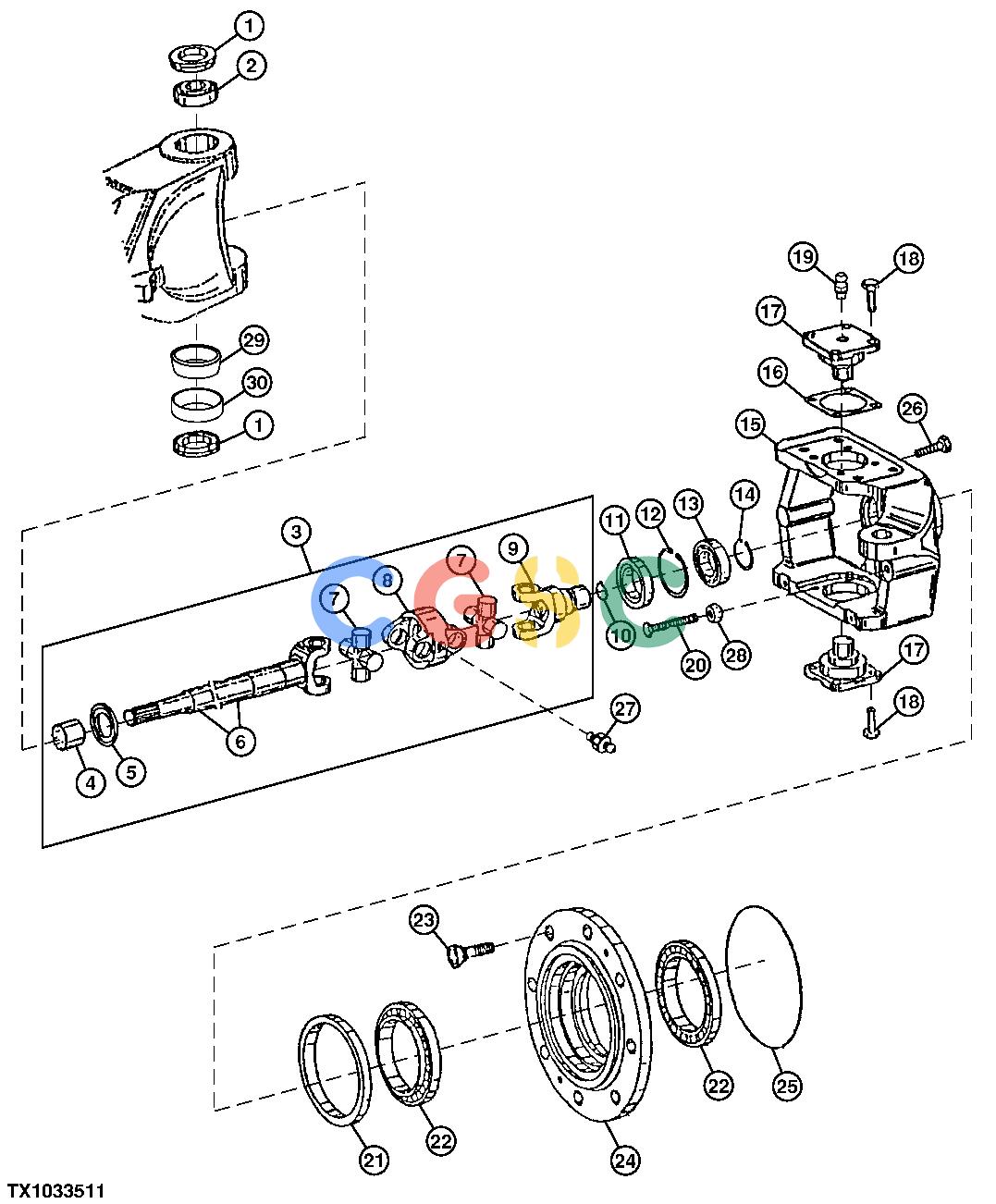

Pos.	Part No	Qty	Parts name	Comments
1.	AL79902	[2]	Seal
2.	AT339808	[1]	Tapered Roller Bearing	(SUB FOR AL79901)
3.	AT167118	[1]	Universal Driveshaft	(LH)
3.	AT167119	[1]	Universal Driveshaft	(RH) NOT ILLUSTRATED
4.	L100636	[1]	Bushing
5.	L100635	[1]	Sheet
6.	T153722	[1]	Shaft	(LH)
6.	T153721	[1]	Shaft	(RH) NOT ILLUSTRATED
7.	L100632	[2]	Cross And Bearing Assembly
8.	L100633	[1]	Yoke
9.	T153720	[1]	Universal Joint
10.	L40276	[1]	Snap Ring
11.	AL79951	[1]	Seal
12.	40M5099	[1]	Snap Ring
13.	R115119	[1]	Ball Bearing
14.	T151264	[1]	Snap Ring
15.	T251386	[1]	Housing	(SUB FOR T151088 (LH)
15.	T251385	[1]	Housing	(SUB FOR T151087 (RH) NOT ILLUSTRATED
16.	L100102	[AR]	Shim	0.2 MM
16.	L100103	[AR]	Shim	0.3 MM
16.	L100104	[AR]	Shim	0.4 MM
16.	T166150	[AR]	Shim	0.5 MM
16.	L100105	[AR]	Shim	0.6 MM
16.	T166149	[AR]	Shim	0.7 MM
16.	L100106	[AR]	Shim	0.8 MM
16.	T166145	[AR]	Shim	0.9 MM
16.	L100107	[AR]	Shim	1.0 MM
16.	T166148	[AR]	Shim	1.1 MM
16.	T166147	[AR]	Shim	1.2 MM
16.	T166146	[AR]	Shim	1.3 MM
16.	L100109	[AR]	Shim	1.6 MM
16.	L100111	[AR]	Shim	2.0 MM
17.	T188397	[2]	Pin	(SUB FOR T151074, THIS APPLICATION) (ALSO ORDER 58M5573)
18.	19M8011	[8]	Cap Screw	M12 X 30
19.	58M5573	[2]	Lubrication Fitting
20.	L100239	[1]	Screw
21.	AL79950	[1]	Seal
22.	JD10249	[2]	Tapered Roller Bearing
23.	L55598	[8]	Wheel Bolt
24.	L100238	[1]	Hub
25.	L40317	[1]	O-Ring
26.	19M8738	[8]	Cap Screw	M10 X 45 RING GEAR TO HOUSING
27.	58M5574	[2]	Lubrication Fitting
28.	14M7345	[1]	Nut	M14
29.	AT333060	[1]	Tapered Roller Bearing	(ALSO ORDER JD8267) (SUB FOR AL79901) (APPL)
30.	JD8267	[1]	Bearing Cup
