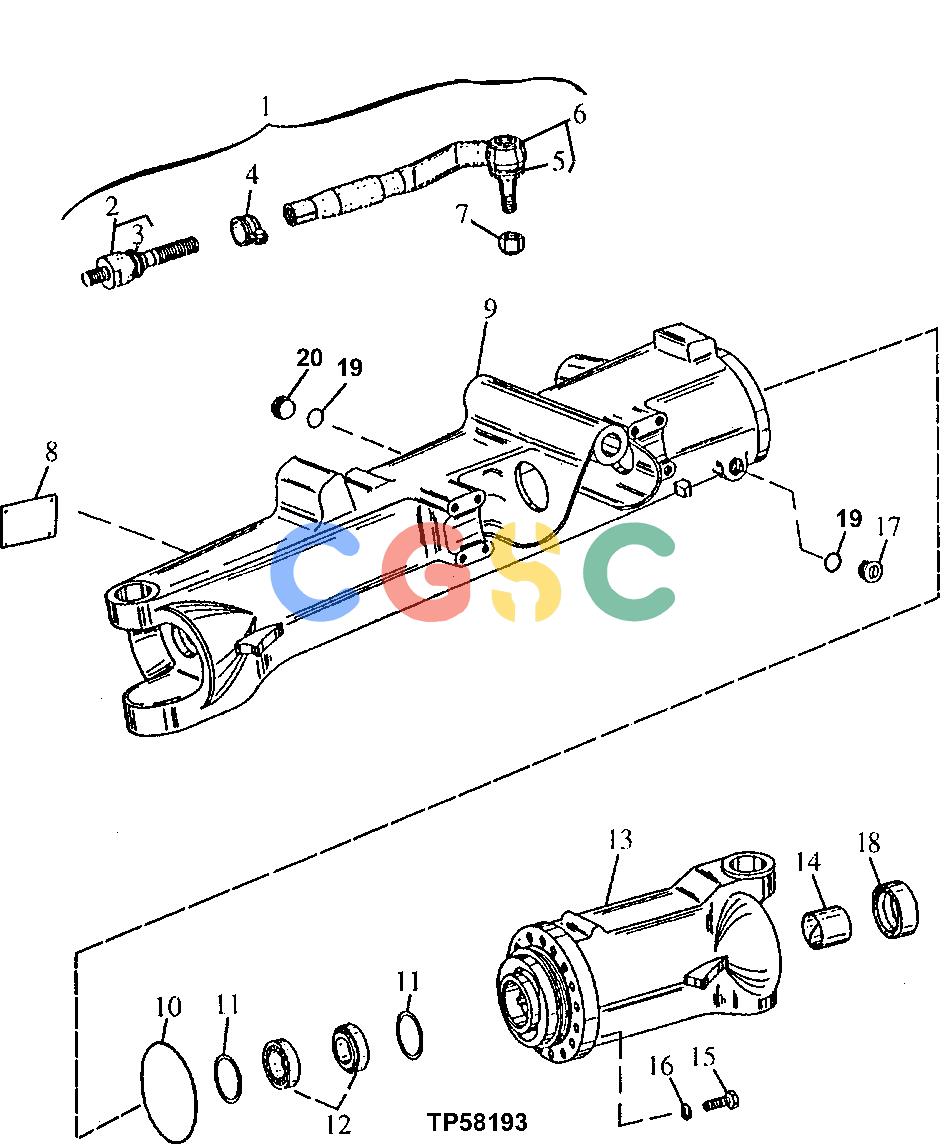

约翰迪尔零件查询410G - BACKHOE, LOADER Front Axle Housing and Tie Rods (w/ MFWD)EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览：次

Pos.	Part No	Qty	Parts name	Comments
1.	AT309304	[1]	Tie Rod Assembly	(ALSO ORDER L55605) (SUB FOR AT170205 (LH))
1.	AT309303	[1]	Tie Rod Assembly	(ALSO ORDER L55605) (SUB FOR AT170204 (RH))
2.	AL80542	[1]	Tie Rod Assembly	END
3.	AL113451	[1]	Boot
4.	AT309307	[1]	Nut	(SUB FOR AT170209)
4.	L55605	[1]	Nut	M24
5.	AL113460	[1]	Boot
6.	AT309305	[1]	Tie Rod Assembly	(ALSO ORDER L55605) (SUB FOR AT170206 (LH))
6.	AT309306	[1]	Tie Rod Assembly	(ALSO ORDER L55605) (SUB FOR AT170208 (RH))
7.	14M7513	[1]	Lock Nut	M22
8.	........	[1]	Serial Number Plate
9.	T206432	[1]	Housing	(SUB FOR T151262 (RH))
10.	L40306	[1]	O-Ring
11.	L100141	[AR]	Washer	1.15 MM (0.0453 IN.)
11.	L100145	[AR]	Washer	1.35 MM (0.0531 IN.)
11.	L61263	[AR]	Washer	1.50 MM (0.0591 IN.)
11.	L61267	[AR]	Washer	1.70 MM (0.0669 IN.)
11.	L61271	[AR]	Washer	1.90 MM (0.0748 IN.)
11.	L61275	[AR]	Washer	2.10 MM (0.0827 IN.)
11.	T183518	[AR]	Solid Shim	2.65 MM
11.	T183519	[AR]	Solid Shim	2.70 MM
11.	T183520	[AR]	Solid Shim	2.75 MM
11.	T183521	[AR]	Solid Shim	2.80 MM
11.	T183522	[AR]	Solid Shim	2.85 MM
11.	T183523	[AR]	Solid Shim	2.90 MM
11.	T183524	[AR]	Solid Shim	2.95 MM
11.	T183525	[AR]	Solid Shim	3.00 MM
11.	T183526	[AR]	Solid Shim	3.10 MM
11.	T183527	[AR]	Solid Shim	3.35 MM
11.	T183528	[AR]	Solid Shim	3.40 MM
12.	AL79808	[2]	Bearing
13.	T151089	[1]	Housing	(LH)
14.	L114558	[2]	Bushing
15.	T151261	[15]	Cap Screw
16.	L40014	[15]	Washer	15 X 23.700 X 3 MM (0.591" X 0.933" X 0.118")
17.	L56822	[1]	Pipe Plug
18.	L110233	[2]	Seal
19.	L55580	[2]	O-Ring
20.	15M7030	[1]	Pipe Plug
