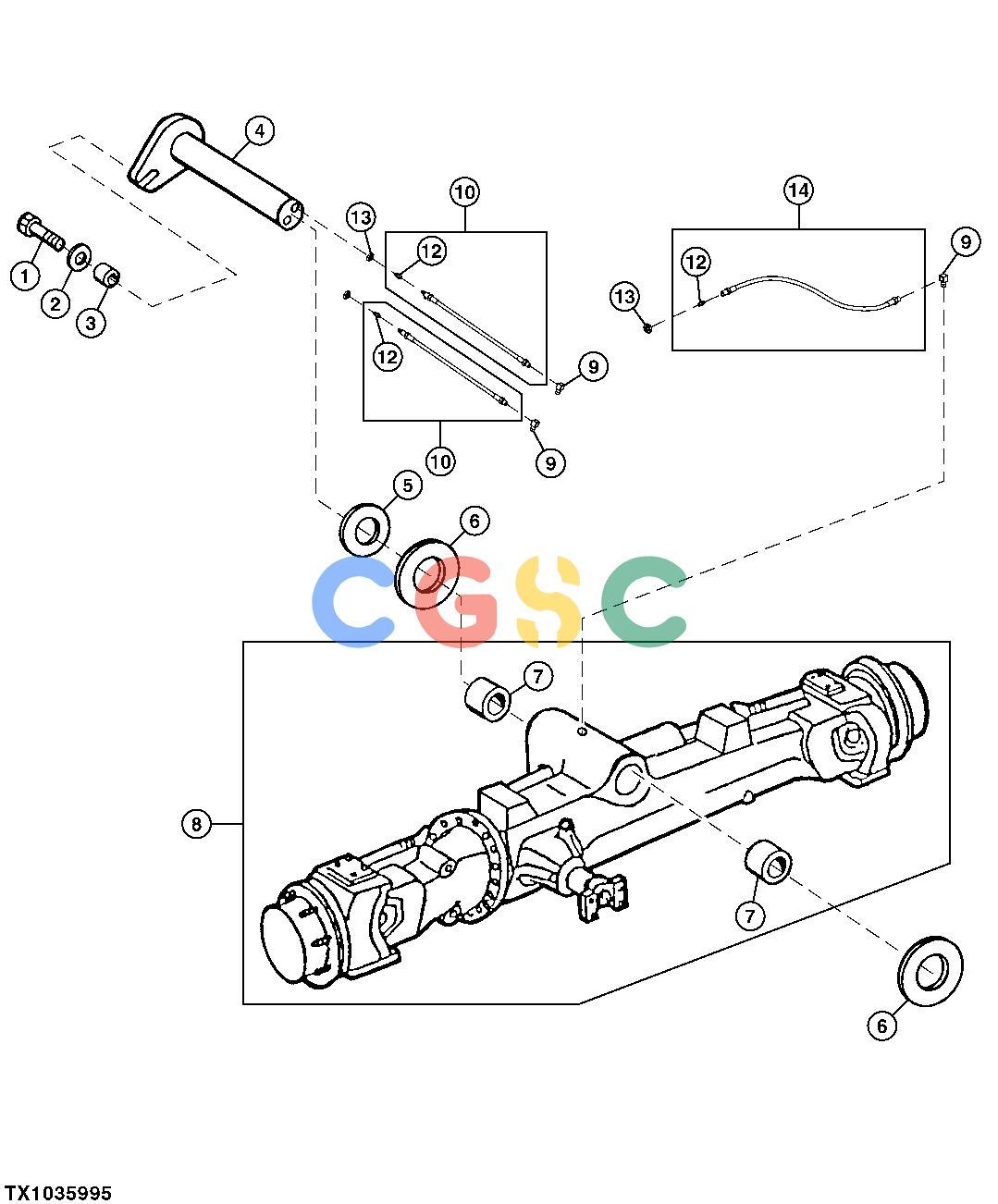

约翰迪尔零件查询410G - BACKHOE, LOADER Front Axle (w/ MFWD)EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览：次

Pos.	Part No	Qty	Parts name	Comments
1.	19M7488	[1]	Cap Screw	M16 X 40
2.	T119912	[1]	Washer
3.	T18145	[1]	Bushing
4.	AT164442	[1]	Pin
4.	AT306684	[1]	Pin
5.	R46973	[AR]	Thrust Washer	45.212 X 82.550 X 0.914 MM (1.780" X 3-1/4" X 0.036")
6.	T80027	[2]	Thrust Washer	46 X 101.600 X 3 MM (1.811" X 4" X 0.118")
7.	T140211	[2]	Bushing
8.	........	[1]	Front Axle	(AT171135 NLA) (ORDER PG200161, AT195570 AND T125615) STEERING CYLINDER PLUG NOT ILLUSTRATED
8.	........	[1]	Front Axle	(AT280333 NLA) (ORDER PG200161 AND T125615) PLUG NOT ILLUSTRATED
8.	........	[1]	Front Axle	(AT307740 NLA) (ORDER PG200161) W/O STEERING CYLINDER
8.	PG200161	[1]	Front Axle Reman	(REMAN FOR AT307740) (ALSO ORDER T125615) PLUG NOT ILLUSTRATED W/O STEERING CYLINDER
9.	JD7838	[2]	Adapter Fitting
10.	AT173254	[2]	Hydraulic Hose
12.	JD7797	[3]	Lubrication Fitting
13.	E12379	[3]	Nut
14.	AT224949	[1]	Hose
