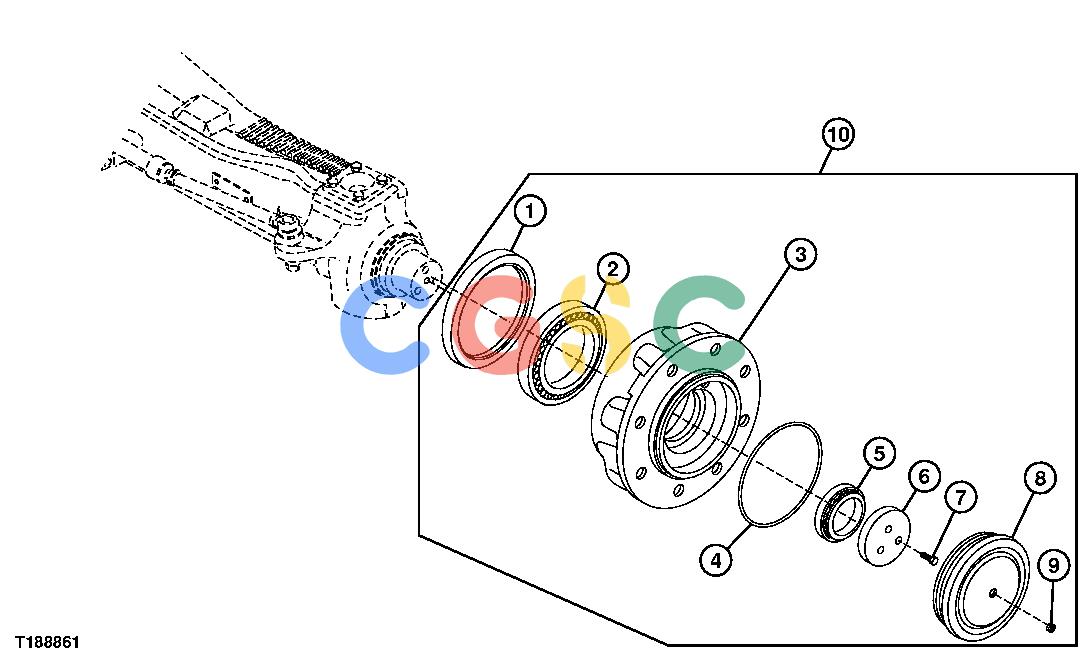

Pos. | Part No | Qty | Parts name | Comments |
---|---|---|---|---|
1. | AT280866 | [2] | Seal | |
2. | AT196169 | [2] | Bearing | |
3. | T190749 | [2] | Hub | |
4. | T188441 | [2] | O-Ring | |
5. | JD10063 | [2] | Tapered Roller Bearing | |
6. | T188442 | [2] | Ring | |
7. | 19M8011 | [6] | Cap Screw | M12 X 30 |
8. | T188448 | [2] | Cap | |
9. | R121079 | [2] | Plug | |
10. | ........ | [1] | Front Axle | ADDITIONAL COMPONENTS ON PREVIOUS PAGE (SUB AT307742) (ALSO ORDER T125615(AT196429 NLA) |
10. | ........ | [1] | Front Axle | SERVICE WITH COMPONENT PARTS (AT307742 NLA) (CA) |
