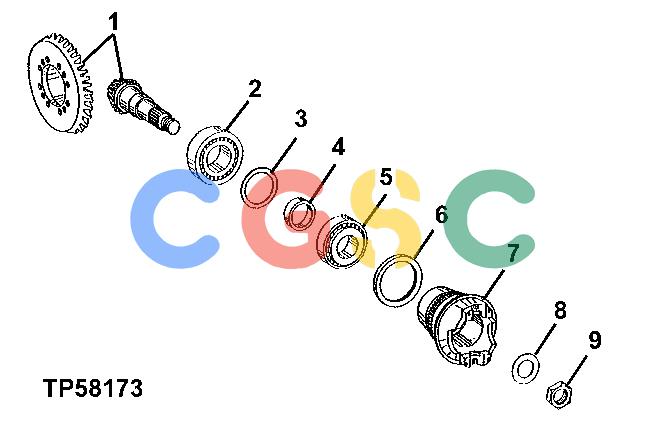

约翰迪尔零件查询410G - BACKHOE, LOADER Spiral Bevel Input Pinion and Ring Gear SetEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览：次

Pos.	Part No	Qty	Parts name	Comments
1.	AT171644	[1]	Bevel Gear Drive
2.	AT400190	[1]	Tapered Roller Bearing	SUB FOR AT176491
3.	T159310	[1]	Shim	1.2 MM
3.	T159315	[1]	Shim	1.3 MM
3.	T159314	[1]	Shim	1.4 MM
3.	T159309	[1]	Shim	1.5 MM
3.	T159313	[1]	Shim	1.6 MM
3.	T159308	[1]	Shim	1.7 MM
3.	T159311	[1]	Shim	1.9 MM
3.	T159307	[1]	Shim	2.0 MM
4.	T293101	[1]	Shim	16.40 MM
4.	T293102	[1]	Shim	16.50 MM
4.	T293103	[1]	Shim	16.56 MM
4.	T293104	[1]	Shim	16.60 MM
4.	T293105	[1]	Shim	16.62 MM
4.	T293106	[1]	Shim	16.64 MM
4.	T293108	[1]	Shim	16.68 MM
4.	T293109	[1]	Shim	16.70 MM
4.	T293110	[1]	Shim	16.72 MM
4.	T293111	[1]	Shim	16.74 MM
4.	........	[1]	Ring	16.75 MM
4.	T293112	[1]	Shim	16.76 MM
4.	T293113	[1]	Shim	16.78 MM
4.	T293114	[1]	Shim	16.80 MM
4.	T293115	[1]	Shim	16.82 MM
4.	........	[1]	Ring	16.83 MM
4.	T293116	[1]	Shim	16.84 MM
4.	T293117	[1]	Shim	16.86 MM
4.	T293118	[1]	Shim	16.88 MM
4.	........	[1]	Ring	16.89 MM
4.	T293119	[1]	Shim	16.90 MM
4.	T293120	[1]	Shim	16.92 MM
4.	T293121	[1]	Shim	16.94 MM
4.	........	[1]	Ring	16.95 MM
4.	T293123	[1]	Shim	16.98 MM
4.	........	[1]	Ring	17.01 MM
4.	T293126	[1]	Shim	17.04 MM
4.	T159339	[1]	Ring	17.07 MM
4.	T293129	[1]	Shim	17.10 MM
4.	T293134	[1]	Shim	17.20 MM
4.	T293139	[1]	Shim	17.30 MM
4.	T293140	[1]	Shim	17.40 MM
5.	AL79794	[1]	Tapered Roller Bearing
6.	AT179537	[1]	Seal
7.	T158438	[1]	Universal Joint Yoke
7.	T188240	[1]	Universal Joint Yoke
8.	T159316	[1]	Washer
9.	T228709	[1]	Nut	SUB FOR T159317
