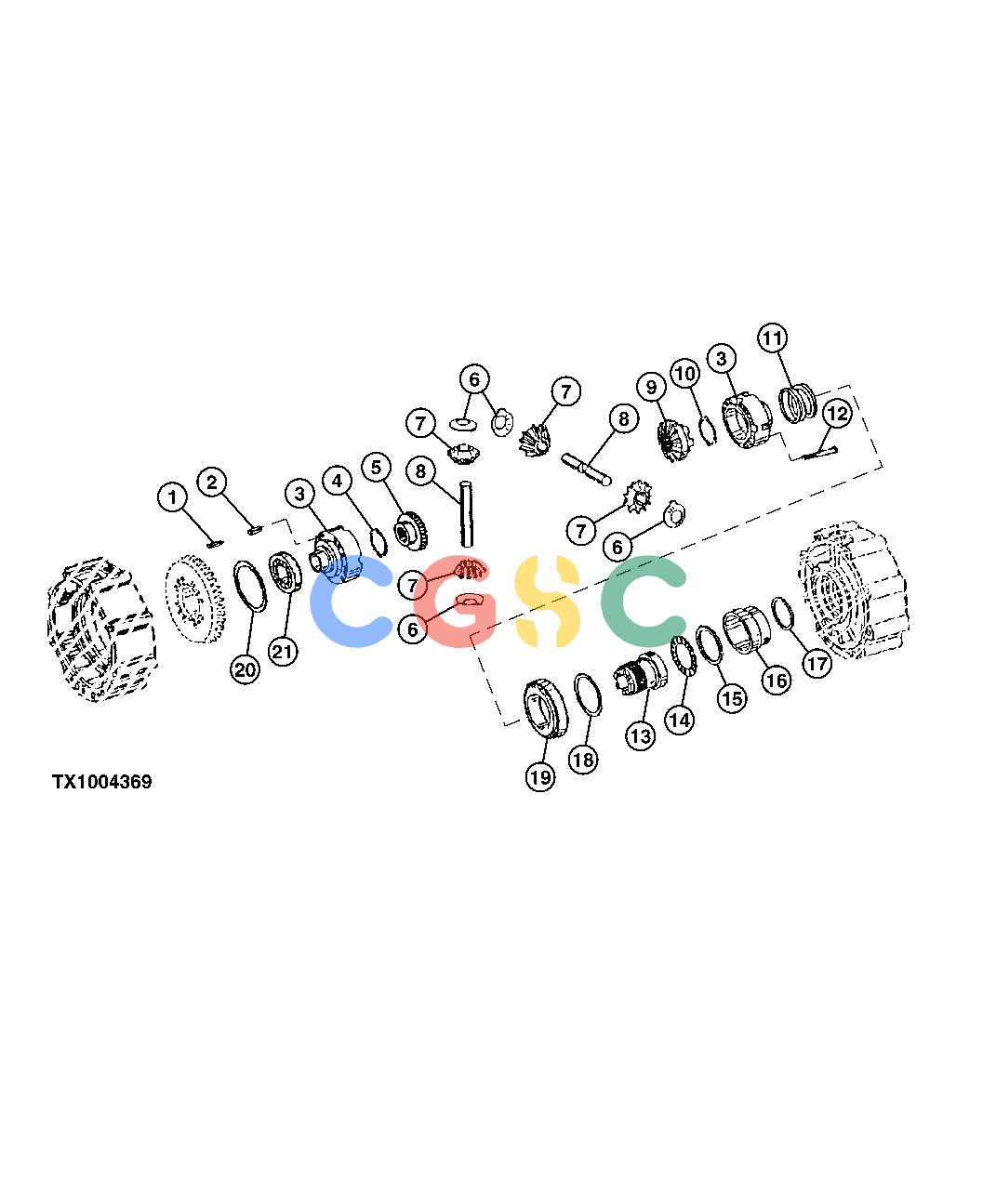

约翰迪尔零件查询410G - BACKHOE, LOADER Differential Assembly w/ LockEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览：次

Pos.	Part No	Qty	Parts name	Comments
1.	T159359	[4]	Spring Pin
2.	T159358	[4]	Spring Pin
3.	........	[1]	Differential	((LH), (RH)) (AT186312 NLA(SUB AT338798)
3.	AT338798	[1]	Differential	((LH), (RH))
4.	T163374	[1]	Thrust Washer	RING GEAR SIDE
5.	T159348	[1]	Bevel Gear
6.	T210077	[4]	Thrust Washer	(SUB FOR T159351)
7.	T239653	[4]	Bevel Gear	(SUB FOR T159350)
8.	T210078	[2]	Pinion Shaft	(SUB FOR T164431)
9.	T163810	[1]	Bevel Gear
10.	T163375	[1]	Thrust Washer	DIFFERENTIAL LOCK SIDE
11.	T159341	[1]	Spring
12.	19M8771	[12]	Cap Screw	M14 X 120
13.	T166336	[1]	Shift Collar
14.	AT179498	[1]	Needle Bearing
15.	T159344	[1]	Seal
16.	T159343	[1]	Piston
17.	T159346	[1]	Seal
18.	T159444	[1]	Shim	0.1 MM
18.	T159445	[1]	Shim	0.15 MM
18.	T159443	[1]	Shim	0.2 MM
18.	T159440	[1]	Shim	0.3 MM
18.	T159441	[1]	Shim	0.5 MM
18.	T159442	[1]	Shim	1.0 MM
18.	T159446	[1]	Shim	1.1 MM
18.	T159447	[1]	Shim	1.2 MM
18.	T159448	[1]	Shim	1.3 MM
18.	T159449	[1]	Shim	1.4 MM
18.	T159450	[1]	Shim	1.5 MM
18.	T159451	[1]	Shim	1.6 MM
18.	T159452	[1]	Shim	1.7 MM
18.	T159453	[1]	Shim	1.8 MM
18.	T159457	[1]	Shim	2.8 MM
18.	T159459	[1]	Shim	3.0 MM
18.	T159461	[1]	Shim	3.2 MM
18.	T159463	[1]	Shim	3.4 MM
19.	AT179504	[1]	Tapered Roller Bearing	(LH)
20.	T161247	[1]	Shim	0.20 MM
20.	T161246	[1]	Shim	0.30 MM
20.	T161245	[1]	Shim	0.40 MM
20.	T161244	[1]	Shim	0.50 MM
20.	T161243	[1]	Shim	0.70 MM
20.	T161242	[1]	Shim	0.75 MM
20.	T161241	[1]	Shim	0.80 MM
20.	T161240	[1]	Shim	0.85 MM
20.	T161239	[1]	Shim	0.90 MM
20.	T161238	[1]	Shim	0.95 MM
21.	AT179505	[1]	Tapered Roller Bearing	(RH)
