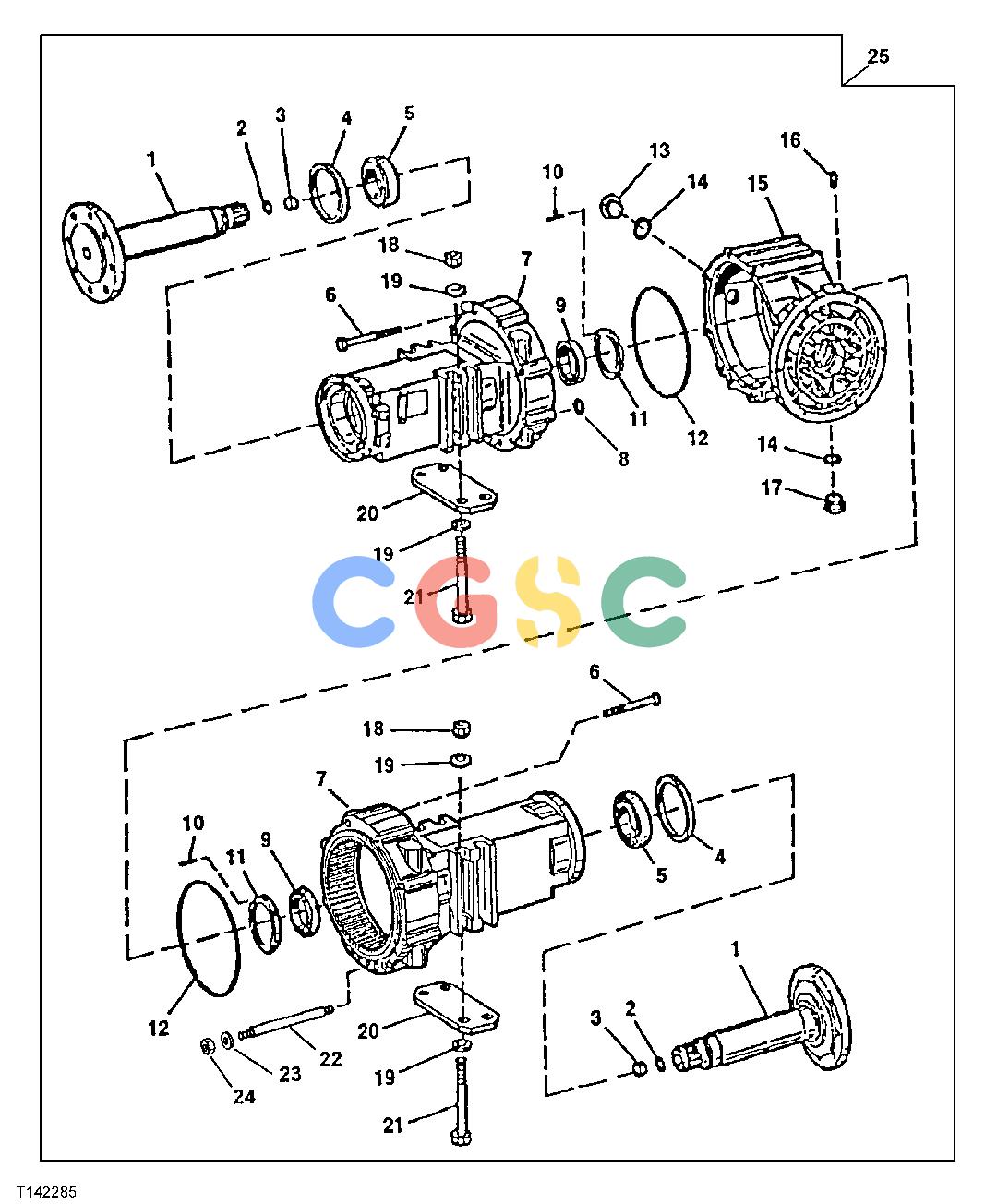

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | T154951 | [2] | Shaft | |
| 2. | R75384 | [AR] | Shim | .3 MM |
| 2. | R75383 | [AR] | Shim | .5 MM |
| 2. | R75382 | [AR] | Solid Shim | 1.0 MM |
| 2. | T183496 | [AR] | Solid Shim | 2.0 MM |
| 2. | R75385 | [AR] | Solid Shim | 3.0 MM |
| 3. | R79132 | [2] | Pin | |
| 4. | AT179502 | [2] | Seal | |
| 5. | AT179500 | [2] | Tapered Roller Bearing | |
| 6. | 19M7677 | [16] | Cap Screw | M16 X 240 |
| 7. | AT179499 | [2] | Housing | |
| 8. | T159373 | [2] | O-Ring | |
| 9. | AT179501 | [2] | Tapered Roller Bearing | |
| 10. | T164844 | [2] | Groove Pin | (SUB FOR AT186927 ALSO ORDER T184401) |
| 11. | T185444 | [2] | Nut | (SUB FOR T159371) |
| 12. | T159362 | [2] | O-Ring | |
| 13. | 15M7030 | [1] | Pipe Plug | |
| 14. | Z77164 | [2] | O-Ring | (SUB FOR L55580) |
| 15. | T164998 | [1] | Housing | (TO DETERMINE REAR AXLE, USE FIRST SIX NUMBERS FROM THE ORIGINAL REAR AXLE SERIAL NUMBER) |
| 15. | T188279 | [1] | Housing | (TO DETERMINE REAR AXLE, USE FIRST SIX NUMBERS FROM THE ORIGINAL REAR AXLE SERIAL NUMBER) |
| 16. | AL32877 | [1] | Vent | BREATHER |
| 17. | L56822 | [1] | Pipe Plug | |
| 18. | 14M7315 | [8] | Nut | M20 |
| 19. | N231749 | [16] | Washer | |
| 20. | T147269 | [2] | Plate | |
| 21. | 19M8001 | [8] | Cap Screw | M20 X 260 |
| 22. | T159388 | [4] | Stud | |
| 23. | T159386 | [4] | Washer | |
| 24. | T159389 | [4] | Nut | |
| 25. | ........ | [1] | Rear Axle | (TO DETERMINE REAR AXLE, USE FIRST SIX NUMBERS FROM THE ORIGINAL REAR AXLE SERIAL NUMBER) ALSO INCLUDES PLANETARY PINION CARRIER, RING GEAR ASSEMBLY, DIFFERENTIAL ASSEMBLY WITH LOCK, SERVICE BRAKE, PARK BRAKE AND INPUT YOKE (CA) (AT192628 NLA) (SUB A |
| 25. | ........ | [1] | Rear Axle | (TO DETERMINE REAR AXLE, USE FIRST SIX NUMBERS FROM THE ORIGINAL REAR AXLE SERIAL NUMBER) ALSO INCLUDES PLANETARY PINION CARRIER, RING GEAR ASSEMBLY, DIFFERENTIAL ASSEMBLY WITH LOCK, SERVICE BRAKE, PARK BRAKE AND INPUT YOKE (CA) (AT195908 NLA) (SUB A |
| 25. | AT330526 | [1] | Rear Axle Reman | (TO DETERMINE REAR AXLE, USE FIRST SIX NUMBERS FROM THE ORIGINAL REAR AXLE SERIAL NUMBER) (MARKED AT192628) ALSO INCLUDES PLANETARY PINION CARRIER, RING GEAR ASSEMBLY, DIFFERENTIAL ASSEMBLY WITH LOCK, SERVICE BRAKE, PARK BRAKE AND INPUT YOKE |
| 25. | AT312680 | [1] | Rear Axle | (TO DETERMINE REAR AXLE, USE FIRST SIX NUMBERS FROM THE ORIGINAL REAR AXLE SERIAL NUMBER) NLA (ORDER AT330527) |
| 25. | AT330527 | [1] | Rear Axle Reman | (TO DETERMINE REAR AXLE, USE FIRST SIX NUMBERS FROM THE ORIGINAL REAR AXLE SERIAL NUMBER) (REMAN FOR AT312680) |
