约翰迪尔零件查询410E - BACKHOE, LOADER Ride ControlEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览：次

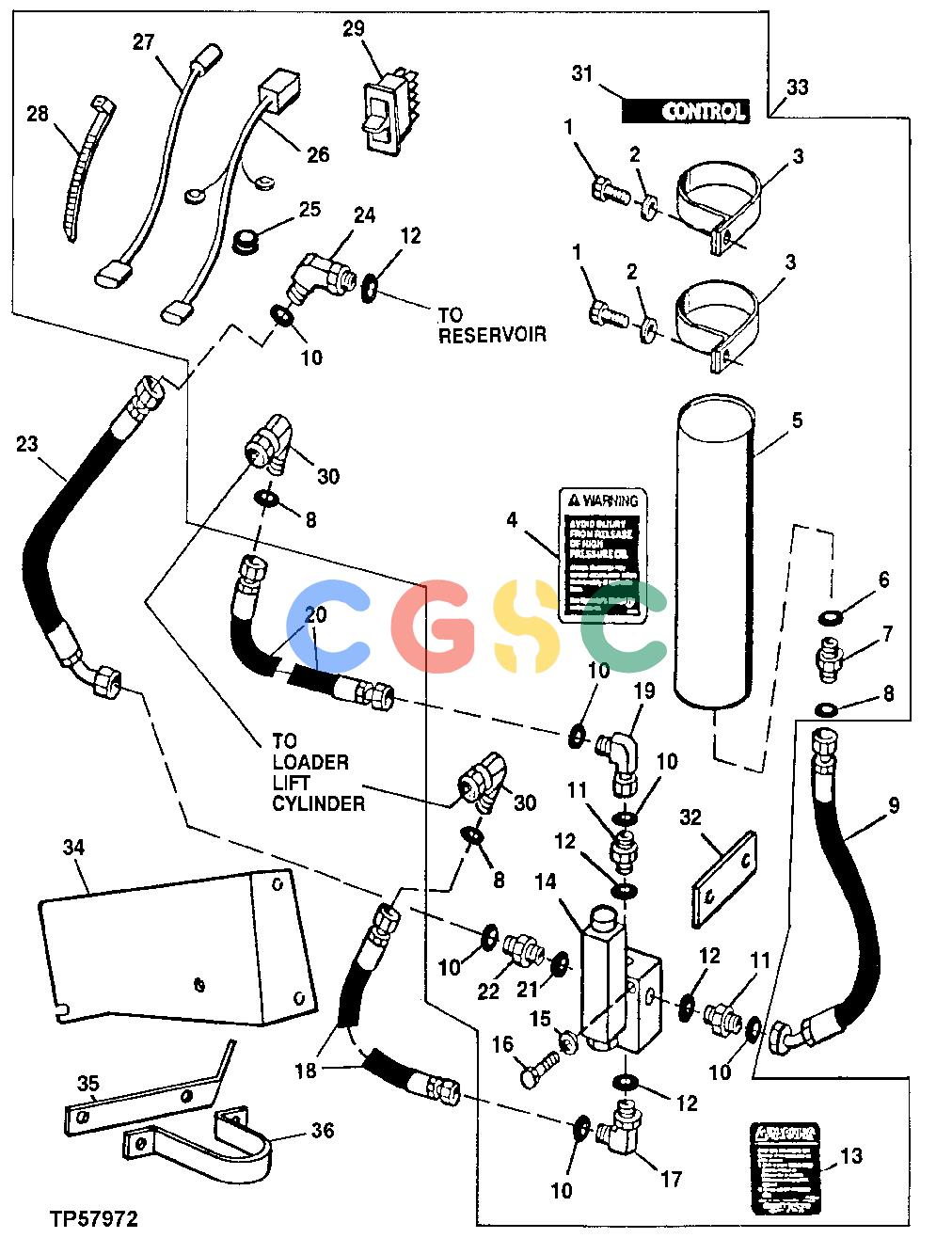

Pos.	Part No	Qty	Parts name	Comments
1.	19M7402	[2]	Cap Screw	M10 X 25
2.	24M7239	[2]	Washer	10.700 X 21 X 2.500 MM
3.	T163841	[2]	Clamp
4.	T225374	[2]	Label	(SUB FOR T164124, THIS APPLICATION)
5.	........	[1]	Accumulator	(AT183594 NLA) (SUB AT188819) (ALSO ORDER 38H1161 AND R29936)
5.	AT188819	[1]	Pneumatic Accumulator
5.	AT161527	[1]	Seal Kit	NOT ILLUSTRATED
5.	AT161528	[1]	Hyd Actuated Control Valve	NOT ILLUSTRATED
5.	T146481	[1]	Cap	NOT ILLUSTRATED
6.	R29936	[1]	O-Ring
7.	38H1176	[1]	Adapter Fitting
7.	38H1161	[1]	Adapter Fitting
8.	T77932	[3]	O-Ring
9.	AT183613	[1]	Hydraulic Hose - Fabricate	13/16" X 590 MM (23-1/4") X 13/16"
10.	T77857	[6]	O-Ring
11.	38H1161	[2]	Adapter Fitting
12.	R26375	[4]	O-Ring
13.	T146792	[1]	Safety Sign
14.	AT191176	[1]	Elec.Proportional Valve	(SUB FOR AT182941)
14.	19H3070	[4]	Screw	0.190" X 1-1/4"
14.	AT184161	[1]	Electrical Coil
14.	N203255	[1]	Nut
14.	AT172179	[1]	Seal Kit
15.	24M7238	[2]	Washer	8.700 X 17 X 2 MM
16.	19M8402	[2]	Cap Screw	M8 X 65
17.	38H1005	[1]	Elbow Fitting
18.	AT183184	[1]	Hydraulic Hose - Fabricate	13/16" X 635 MM (25") X 1"
19.	38H1095	[1]	Elbow Fitting
20.	AT183184	[1]	Hydraulic Hose - Fabricate	13/16" X 635 MM (25") X 1"
21.	R26448	[1]	O-Ring
22.	38H1173	[1]	Adapter Fitting
23.	AT183183	[1]	Hydraulic Hose - Fabricate
24.	38H1046	[1]	Elbow Fitting
25.	T164567	[1]	Grommet
26.	AT183590	[1]	Wiring Harness
27.	AT183099	[1]	Wiring Harness
28.	R44302	[9]	Tie Band
29.	AT184335	[1]	Switch	(SUB FOR AT183591)
30.	38H1032	[2]	Tee Fitting
31.	T164302	[1]	Label
32.	T163596	[1]	Strap
33.	AT189053	[1]	Control	(HYDRAULIC HOSES ARE NOT INCLUDED IN KIT) (SUB FOR AT183208 AND AT185774)
34.	T163436	[1]	Bracket
35.	T163586	[1]	Bracket
36.	T163610	[1]	Clamp
