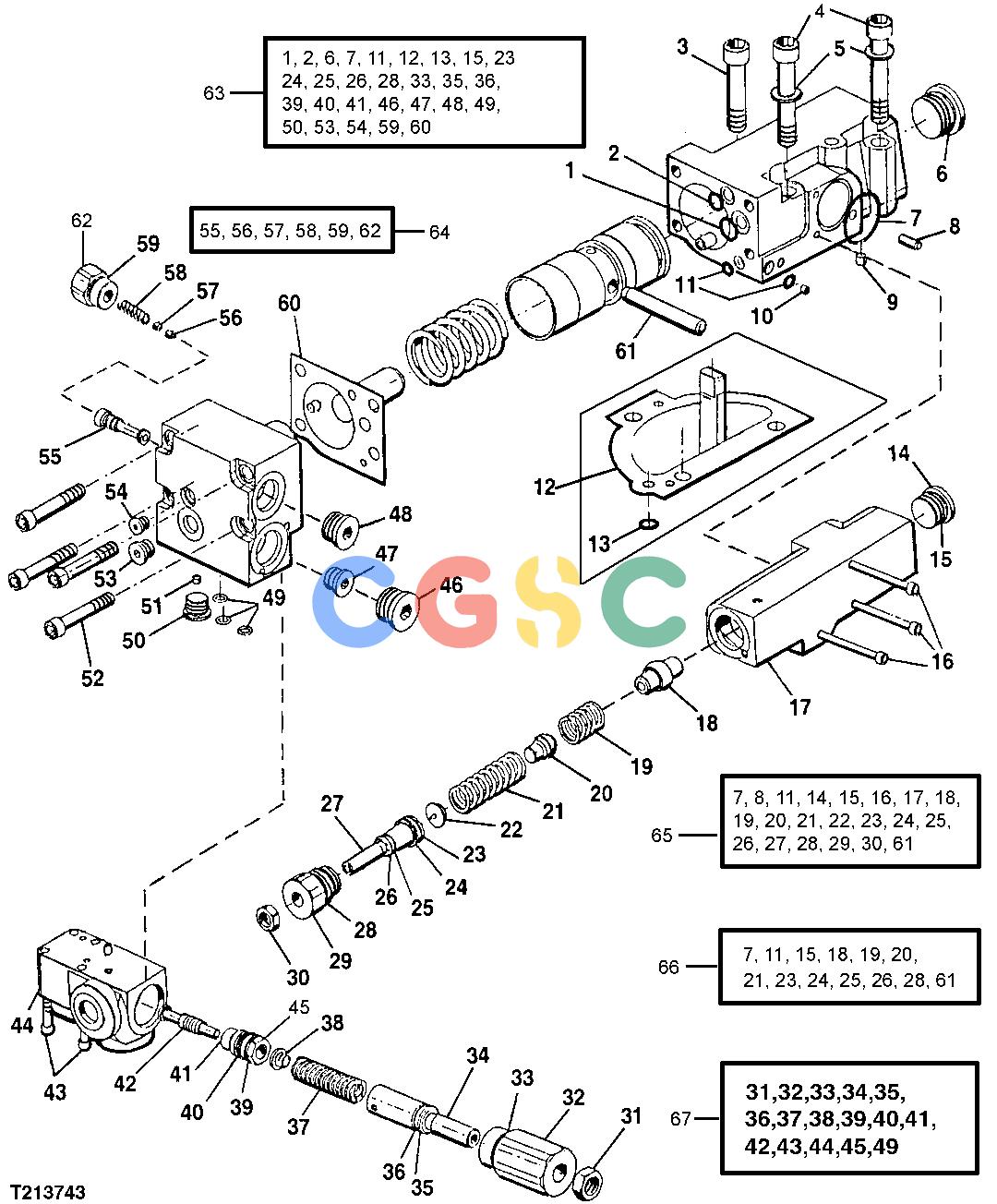

约翰迪尔零件查询410E - BACKHOE, LOADER Main Hydraulic Pump Repair KitEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览：次

Pos. Part No Qty Parts name Comments
1. T40308 [1]   O-Ring      (A)
2. T166274 [1]   O-Ring      (A)
3. 19H3806 [1]   Screw
4. 19H3805 [2]   Screw
5. T166395 [2]   Washer
6. T118681 [1]   O-Ring      (A)
7. T166278 [1]   O-Ring      (A) (C) (D)
8. ........ [1]   Spring Pin      (C)
9. T166404 [1]   Orifice
10. ........ [1]   Orifice
11. T166275 [2]   O-Ring      (A) (C) (D)
12. T166279 [1]   Gasket      (A) KIT
13. ........ [1]   O-Ring      (A)
14. ........ [1]   Plug      (C)
15. R47151 [1]   O-Ring      (A) (C) (D)
16. 19H3245 [3]   Screw      (C) 0.190" X 2"
17. ........ [1]   Housing      (C)
18. ........ [1]   Piston      (C) (D)
19. ........ [1]   Spring      (C) (D)
20. ........ [1]   Poppet      (C) (D)
21. ........ [1]   Spring      (C) (D)
22. ........ [1]   Poppet      (C)
23. T166276 [1]   Back-Up Ring      (A) (C) (D)
24. AT108777 [1]   O-Ring      (A) (C) (D)
25. T166277 [1]   Back-Up Ring      (A) (C) (D)
26. Z53159 [1]   O-Ring      (A) (C) (D)
27. ........ [1]   Screw      (C)
28. R47151 [1]   O-Ring      (A) (C) (D)
29. ........ [1]   Plug      (C)
30. ........ [1]   Nut      (C)
31. ........ [1]   Nut      (E)
32. ........ [1]   Cap      (E)
33. T118681 [1]   O-Ring      (A) (E)
34. ........ [1]   Sleeve      (E)
35. AT108777 [1]   O-Ring      (A) (E)
36. T166276 [1]   O-Ring      (A) (E)
37. ........ [1]   Spring      (E)
38. ........ [1]   Guide      (E)
39. T166276 [1]   Back-Up Ring      (A) (E)
40. AT108777 [1]   O-Ring      (A) (E)
41. T70177 [1]   O-Ring      (A) (E)
42. ........ [1]   Spool      (E)
43. 19H3464 [4]   Screw      (E) 0.190" X 1-1/2"
44. ........ [1]   Module      (E)
45. ........ [1]   Seat      (E)
46. R47151 [1]   O-Ring      (A)
47. T70177 [1]   O-Ring      (A)
48. R47150 [1]   O-Ring      (A)
49. T166275 [3]   O-Ring      (A) (E)
50. T70177 [1]   O-Ring      (A)
51. T166400 [1]   Orifice
52. M507T [4]   Bolt      7.925 X 63.500 MM (5/16" X 2-1/2")
53. T118689 [1]   O-Ring      (A)
54. T166273 [1]   O-Ring      (A)
55. ........ [1]   Spool      (B)
56. ........ [1]   Orifice      (B)
57. ........ [1]   Orifice      (B)
58. ........ [1]   Spring      (B)
59. R47150 [1]   O-Ring      (A) (B)
60. T166280 [1]   Gasket      (A)
61. ........ [1]   Pin      (C) (D)
62. ........ [1]   Plug      (B)
63. ........ [1]   Seal Kit      (INCLUDES ALL (A) PARTS (SEAL/PUMP CONTROL) (SUB AT197405 (AT178678 NLA))
64. AT186257 [1]   Spool Kit      (INCLUDES ALL (B) PARTS (4-WAY))
65. AT197405 [1]   Control Kit      (INCLUDES ALL (C) PARTS (HP LIMITER)) (SUB FOR AT186255)
66. AT186256 [1]   Kit      (INCLUDES ALL (D) PARTS (HP LIMITER))
67. AT178680 [1]   Kit      (INCLUDES ALL (E) PARTS (LS MODULE))
