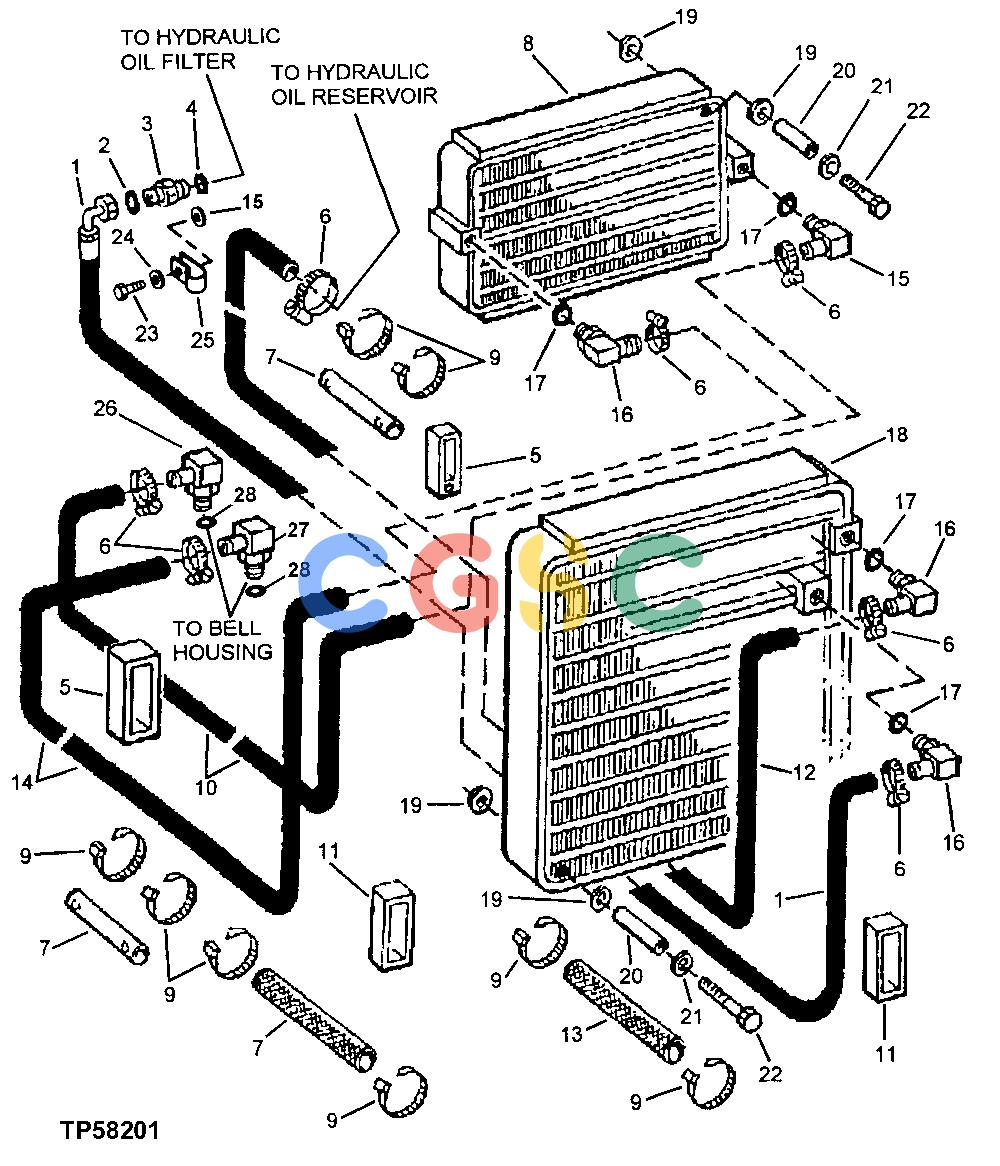

约翰迪尔零件查询410E - BACKHOE, LOADER Transmission and Hydraulic Oil CoolerEPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询410E - BACKHOE, LOADER Transmission and Hydraulic Oil CoolerEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览：次

Pos.	Part No	Qty	Parts name	Comments
1.	AT175375	[1]	Hydraulic Hose	30.1752" X 3048 MM (120") X 30.1752"
2.	T77858	[1]	O-Ring	18.771 X 1.778 MM (0.739" X 0.070")
3.	38H1163	[1]	Adapter Fitting
4.	U12547	[1]	O-Ring	23.470 X 2.946 MM (0.924" X 0.116")
5.	T158476	[2]	Grommet
6.	RE65978	[7]	Clamp
7.	T161464	[2]	Sleeve	(POLYURETHANE)
8.	AT178693	[1]	Oil Cooler	TRANSMISSION
9.	R44302	[2]	Tie Band	(POLY SLEEVE)
9.	H77698	[4]	Tie Band
10.	........	[1]	Hose	12 FT. (MAKE FROM T78497 BULK MATERIAL, CTL)
11.	T158477	[2]	Grommet
12.	........	[1]	Hose	11.25FT. (MAKE FROM T78497 BULK MATERIAL, CTL)
13.	T161463	[2]	Hose Guard	FABRIC
14.	........	[1]	Hose	11.5FT. (MAKE FROM T78497 BULK MATERIAL, CTL)
15.	28H3381	[1]	Spacer	0.493" X 0.675" X 5/8"
16.	AH64349	[4]	Hose Fitting
17.	R26906	[4]	O-Ring	19.177 X 2.464 MM (0.755" X 0.097")
18.	AT177204	[1]	Oil Cooler	HYDRAULIC
19.	T158424	[16]	Washer	15.240 X 32 X 6.350 MM (0.600" X 1.260" X 1/4")
20.	N117290	[8]	Spacer	10.338 X 15.875 X 83.820 MM (0.407" X 5/8" X 3.300")
21.	24M7101	[8]	Washer	11 X 34 X 3 MM
22.	19M8093	[8]	Cap Screw	M10 X 100
23.	19M7572	[1]	Cap Screw	M10 X 45
24.	24M7239	[2]	Washer	10.700 X 21 X 2.500 MM
25.	R46667	[1]	Clamp
26.	AT193927	[1]	Hose Fitting	(SYNCHRO-SHUTTLE) (LH) (SUB FOR AT118619, THIS APPLICATION)
26.	AH64349	[1]	Hose Fitting	POWER SHIFT (LH)
27.	AT193927	[1]	Hose Fitting	(SYNCHRO-SHUTTLE) (RH) (SUB FOR AT118619, THIS APPLICATION)
27.	AH64349	[1]	Hose Fitting	POWER SHIFT (RH)
27.	AT186236	[1]	Elbow Fitting	(SYNCHRO-SHUTTLE) (RH)
27.	AT186237	[1]	Tee Fitting	POWER SHIFT (RH)
28.	R26375	[2]	O-Ring	(SYNCHRO-SHUTTLE)
28.	R26906	[2]	O-Ring	19.177 X 2.464 MM (0.755" X 0.097") POWER SHIFT
