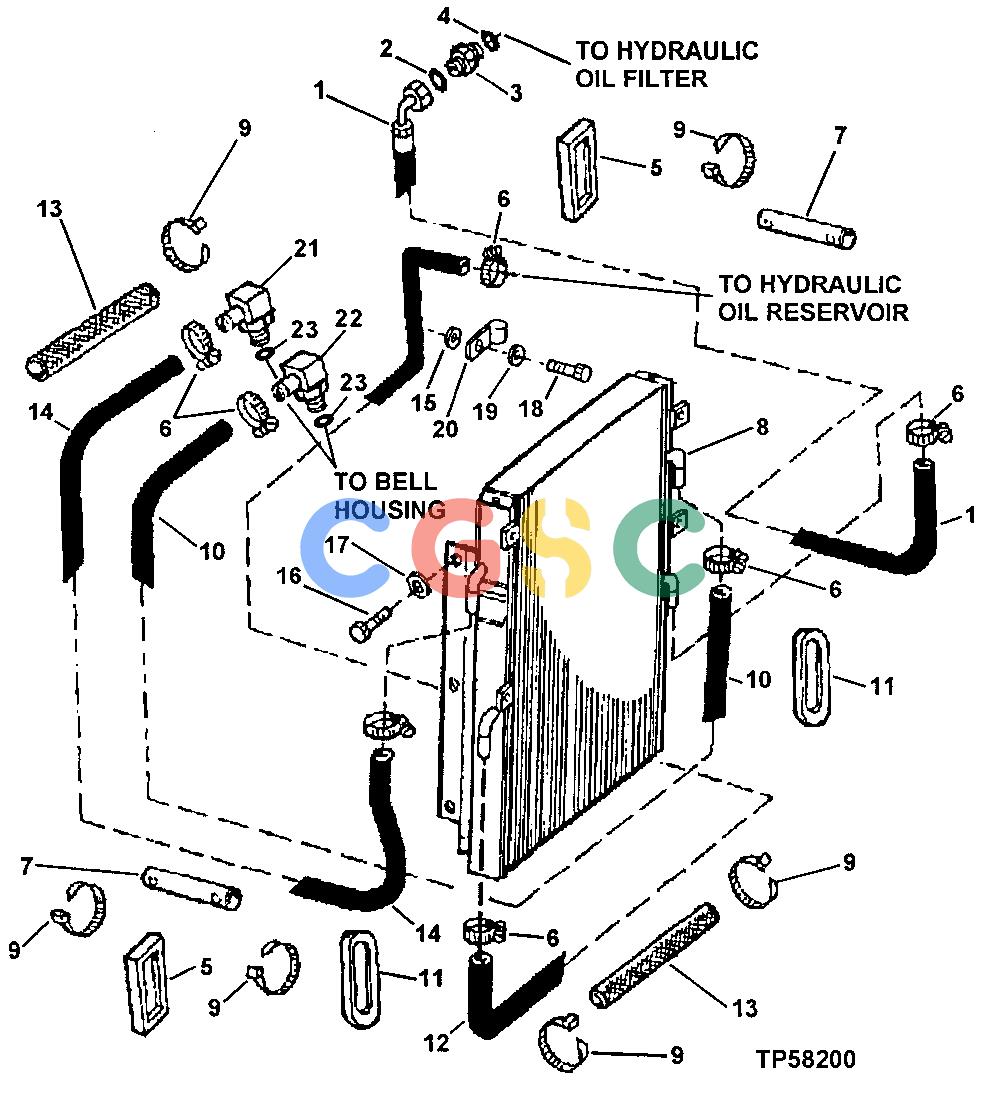

约翰迪尔零件查询410E - BACKHOE, LOADER Hydraulic Oil Cooler and HosesEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览：次

Pos.	Part No	Qty	Parts name	Comments
1.	AT175375	[1]	Hydraulic Hose	30.1752" X 3048 MM (120") X 30.1752"
2.	T77858	[1]	O-Ring
3.	38H1163	[1]	Adapter Fitting
4.	U12547	[1]	O-Ring	23.470 X 2.946 MM (0.924" X 0.116")
5.	T158476	[2]	Grommet
6.	RE65978	[7]	Clamp
7.	T161464	[2]	Sleeve	(POLYURETHANE)
8.	AT186949	[1]	Oil Cooler	(SUB FOR AT177706, THIS APPLICATION) HYDRAULIC
9.	R44302	[2]	Tie Band	(POLY SLEEVE)
9.	H77698	[4]	Tie Band
10.	........	[1]	Hose	11.2FT (MAKE FROM T78497 BULK MATERIAL, CTL)
11.	T158477	[2]	Grommet
12.	........	[1]	Hose	11.25FT (MAKE FROM T78497 BULK MATERIAL, CTL)
13.	T161463	[2]	Hose Guard	FABRIC
14.	........	[1]	Hose	10.5FT. (MAKE FROM T78497 BULK MATERIAL, CTL)
15.	28H3381	[1]	Spacer	0.493" X 0.675" X 5/8"
16.	19M7938	[6]	Cap Screw	M10 X 20
17.	24M7239	[6]	Washer	10.700 X 21 X 2.500 MM
18.	19M7572	[1]	Cap Screw	M10 X 45
19.	24M7239	[2]	Washer	10.700 X 21 X 2.500 MM
20.	R46667	[1]	Clamp
21.	AT193927	[1]	Hose Fitting	SYNCHRO-SHUTTLE (LH) (SUB FOR AT118619, THIS APPLICATION)
21.	AH64349	[1]	Hose Fitting	(LH) POWER SHIFT
22.	AT193927	[1]	Hose Fitting	SYNCHRO-SHUTTLE (RH) (SUB FOR AT118619, THIS APPLICATION)
22.	AH64349	[1]	Hose Fitting	POWER SHIFT (RH)
22.	AT186236	[1]	Elbow Fitting	SYNCHRO-SHUTTLE (RH)
22.	AT186237	[1]	Tee Fitting	POWER SHIFT (RH)
23.	R26375	[2]	O-Ring	SYNCHRO-SHUTTLE
23.	R26906	[2]	O-Ring	POWER SHIFT
