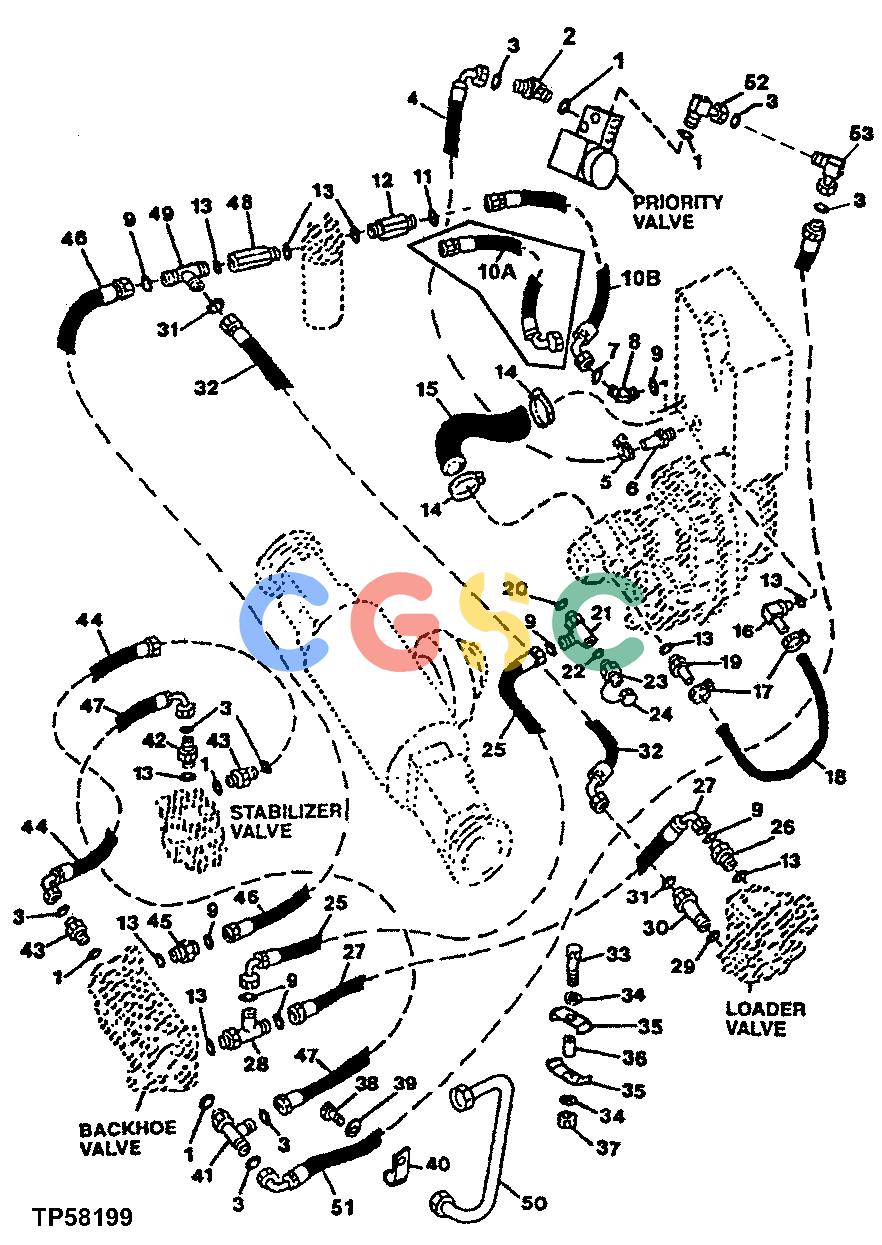

约翰迪尔零件查询410E - BACKHOE, LOADER Main Hydraulic SystemEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览：次

Pos. Part No Qty Parts name Comments
1. R26375 [5]   O-Ring
2. 38H1046 [1]   Elbow Fitting      (SUB FOR 38H1161, THIS APPLICATION)
3. T77857 [7]   O-Ring
4. AT172319 [1]   Hydraulic Hose - Fabricate      13/16" X 800 MM (31-1/2") X 13/16"
5. RE32361 [1]   Hose Clamp
6. T38282 [1]   Hose Fitting
7. R29936 [1]   O-Ring
8. 38H1049 [1]   Elbow Fitting
9. T76938 [7]   O-Ring
10A. AT171840 [1]   Hydraulic Hose - Fabricate      42.8752" X 628 MM (24-3/4") X 36.5252"
10B. AT184288 [1]   Hydraulic Hose - Fabricate      36.5252" X 605 MM (23-3/4") X 42.8752"
11. T78612 [1]   O-Ring
12. AT178335 [1]   Check Valve
13. R29936 [9]   O-Ring
14. TY22487 [2]   Hose Clamp      (SUB FOR AR85328)
15. AT176145 [1]   Suction Hose
15. AT184137 [1]   Suction Hose
16. AH75162 [1]   Fitting
17. AH105968 [2]   Hose Clamp
18. T155044 [1]   Hydraulic Hose - Fabricate
19. T29747 [1]   Hose Fitting
20. U13639 [1]   O-Ring
21. AT178356 [1]   Tee Fitting
22. R26448 [1]   O-Ring
23. AH125760 [1]   Hyd. Quick-Connect Coupler
24. R77175 [1]   Cover
25. AT171834 [1]   Hydraulic Hose - Fabricate      36.5252" X 1162 MM (45-3/4") X 36.5252"
26. 38H1164 [1]   Adapter Fitting
27. AT171832 [1]   Hydraulic Hose      36.5252" X 1435 MM (56-1/2") X 36.5252"
28. 38H1027 [1]   Tee Fitting
29. U17409 [1]   O-Ring
30. AT177762 [1]   Adapter Fitting
31. T77858 [2]   O-Ring
32. AT171704 [1]   Hydraulic Hose - Fabricate      30.1752" X 1016 MM (40") X 30.1752"
33. 19M7753 [1]   Cap Screw      M12 X 70
34. 24M7240 [2]   Washer      13 X 25 X 3 MM
35. T118329 [2]   Clamp
36. R115968 [1]   Spacer
37. 14M7275 [1]   Nut      M12
38. 19M8081 [2]   Cap Screw      M10 X 80
39. 24M7239 [2]   Washer      10.700 X 21 X 2.500 MM
40. T78787 [2]   Clamp
41. 38H1024 [1]   Tee Fitting
42. 38H1176 [1]   Adapter Fitting
43. 38H1161 [2]   Adapter Fitting
44. AT171838 [1]   Hydraulic Hose - Fabricate      13/16" X 508 MM (20") X 13/16" (SUB FOR AT176122)
45. 38H1164 [1]   Adapter Fitting
46. AT171839 [1]   Hydraulic Hose - Fabricate      36.5252" X 679 MM (26-3/4") X 36.5252"
47. AT171838 [1]   Hydraulic Hose - Fabricate      13/16" X 508 MM (20") X 13/16"
48. AT173220 [1]   Check Valve
49. 38H1410 [1]   Tee Fitting
50. AT182187 [1]   Oil Line      (USED WHEN ADDING A 7TH SECTION TO THE BACKHOE VALVE STACK)
51. AT178322 [1]   Hydraulic Hose      (NOISE ATTENUATOR HOSE)
52. 38H1005 [1]   Elbow Fitting
53. 38H1095 [1]   Elbow Fitting
