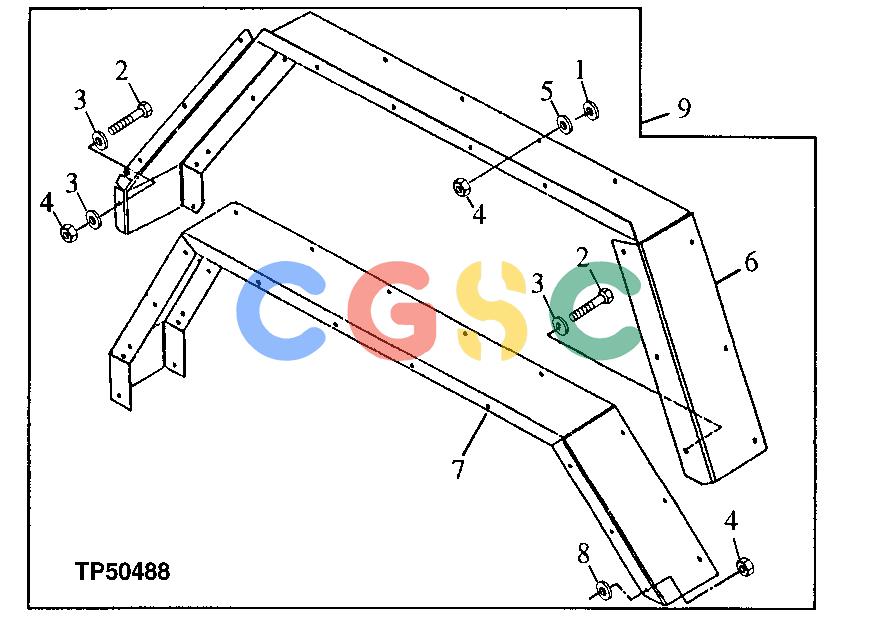

Pos. | Part No | Qty | Parts name | Comments |
---|---|---|---|---|
1. | 24H1682 | [8] | Washer | 13/32" X 7/8" X 0.120" |
2. | 19M7933 | [24] | Cap Screw | M6 X 25 |
3. | 24H1287 | [25] | Washer | 9/32" X 5/8" X 0.065" |
4. | 14M7165 | [25] | Lock Nut | M6 |
5. | 24H1305 | [8] | Washer | 13/32" X 13/16" X 0.065" |
6. | ........ | [1] | Extension | |
7. | ........ | [1] | Extension | |
8. | 24H1305 | [16] | Washer | 13/32" X 13/16" X 0.065" |
9. | AT161376 | [1] | Fender | (EXTENSIONS) |
