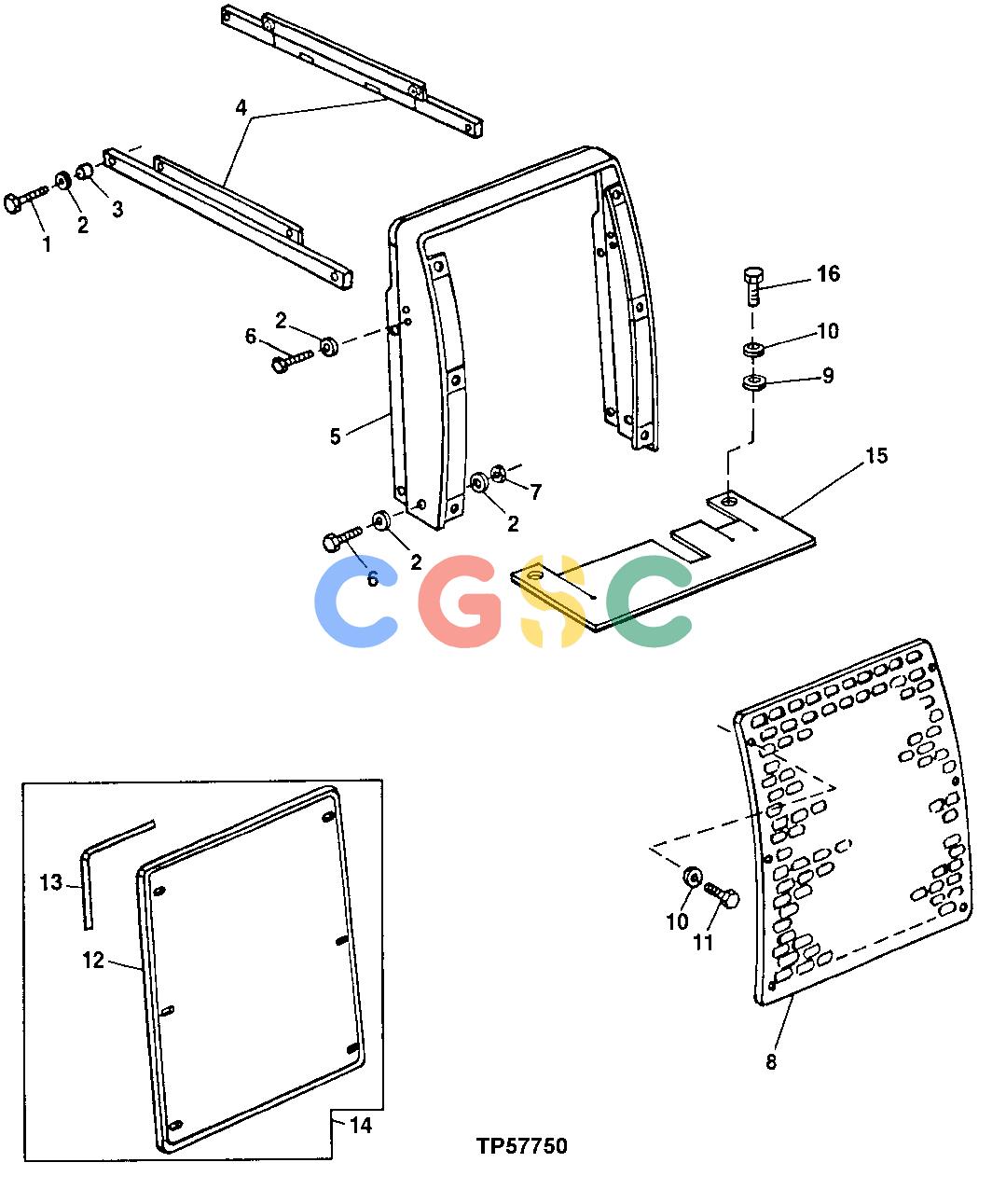

约翰迪尔零件查询410E - BACKHOE, LOADER Grille and Grille HousingEPC John Deere online
广数供应链运营团队, 16 02月, 2025,浏览:次
Pos. |
Part No |
Qty |
Parts name |
Comments |
1. |
19M7363
|
[2] |
Cap Screw
|
|
2. |
T29342
|
[8] |
Washer
|
|
3. |
T159930
|
[2] |
Spacer
|
|
4. |
AT177245
|
[2] |
Grille
|
|
5. |
AT178477
|
[1] |
Frame
|
|
6. |
19M7493
|
[4] |
Cap Screw
|
|
7. |
14M7275
|
[2] |
Nut
|
|
8. |
T160691
|
[1] |
Screen
|
|
9. |
24H1304
|
[2] |
Washer
|
|
10. |
24M7296
|
[8] |
Washer
|
|
11. |
19M7550
|
[6] |
Cap Screw
|
|
12. |
AT178611
|
[1] |
Screen
|
|
13. |
........
|
[1] |
Molding
|
|
14. |
........
|
[1] |
Screen
|
|
15. |
T161650
|
[1] |
Deflector
|
|
16. |
19M8600
|
[2] |
Cap Screw
|
|
