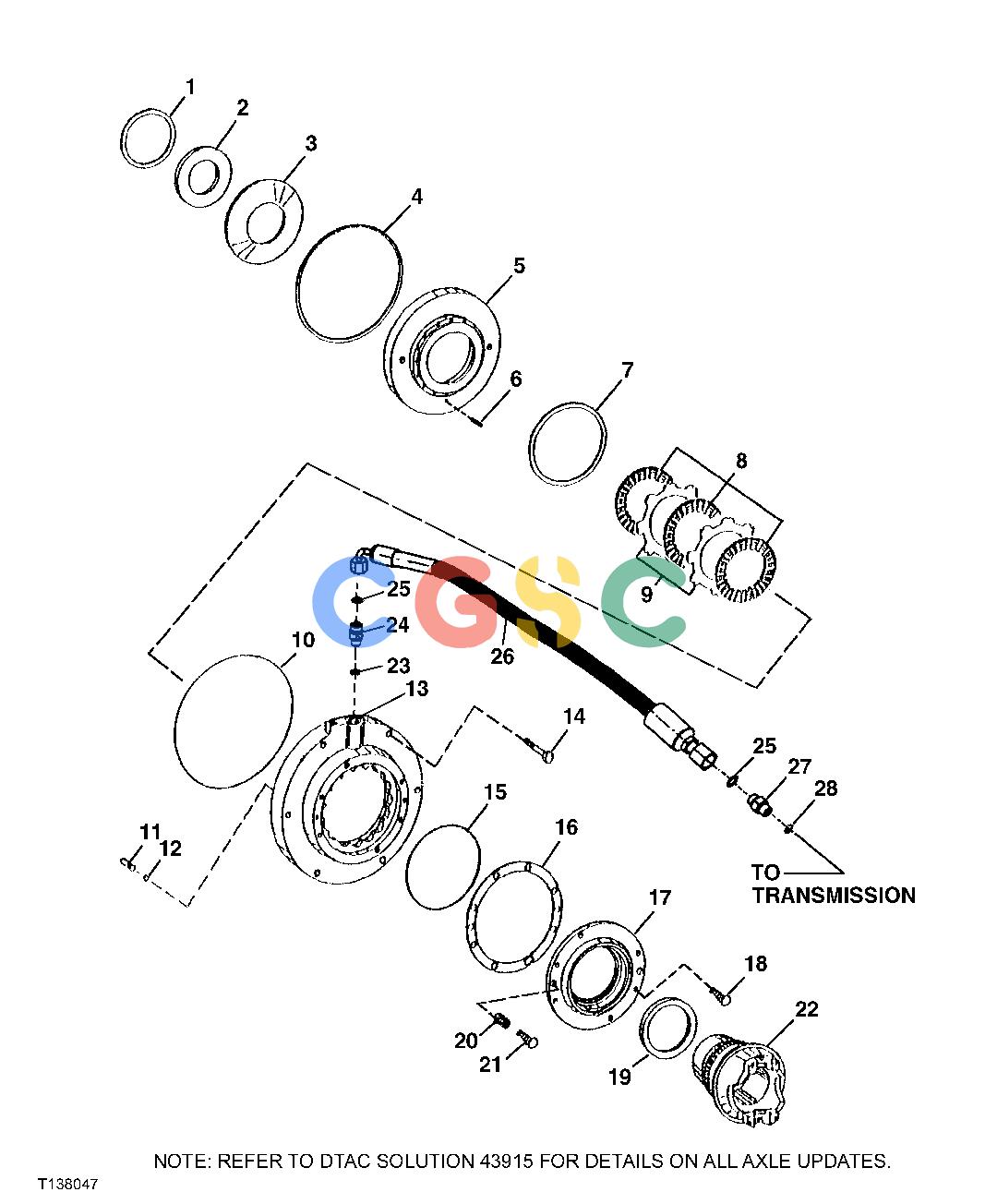

约翰迪尔零件查询410E - BACKHOE, LOADER Parking BrakeEPC John Deere online
广数供应链运营团队, 16 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T159479
|
[1] |
Shim
|
|
| 1. |
T159480
|
[1] |
Shim
|
|
| 1. |
T159481
|
[1] |
Shim
|
|
| 1. |
T159482
|
[1] |
Shim
|
|
| 1. |
T159483
|
[1] |
Shim
|
|
| 2. |
T159484
|
[1] |
Support
|
|
| 3. |
T159485
|
[1] |
Disk Spring
|
|
| 4. |
T159478
|
[1] |
Seal
|
|
| 5. |
T159476
|
[1] |
Piston
|
|
| 6. |
T159473
|
[1] |
Spring Pin
|
|
| 7. |
T159477
|
[1] |
Seal
|
|
| 8. |
T159475
|
[3] |
Clutch Disk
|
|
| 9. |
T159474
|
[2] |
Plate
|
|
| 10. |
T159472
|
[1] |
O-Ring
|
|
| 11. |
T159486
|
[2] |
Pin
|
|
| 12. |
T159487
|
[2] |
O-Ring
|
|
| 13. |
T159471
|
[1] |
Housing
|
|
| 14. |
19M7935
|
[6] |
Cap Screw
|
|
| 15. |
T174398
|
[1] |
O-Ring
|
|
| 16. |
T159492
|
[1] |
Shim
|
|
| 16. |
T159493
|
[1] |
Shim
|
|
| 16. |
T159494
|
[1] |
Shim
|
|
| 16. |
T159495
|
[1] |
Shim
|
|
| 16. |
T159496
|
[1] |
Shim
|
|
| 16. |
T159497
|
[1] |
Shim
|
|
| 17. |
T159490
|
[1] |
Cover
|
|
| 18. |
19M8761
|
[6] |
Screw
|
|
| 19. |
AT179537
|
[1] |
Seal
|
|
| 20. |
T159502
|
[2] |
Lock Nut
|
|
| 21. |
T159499
|
[2] |
Cap Screw
|
|
| 22. |
T158438
|
[1] |
Universal Joint Yoke
|
|
| 23. |
R26906
|
[1] |
O-Ring
|
|
| 24. |
38H1162
|
[1] |
Adapter Fitting
|
|
| 25. |
T77932
|
[2] |
O-Ring
|
|
| 26. |
AT179899
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 27. |
38H1317
|
[1] |
Fitting
|
|
| 28. |
R26375
|
[1] |
O-Ring
|
|
