约翰迪尔零件查询410E - BACKHOE, LOADER Brake Valve and Pedals ( - 887378)EPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览：次

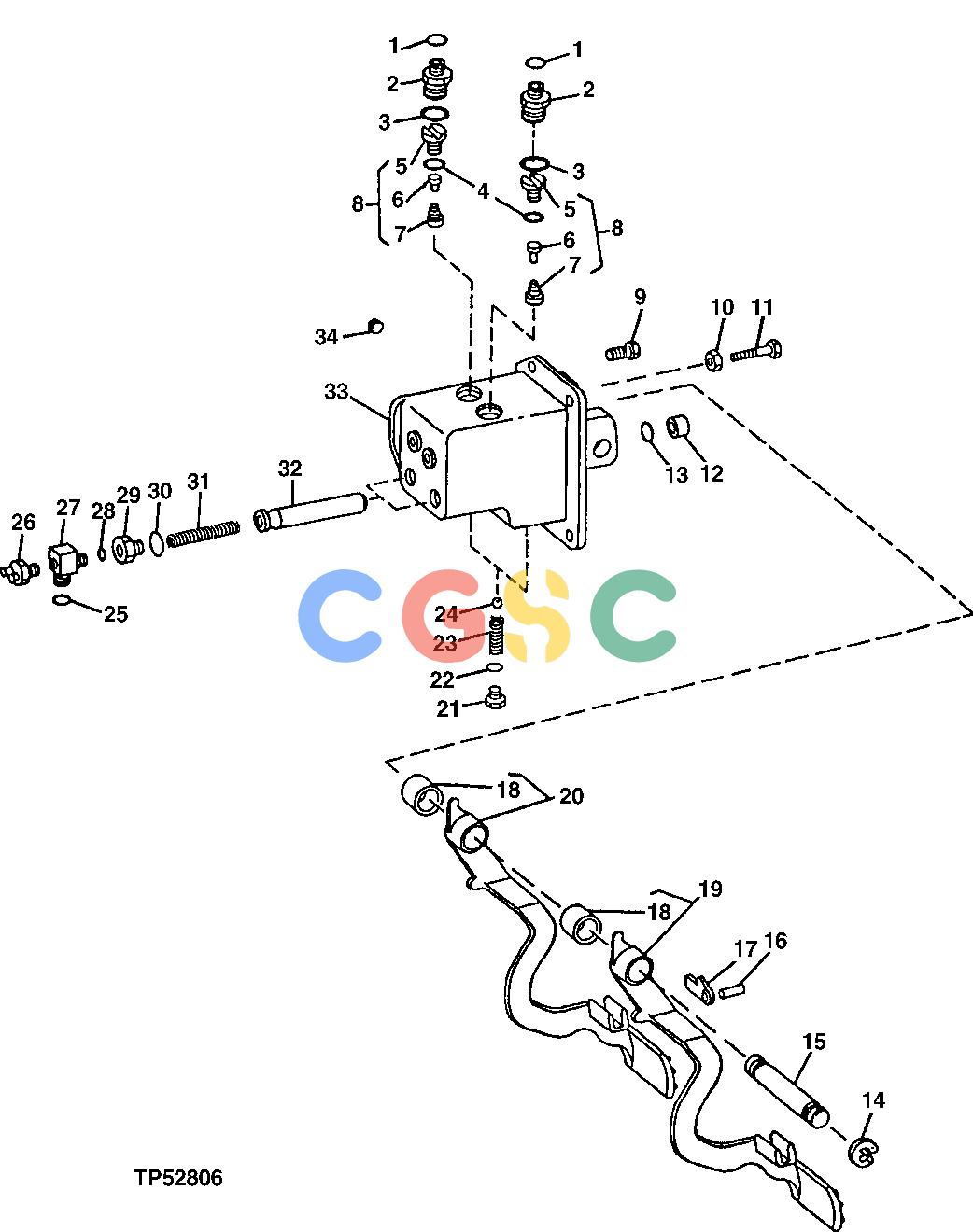

Pos.	Part No	Qty	Parts name	Comments
1.	T77857	[2]	O-Ring
2.	38H1176	[2]	Adapter Fitting
3.	R29936	[2]	O-Ring
4.	R26906	[2]	O-Ring	(A)
5.	........	[2]	Seat	(A)
6.	........	[2]	Valve	(A)
7.	........	[2]	Spring	(A)
8.	........	[2]	Check Valve	(AT135655) (NLA) (SUB AT184432)
9.	19M7550	[4]	Cap Screw	M10 X 35
10.	14H732	[2]	Nut	3/8"
11.	L32504	[2]	Cap Screw	9.525 X 31.750 MM (3/8" X 1-1/4")
12.	T22101	[2]	Seal	(A)
13.	T163092	[2]	Seal	(A) (SUB FOR R495R, THIS APPLICATION)
14.	F2863R	[2]	Snap Ring
15.	T133078	[1]	Pin Fastener
16.	34H312	[1]	Spring Pin	1/4" X 1"
17.	R50879	[1]	Arm
18.	B177R	[2]	Bushing
19.	AT151431	[1]	Pedal	LEFT
20.	AT151432	[1]	Pedal	RIGHT
21.	R39112	[2]	Fitting
22.	R26375	[2]	O-Ring
23.	T21816	[2]	Compression Spring
24.	D2361R	[2]	Ball
25.	T77814	[2]	O-Ring
26.	R32548	[2]	Pressure Switch	(BRAKELIGHT PRESSURE SWITCH)
27.	T159058	[2]	Fitting
28.	R26287	[2]	O-Ring
29.	R50110	[2]	Fitting
30.	U12547	[2]	O-Ring
31.	A4737R	[2]	Spring
32.	........	[2]	Piston	(A) (T127125 NLA) (SUB AT184432)
33.	AT186842	[1]	Housing	(INCLUDES T122169 AND 15H558)
34.	15H558	[1]	Pipe Plug	1/8"
34.	AT184432	[1]	Valve	(A) (BRAKE VALVE OVERHAUL) (REQUIRES 2 KITS PER VALVE)
