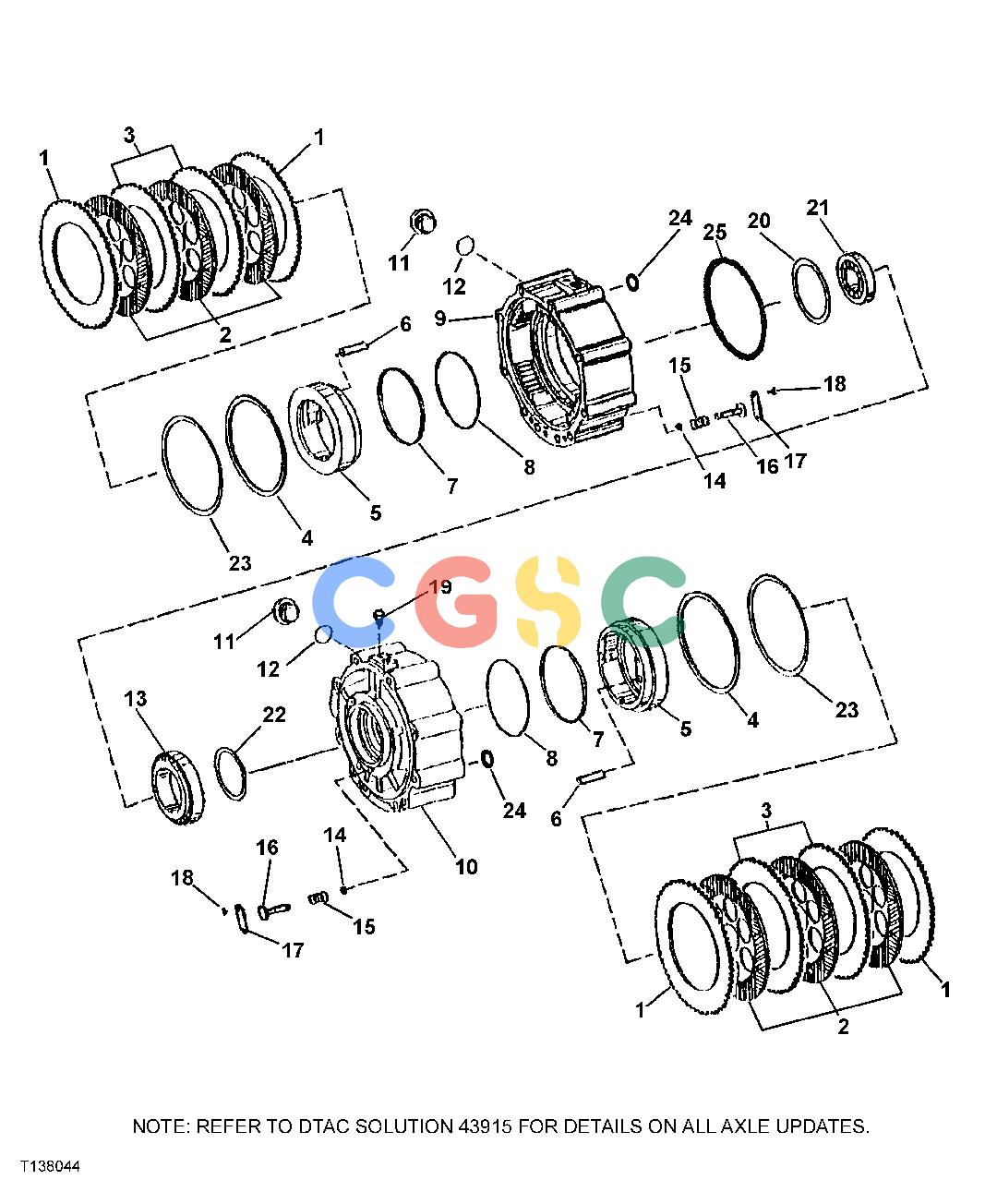

Pos.	Part No	Qty	Parts name	Comments
1.	T159409	[4]	Plate	3MM
2.	AT179503	[6]	Brake Disk
3.	T161233	[4]	Disk	4MM
4.	T159402	[2]	Seal
5.	T185443	[2]	Piston	(SUB FOR T159405 AND T166086)
6.	T159399	[4]	Dowel Pin
7.	T159400	[2]	Seal
8.	T159401	[2]	Back-Up Ring
9.	T159396	[1]	Housing	(RH)
10.	T159397	[1]	Housing	(LH)
11.	15M7030	[2]	Pipe Plug
12.	L55580	[2]	O-Ring
13.	AT179504	[1]	Tapered Roller Bearing
14.	T159407	[6]	Ring
15.	T159408	[6]	Spring
16.	T159406	[6]	Pin
17.	T159398	[6]	Lock Plate
18.	19M8425	[12]	Cap Screw	M6 X 16
19.	T162517	[2]	Bleed Valve
20.	T161247	[1]	Shim	.20MM
20.	T161246	[1]	Shim	.30MM
20.	T161245	[1]	Shim	.40MM
20.	T161244	[1]	Shim	.50MM
20.	T161243	[1]	Shim	.70MM
20.	T161242	[1]	Shim	.75MM
20.	T161241	[1]	Shim	.80MM
20.	T161240	[1]	Shim	.85MM
20.	T161239	[1]	Shim	.90MM
20.	T161238	[1]	Shim	.95MM
20.	T159435	[1]	Shim	1.0MM
20.	T159431	[1]	Shim	1.2MM
20.	T159429	[1]	Shim	1.3MM
20.	T159427	[1]	Shim	1.4MM
20.	T159425	[1]	Shim	1.5MM
21.	AT179505	[1]	Tapered Roller Bearing	RIGHT
22.	T159444	[1]	Shim	.1MM
22.	T159445	[1]	Shim	.15MM
22.	T159443	[1]	Shim	.2MM
22.	T159440	[1]	Shim	.3MM
22.	T159441	[1]	Shim	.5MM
22.	T159442	[1]	Shim	1.0MM
22.	T159446	[1]	Shim	1.1MM
22.	T159447	[1]	Shim	1.2MM
22.	T159448	[1]	Shim	1.3MM
22.	T159449	[1]	Shim	1.4MM
22.	T159450	[1]	Shim	1.5MM
22.	T159451	[1]	Shim	1.6MM
22.	T159452	[1]	Shim	1.7MM
22.	T159453	[1]	Shim	1.8MM
22.	T183500	[1]	Solid Shim	2.15MM
22.	T183502	[1]	Solid Shim	2.25MM
22.	T183505	[1]	Solid Shim	2.4MM
22.	T183506	[1]	Solid Shim	2.45MM
22.	T183507	[1]	Solid Shim	2.5MM
22.	T159457	[1]	Shim	2.8MM
22.	T159459	[1]	Shim	3.0MM
22.	T159461	[1]	Shim	3.2MM
22.	T159463	[1]	Shim	3.4MM
23.	T159403	[2]	Back-Up Ring
24.	T159373	[8]	O-Ring
25.	T159362	[1]	O-Ring
