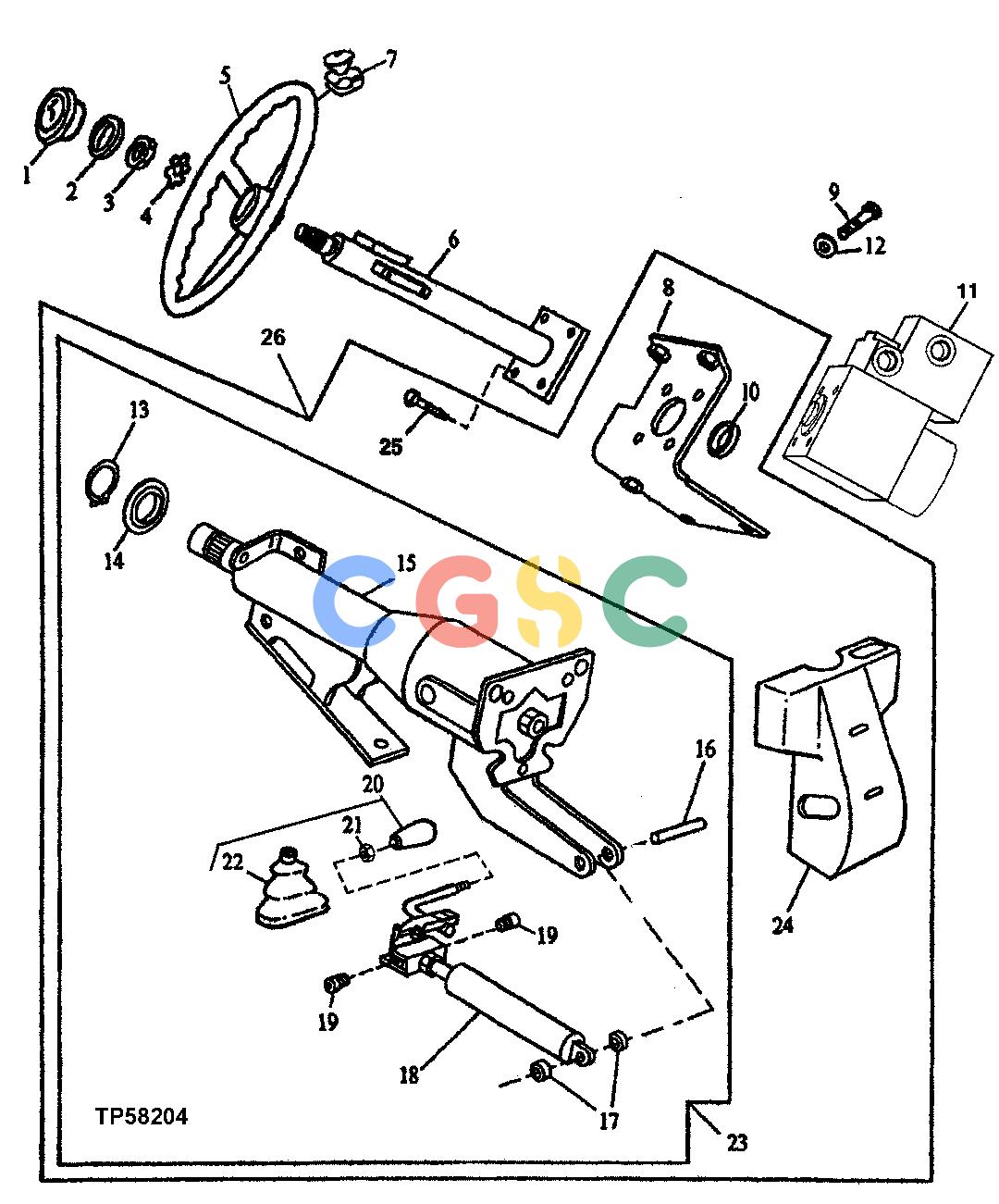

约翰迪尔零件查询410E - BACKHOE, LOADER Steering Valve, Steering Wheel and Steering ColumnEPC John Deere online

广数供应链运营团队, 16 02月, 2025,浏览:

Pos. Part No Qty Parts name Comments
1. AL155227 [1]   Cover      SUB FOR AL118173 OR R47998
2. P50631 [1]   O-Ring
3. T13630 [1]   Nut
4. T17148 [1]   Lock Washer
5. AT139694 [1]   Steering Wheel
6. AT166242 [1]   Steering Column
7. AT369839 [1]   Knob      SPINNER SUB FOR AT169849
8. AT159104 [1]   Bracket
9. 19M7402 [3]   Cap Screw      M10 X 25
9. 19M7550 [1]   Cap Screw      M10 X 35
10. T134635 [1]   Washer      WITHOUT TILT STEERING
10. T142887 [1]   Washer      WITH TILT STEERING
11. AT172609 [1]   Manual Hydraulic Valve      CONVENIENCE ASSEMBLY
12. 24M7239 [4]   Washer      10.700 X 21 X 2.500 MM
13. ........ [1]   Snap Ring      (K)
14. ........ [1]   Seal      (K)
15. ........ [1]   Steering Column
16. ........ [1]   Dowel Pin      (K)
17. ........ [1]   Bushing      NLA
18. AT160662 [1]   Kit
18. AT220224 [1]   Lever Kit
19. ........ [1]   Pin      (K)
20. AT191487 [1]   Boot Kit      KNOB
21. ........ [1]   Nut      ORDER AT191487
22. ........ [1]   Boot      ORDER AT191487
23. AT140971 [1]   Steering Column      TILT
24. T132995 [1]   Cover      LOWER COLUMN TILT STEERING
25. 19H2676 [4]   Cap Screw      3/8" X 1" WITHOUT TILT STEERING
25. 19H2923 [4]   Screw      3/8" X 1" WITH TILT STEERING
26. AT161014 [1]   Kit      TILT STEERING
... RE56109 [1]   Steering Column      TILT STEERING COLUMN OVERHAUL INCLUDES ALL (K) PARTS
