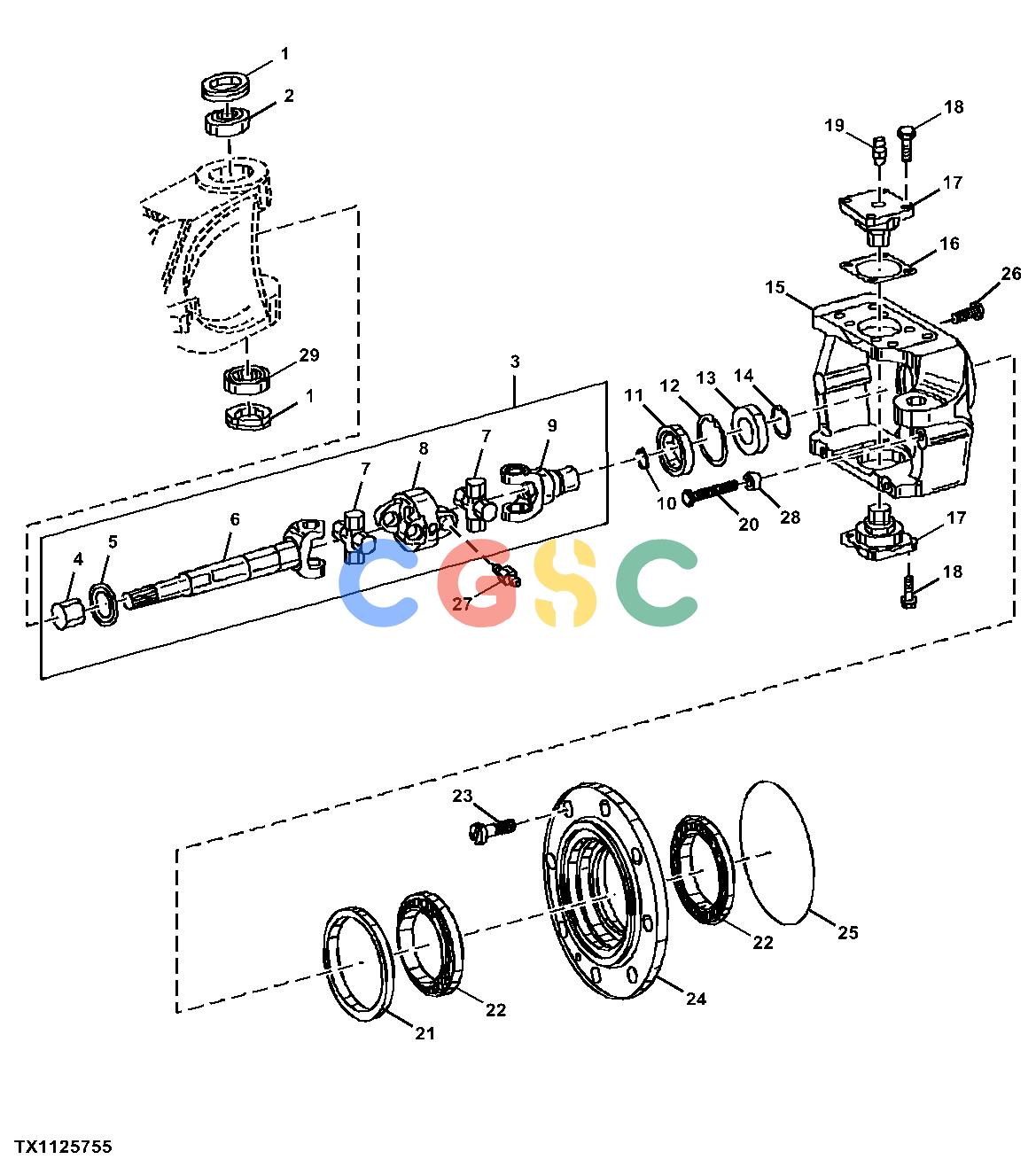

约翰迪尔零件查询410E - BACKHOE, LOADER Front Axle Housing Hubs and Universal Joints with MFWDEPC John Deere online

广数供应链运营团队, 16 02月, 2025，浏览：次

Pos.	Part No	Qty	Parts name	Comments
1.	AL79902	[2]	Seal
2.	AT339808	[1]	Tapered Roller Bearing	SUB FOR AL79901
3.	AT167118	[1]	Universal Driveshaft	LH
3.	AT167119	[1]	Universal Driveshaft	RH
4.	L100636	[1]	Bushing
5.	L100635	[1]	Sheet
6.	T153722	[1]	Shaft	LH
6.	T153721	[1]	Shaft	RH
7.	L100632	[2]	Cross And Bearing Assembly
8.	L100633	[1]	Yoke
9.	T153720	[1]	Universal Joint
10.	L40276	[1]	Snap Ring
11.	AL79951	[1]	Seal
12.	40M5099	[1]	Snap Ring
13.	R115119	[1]	Ball Bearing
14.	T151264	[1]	Snap Ring
15.	T251386	[1]	Housing	LH SUB FOR T151088
15.	T251385	[1]	Housing	RH SUB FOR T151087
16.	L100102	[AR]	Shim	0.20 MM (0.0079 IN)
16.	T166150	[AR]	Shim	0.50 MM (0.0197 IN)
16.	T166149	[AR]	Shim	0.70 MM (0.0276 IN)
16.	L100106	[AR]	Shim	0.80 MM (0.0315 IN)
16.	T166145	[AR]	Shim	0.90 MM (0.0354 IN)
16.	T166148	[AR]	Shim	1.10 MM (0.0433 IN)
16.	T166147	[AR]	Shim	1.20 MM (0.0472 IN)
16.	T166146	[AR]	Shim	1.30 MM (0.0512 IN)
16.	L100109	[AR]	Shim	1.60 MM (0.0630 IN)
17.	T188397	[2]	Pin	SUB FOR T151074, THIS APPLICATION ALSO ORDER 58M5573
18.	19M8011	[8]	Cap Screw	M12 X 30
19.	58M5573	[2]	Lubrication Fitting
20.	L100239	[1]	Screw
21.	AL79950	[1]	Seal
22.	JD10249	[2]	Tapered Roller Bearing
23.	L55598	[8]	Wheel Bolt
24.	L100238	[1]	Hub
25.	L40317	[1]	O-Ring
26.	19M8738	[8]	Cap Screw	M10 X 45 RING GEAR TO HOUSING
27.	58M5574	[2]	Lubrication Fitting
28.	14M7345	[1]	Nut	M14
29.	AT333060	[1]	Tapered Roller Bearing	ALSO ORDER JD8267 SUB FOR AL79901
