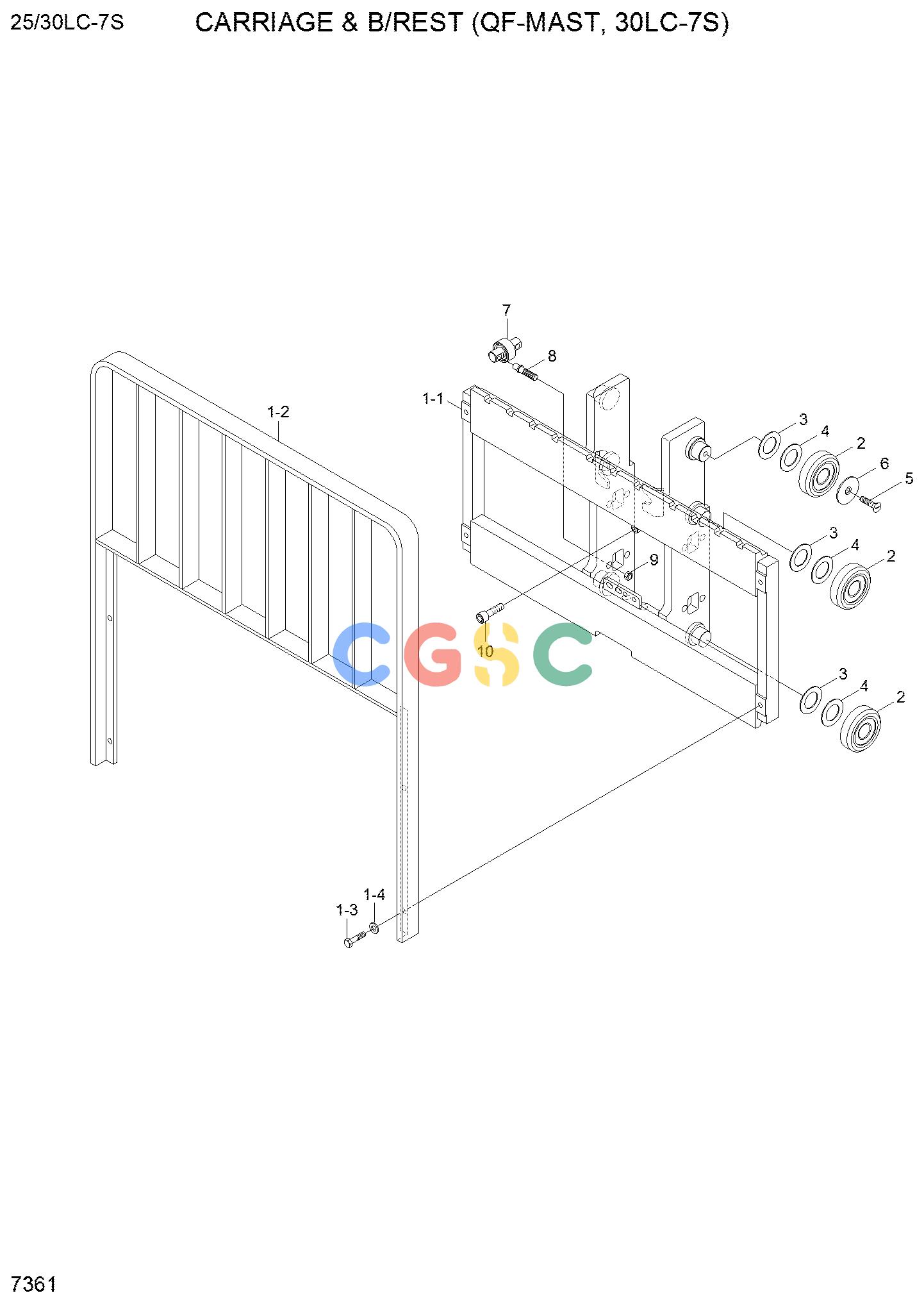

现代零件查询25/30LC-7S CARR & BKT (QF-MAST, 30LC-7S)EPC Hyundai
广数供应链运营团队, 16 02月, 2025，浏览：次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
6FHC-26010
|
[1] |
CARR & B/REST SUB ASSY
|
|
| 1-1. |
6FHC-22010
|
[1] |
CARRIAGE WA
|
|
| 1-2. |
6BHC-24430
|
[1] |
BACKREST WA
|
|
| 1-3. |
S017-120356
|
[4] |
BOLT-HEX
|
|
| 1-4. |
S441-12000B
|
[4] |
WASHER-HARDENED
|
|
| 2. |
63HK-18101
|
[6] |
LOAD R/BEARING(117.5)
|
|
| 2. |
63HK-18111
|
[6] |
LOAD R/BEARING(117.2)
|
|
| 2. |
63HK-18121
|
[6] |
LOAD R/BEARING(117.8)
|
|
| 2. |
63HK-18141
|
[6] |
LOAD R/BEARING(118.1)
|
|
| 3. |
6600187900
|
[6] |
SHIM(0.5T)
|
|
| 4. |
6600188000
|
[6] |
SHIM(1.0T)
|
|
| 5. |
61F7-28010
|
[2] |
BOLT-FLAT HD
|
|
| 6. |
61F7-28021
|
[2] |
WASHER-RETAINING
|
|
| 7. |
61F7-28100
|
[4] |
SIDE ROLLER ASSY
|
|
| 8. |
61HM-28040
|
[8] |
SCREW-ADJUSTABLE
|
|
| 9. |
S205-16100B
|
[8] |
NUT-HEX
|
|
| 10. |
S109-120206
|
[1] |
BOLT-SOCKET
|
|
