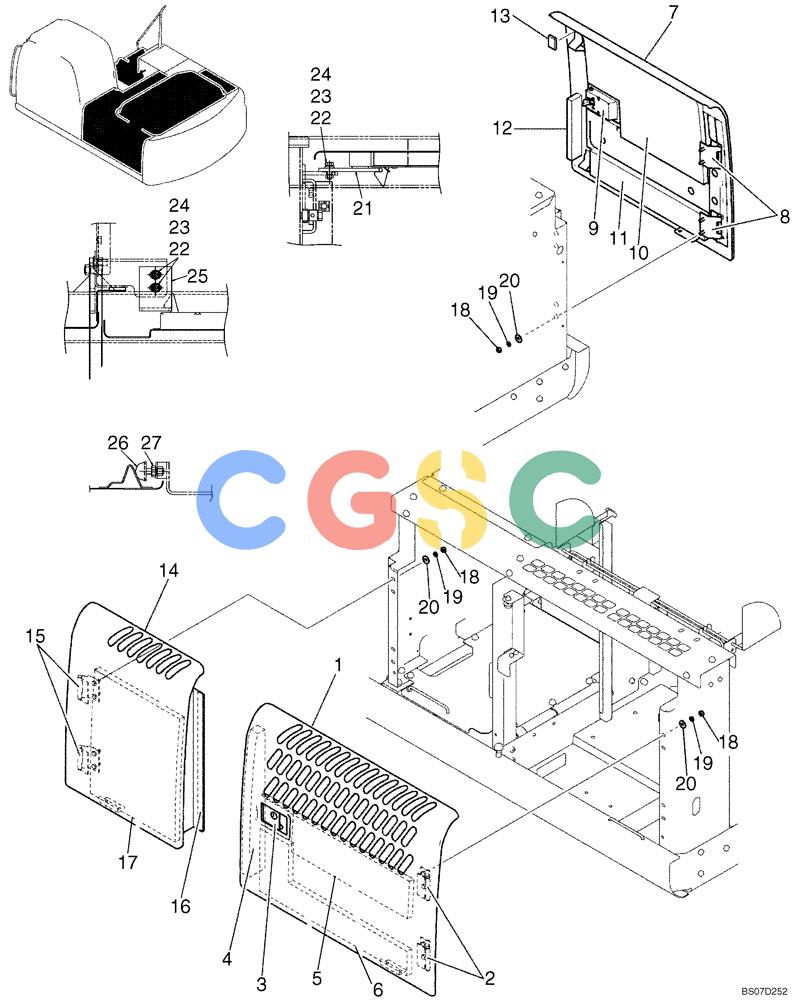

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-58-01[00]) - GUARD INSTALLATION, (SIDE PANEL) (YM21C00010F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YB21C01429P1 | [1] | PANEL | KOBAssembly Incls. Refs. 2 & 3 Superseded by part number: 87359926 |
| 2. | YN21C02347P1 | [2] | HINGE | KOB |
| 3. | YN21C02202P1 | [1] | LOCK | SM |
| 4. | YN21C02460P1 | [1] | GASKET | SM |
| 5. | YB21C01189P1 | [1] | FOAM INSULATION | KOB |
| 6. | YB21C01190P1 | [1] | FOAM INSULATION | KOB |
| 7. | YB21C01427P1 | [1] | PANEL | KOBAssembly Incls. Refs. 8 & 9 Superseded by part number: 87359943 |
| 8. | YN21C02347P1 | [2] | HINGE | KOB |
| 9. | YN21C02202P1 | [1] | LOCK | SM |
| 10. | YB21C01200P1 | [1] | FOAM INSULATION | KOB |
| 11. | YB21C01199P1 | [1] | FOAM INSULATION | KOB |
| 12. | YN21C02048P1 | [1] | RUBBER | KOB25x54x280mm Long |
| 13. | YN21C01814D1 | [1] | RUBBER | KOB06x40x53mm Long |
| 14. | YM21C01263P1 | [1] | PANEL | KOBAssembly Incls. Refs. 15 Superseded by part number: 87379521 |
| 15. | YN21C02347P1 | [2] | HINGE | KOB |
| 16. | YN21C02462P1 | [1] | RUBBER STRIP | KOB |
| 17. | YM21C01253P1 | [1] | FOAM INSULATION | KOB |
| 18. | ZN18C10008 | [12] | NUT | KOBM10x1.50mm |
| 19. | ZW26X10000 | [12] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 20. | 2418T12346 | [12] | WASHER | KOBID 11 x OD 30 x Th 3.2mm |
| 21. | YN21C03334P1 | [1] | PLATE | KOBNot Shown Superseded by part number: YN21C04124P1 |
| 22. | ZS18C08025 | [4] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm, Not Shown |
| 23. | ZW26X08000 | [4] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm, Not Shown Superseded by part number: 83990583 |
| 24. | ZW16H08000 | [4] | WASHER | KOBID 08 x OD 18 x Th 3.2mm, Not Shown |
| 25. | YN21C03335P1 | [1] | PLATE | KOBNot Shown Superseded by part number: YN21C04123P1 |
| 26. | YN21C03212P1 | [4] | STOP | KOBØ36 x 20mm Long (M10x1.25x33mm Long), Not Shown |
| 27. | ZN18F10008 | [4] | NUT | KOBM10x1.25mm, Not Shown |
