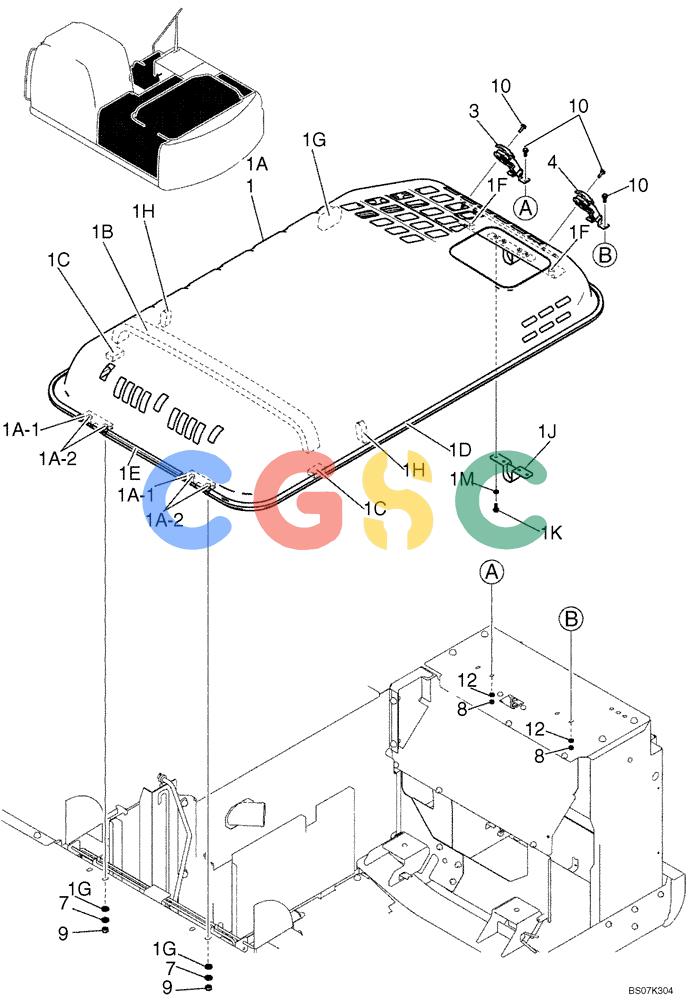

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-52-02[00]) - GUARD INSTALLATION, (TOP COVER) (YM21C00007F1), FIGURE 2 OF 2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YB22C01059F1 | [1] | COVER | KOBTop Cover Assembly, Incl. Refs. 1A-1K |
| 1A. | YB22C01057P1 | [1] | COWLING | SMIncls. Refs. 1A-1 & 1A-2 Superseded by part number: YB22C01057P2 |
| 1A-1. | LC22C01028P1 | [2] | HINGE | KOB |
| 1A-2. | ZS11C12030 | [4] | CAP,Hex, M12 x 30mm, Cl 4.8 | KOBScrew -- M12x1.75x30mm Superseded by part number: ZM12C12030 |
| 1B. | YB22C01060P1 | [1] | FOAM INSULATION | KOBInsulation |
| 1C. | YB22C01062P1 | [2] | FOAM INSULATION | KOBInsulation |
| 1D. | YN22C01283D1 | [1] | WEATHERSTRIP | KOB |
| 1E. | YR21C01251D4 | [1] | WEATHERSTRIP | KOB |
| 1F. | 2416T13435 | [2] | RUBBER | KOB |
| 1G. | 2406Z304 | [1] | HANDLE | KOB |
| 1H. | YN22C01297P1 | [2] | FOAM INSULATION | KOB |
| 1J. | YN22C01287P1 | [1] | PLATE | KOB |
| 1K. | ZM73C08020 | [4] | BOLT,M8x20mm - Course Thread | KOBM08x1.25x20mm (Incls. Washer) |
| 1M. | ZW16H08000 | [4] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 3. | LC21C01811P2 | [1] | LATCH | SM(Supplied with Key); Replacement keys are not available |
| 4. | LC21C01812P2 | [1] | HANDLE | SM(Non-locking) Superseded by part number: LC21C01811P2 |
| 7. | 2418T10357 | [4] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 8. | ZN18C08007 | [4] | NUT | KOBM08x1.25mm |
| 9. | ZN18C12010 | [4] | NUT | KOBM12x1.75mm |
| 10. | ZM73C08025 | [8] | BOLT,M8x25mm - Course Thread | KOBM08x1.25x25mm (Incls. Washer) -- Replaces ZS18C08025, M08x1.25x25mm |
| 12. | ZW16H08000 | [12] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
