神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-46[00]) - WINDOW, ROOF (YN02C03654F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：次

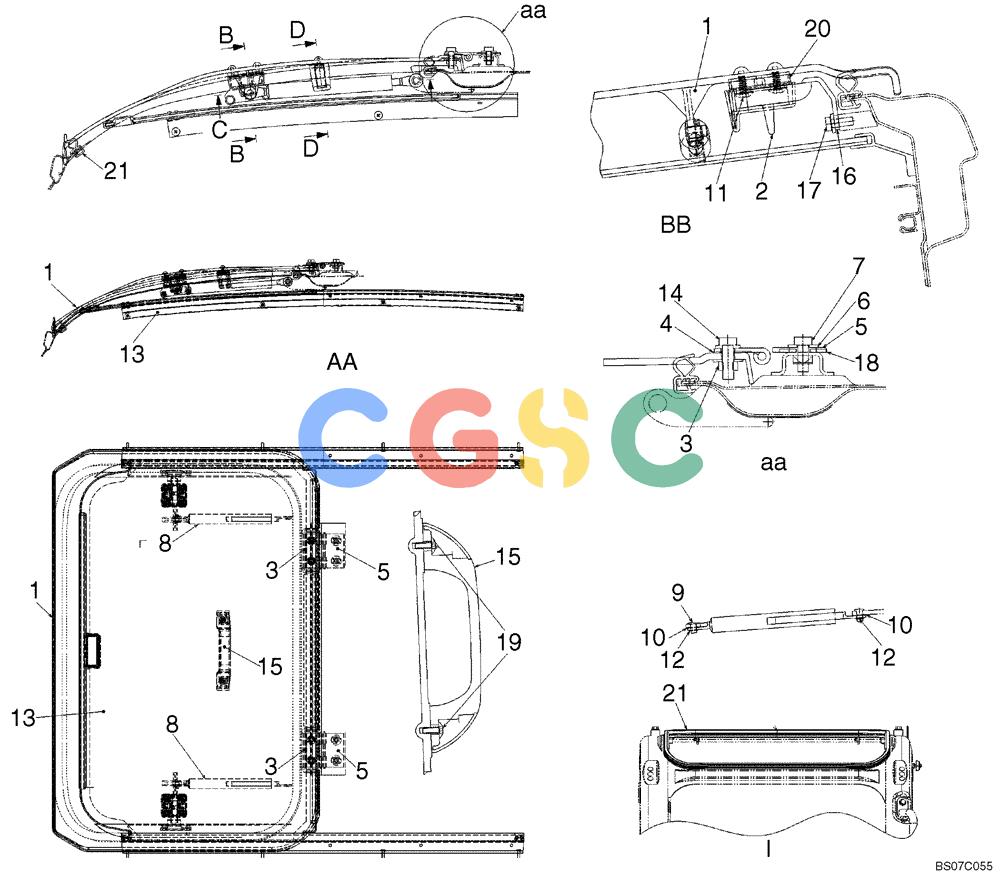

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN02C03650P1 | [1] | GLASS | SM |
| 2. | YN02C03810F1 | [2] | LOCK | KOB |
| 3. | YN02C02705P1 | [2] | PLATE | KOB |
| 4. | YN02C01764P1 | [2] | RUBBER SLEEVE | KOB |
| 5. | YN02C03194P1 | [2] | HINGE | KOB |
| 6. | YR21C01161P1 | [4] | WASHER,9mm ID x 22mm OD x 2.3mm Thk | KOBID 09 x OD 22 x Th 2.3mm |
| 7. | ZS18C08020 | [4] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 8. | YT02C01086P1 | [2] | GAS STRUT | KOBGas |
| 9. | YN02C01824P2 | [2] | PIN | SMPin Superseded by part number: YN02C01824P1 |
| 10. | YT02C01390P1 | [4] | WASHER,9mm ID x 20mm OD x 0.8mm Thk | KOBID 09 x OD 20 x Th 0.8mm |
| 11. | YN02C03767P1 | [8] | SCREW,M6 x 16mm | SMM06x16mm Self-Taper |
| 12. | ZR36X00600 | [4] | SNAP RING | KOBE-Ring -- Shaft 06mm x OD 12mm |
| 13. | YN55C00008F1 | [1] | SUN VISOR | KOBAssembly, Contains Items Marked with "K" |
| K. | YN55C00010P1 | [1] | SUN VISOR | KOBSun Visor, Not Shown Superseded by part number: YN55C00017P1 |
| K. | YN02C01953P2 | [1] | RAIL ASSY. | KOBLeft, Not Shown |
| K. | YN02C01954P1 | [1] | RAIL ASSY. | KOBRight Front, Not Shown |
| K. | YN02C01955P1 | [1] | RAIL ASSY. | KOBRight Back, Not Shown |
| K. | YN02C01875D1 | [8] | SCREW | KOBM05x0.8x16mm Long, Not Shown |
| K. | YN02C03200P1 | [1] | FOAM INSULATION | KOBNot Shown |
| K. | YN55C01018P1 | [1] | HANDLE | KOBHandle, Not Shown |
| 14. | ZM73C08025 | [4] | BOLT,M8x25mm - Course Thread | KOBM08x1.25x25mm (Incls. Washer) |
| 15. | YN02C02967P1 | [1] | HANDLE | KOB |
| 16. | YN02C03187P2 | [2] | PLATE | SM |
| 17. | ZM73C06016 | [4] | BOLT,M6x16mm - Course Thread | KOBM06x1.0x16mm (Incls. Washer) |
| 18. | YN02C03641P1 | [2] | PLATE | SM |
| 19. | YN02C03766P1 | [2] | SCREW | SMScrew -- M05x15mm Self-Taper |
| 20. | YN02C03656P1 | [2] | SPACER | SM |
| 21. | YN02C03669P1 | [1] | GASKET | SMUsed before date - 12/08/2006 Superseded by part number: YN02C03669P2 |
| 21. | YN02C03669P2 | [1] | GASKET | SMUsed after date 12/08/2006 - Up |
