神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-35[00]) - CONTROL LINES, REMOTE (SENSOR) (YN68H00129F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：次

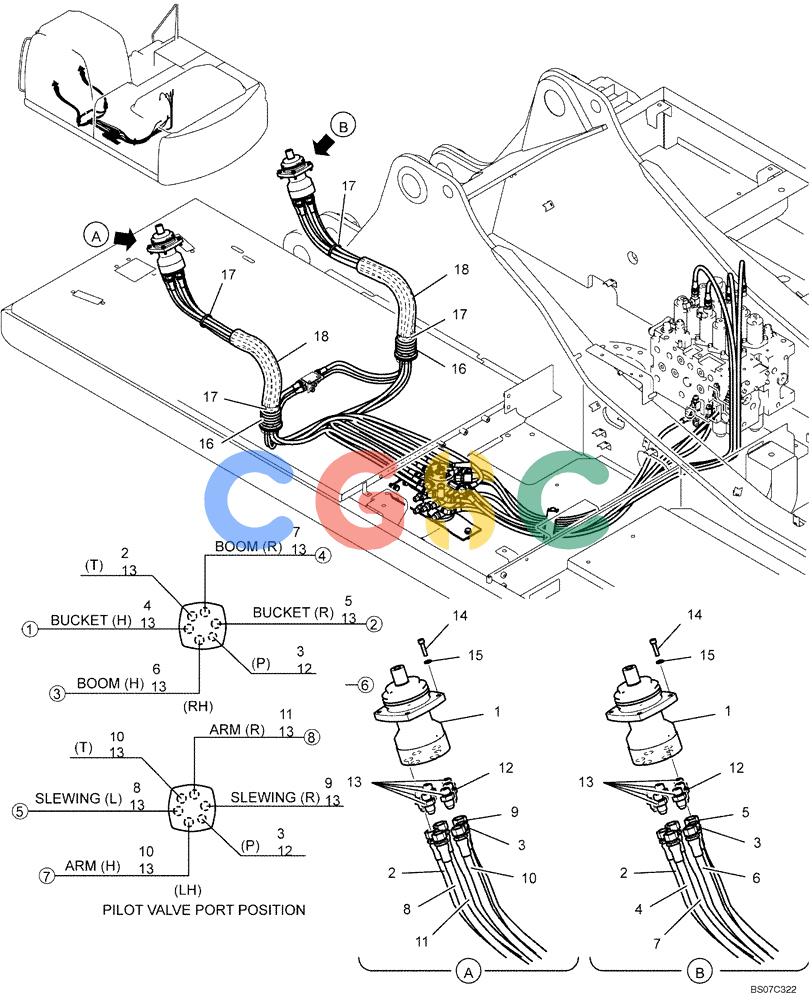

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN30V00111F1 | [2] | HYDRAULIC VALVE | SMPilot -- See Figure 08-23 |
| 2. | 2420R537D135 | [2] | FLEXIBLE HOSE,9.60mm ID x 1350mm L | KOB1350mm Long (53-9/64 in) Superseded by part number: HX21E06135DX |
| 3. | 2420R349D135 | [2] | HOSE,6.35mm ID x 1350mm L | KOB |
| 4. | HX23L06175CR | [1] | HOSE,9.53mm ID x 1750mm L | SM |
| 5. | HX23L06175CB | [1] | HOSE,9.53mm ID x 1750mm L | SM |
| 6. | HX23L06175CG | [1] | HOSE,9.53mm ID x 1750mm L | SM |
| 7. | HX23L06180CH | [1] | HYDRAULIC HOSE | SM1800mm Long (70-55/64 in) |
| 8. | HX23L06155CH | [1] | HOSE,9.53mm ID x 1550mm L | SM |
| 9. | HX23L06150CR | [1] | HOSE,9.53mm ID x 1500mm L | SM |
| 10. | HX23L06145CB | [1] | HOSE,9.53mm ID x 1450mm L | SM |
| 11. | HX23L06155CG | [1] | HOSE,9.53mm ID x 1550mm L | SM |
| 12. | HH25X04004G2 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01100) |
| . . | ZD12P01100 | [1] | O-RING | KOB(Part of HH25X04004G2), ID 10.8mm x OD 13.2mm, Not Shown |
| 13. | ZH22X06000 | [10] | HYD CONNECTOR | KOB(Incls. O-Ring 237-6006) |
| . . | 237-6006 | [1] | O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro | CAS(Part of ZH22X06000), SAE No. 6-1, Not Shown Superseded by part number: 9617873 |
| 14. | ZS28C06025 | [8] | SCREW,Hex Socket Head, M6 x 25mm | KOBM06x1.0x25mm |
| 15. | ZW16P06000 | [8] | WASHER | KOBID 06 x OD 11.5 x Th 1.6mm |
| 16. | PH03M01250P1 | [2] | BOOT | KOB |
| 17. | PY01P01043D8 | [8] | CABLE TIE,102mm L | KOBWire Ties -- 368mm Long |
| 18. | YN68H01106P1 | [2] | COVER | KOB |
