神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-34[00]) - ARM REST (YN25M01183F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：次

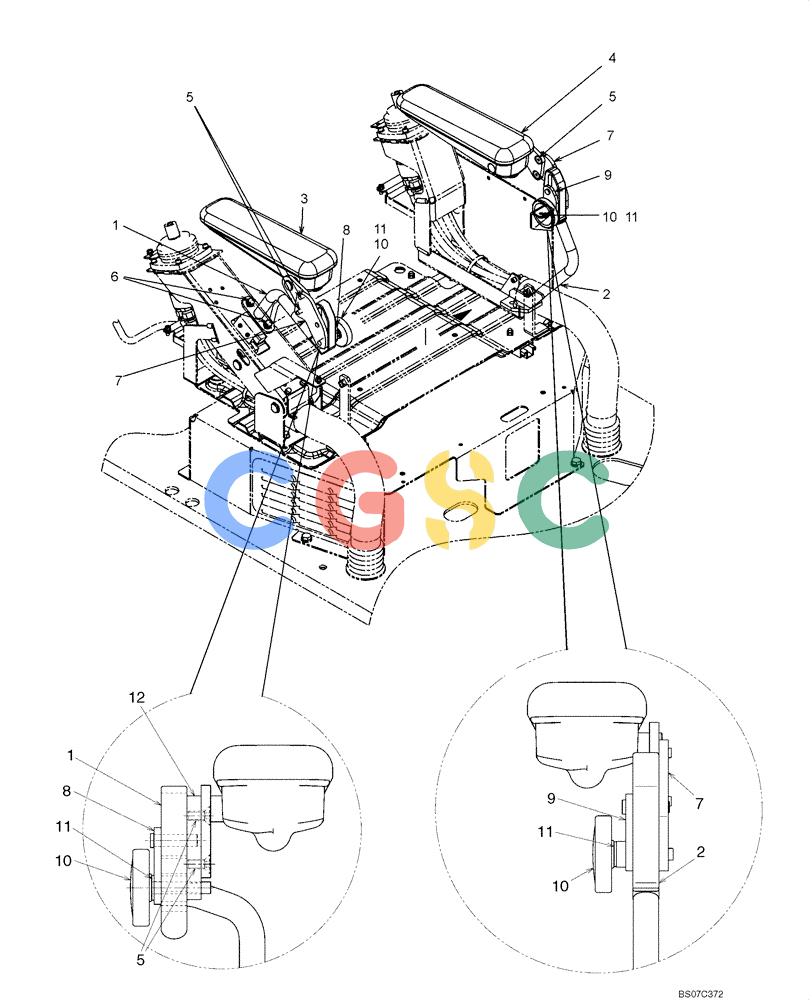

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN25M01217P1 | [1] | BRACKET | KOBBracket LH Superseded by part number: YN25M01217P2 |
| 2. | YN25M01205P1 | [1] | BRACKET | SMRH |
| 3. | YN25M01184P2 | [1] | ARMREST | KOB |
| 4. | YN25M01185P2 | [1] | ARMREST | KOB |
| 5. | ZS68C08018 | [4] | SCREW | SMM08x1.25x18mm |
| 6. | ZM27C08020 | [2] | BOLT | KOBM08x1.25x20mm (Incls. Washer & Lockwasher) |
| 7. | YN25M01211P1 | [2] | PLATE | SM |
| 8. | YN25M01219P1 | [1] | PLATE | KOBPlate |
| 9. | YN25M01208P1 | [1] | PLATE | SM |
| 10. | YN25M01198P1 | [2] | HANDLE GRIP | SM |
| 11. | ZW16P10000 | [2] | WASHER | KOBID 10.5 x OD 21 x Th 2.0mm |
| 12. | YN25M01218P1 | [1] | PLATE | KOBNot Shown Superseded by part number: YN25M01218P2 |
![]()
