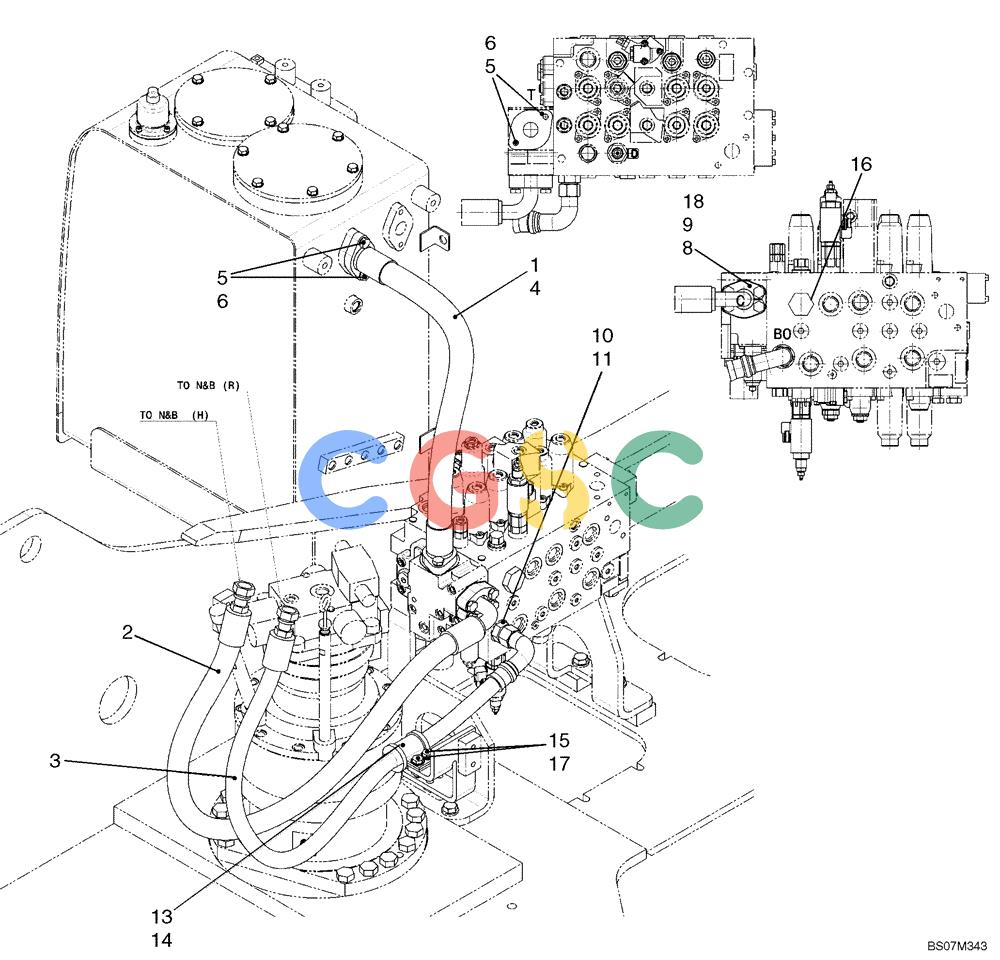

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-21[00]) - HYDRAULIC LINES, UPPER (2 WAY) (YM03H00025F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YB03H01129D1 | [1] | HYDRAULIC HOSE | SMTank -- 800mm Long (31-1/2 in) |
| 2. | YB03H01130D1 | [1] | HYDRAULIC HOSE | SMHigh -- 908mm Long (35-3/4 in) |
| 3. | ZX30H12135 | [1] | HOSE | KOBReturn -- 1350 mm Long (53-9/64 in) |
| 4. | ZD12P03800 | [2] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| 5. | ZS18C12035 | [4] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| 6. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 8. | ZE12X16000 | [2] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) |
| 9. | HM83C10035G1 | [4] | BOLT | KOBM10x35mm |
| 10. | ZG23F12012 | [1] | HYD CONNECTOR | KOB1 3/16" 12UN-3/4" PT x 48mm Long (Incls. O-Ring ZD12P02400) |
| . . | ZD12P02400 | [1] | O-RING | KOB(Part of ZG23F12012), ID 23.70 ± 0.24 x OD 30mm |
| 11. | ZD12A01800 | [3] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| 13. | YB03H01124P1 | [2] | BRACKET | KOBBracket |
| 14. | YN03H01431P1 | [1] | BUSHING,28mm ID x 56mm OD x 70mm L | KOBSplit -- ID 28 x OD 38 x 70mm Long |
| 15. | ZW16H10000 | [2] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 16. | ZE72X12000 | [1] | PLUG | KOB(3/4" PF) (Incls. O-Ring ZD12P02400) |
| 17. | ZM73C10035 | [2] | BOLT,M10x35mm - Course Thread | KOBM10x1.50x35mm (Incls. Washer) |
| 18. | ZD12P03400 | [4] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
