神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-20[00]) - HYDRAULIC LINES UPPER (STD) (YM03H00023F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：次

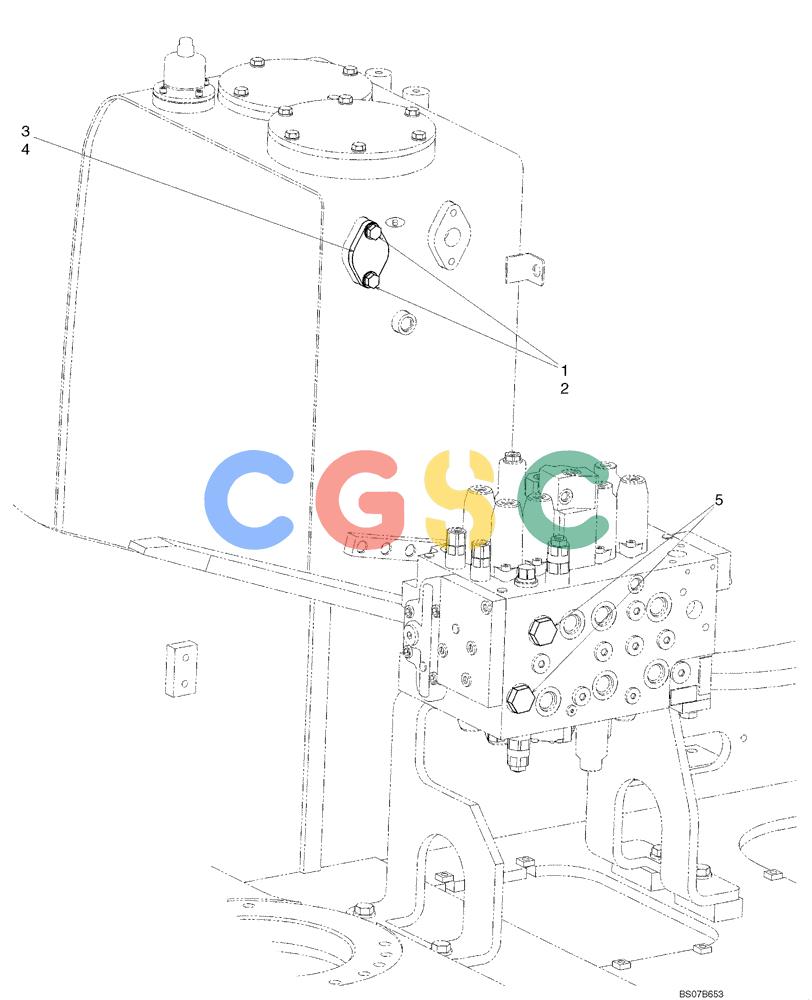

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ZS18C12030 | [2] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 2. | ZW16H12000 | [2] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 3. | ZD12P03800 | [1] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| 4. | YM03H01077P1 | [1] | PLUG | KOB |
| 5. | ZE72X12000 | [2] | PLUG | KOB(3/4" PF) (Incls. O-Ring ZD12P02400) |
| . . | ZD12P02400 | [1] | O-RING | KOB(Part of ZE72X12000), ID 23.70 ± 0.24 x OD 30mm, Not Shown |
