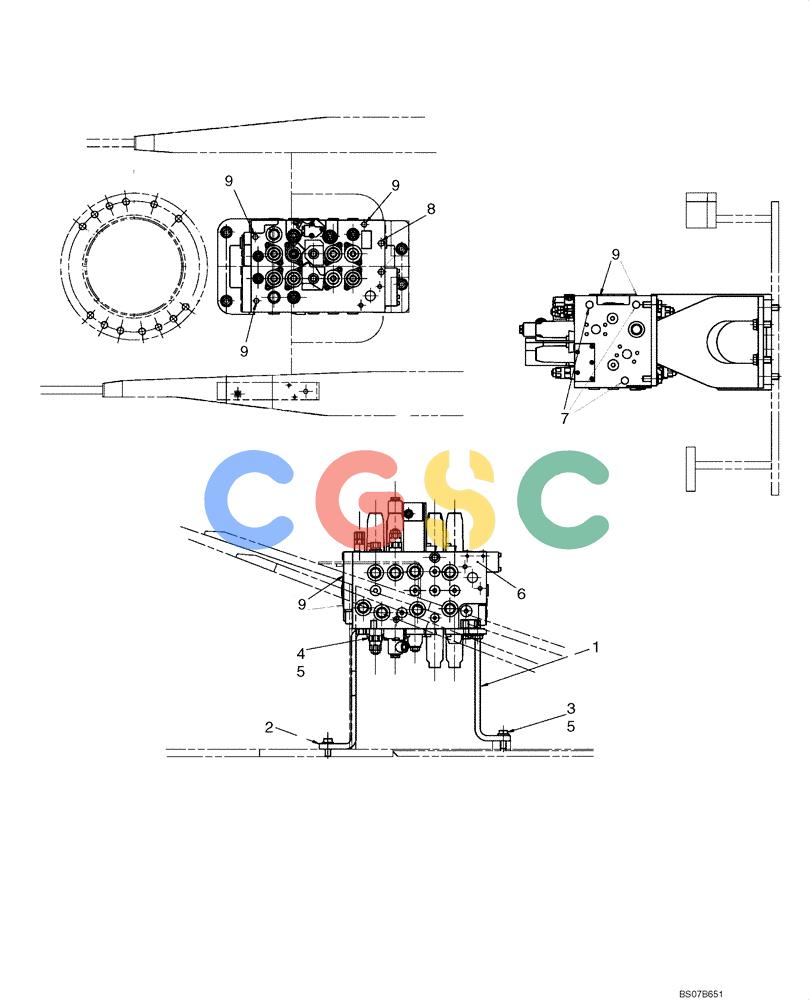

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-18[00]) - VALVE INSTALLATION, MAIN (YM64H00045F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YB64H01024P1 | [1] | BRACKET | KOB |
| 2. | YB64H01030P1 | [1] | BRACKET | KOB |
| 3. | ZS18C16040 | [4] | SCREW,Hex, M16 x 40mm | KOBM16x2.0x40mm |
| 4. | ZS18C12045 | [3] | SCREW,Hex, M12 x 45mm | KOBM12x1.75x45mm |
| 5. | YN02F01486P1 | [4] | WASHER | KOBSpecial |
| 6. | YM30V00011F1 | [1] | CONTROL VALVE | KOBAssembly, See Figure (08-01-01) - (08-01-09) Superseded by part number: YM30V00011F2 |
| 7. | YN64H01378D1 | [3] | PLUG | SMCap -- 14.0mm (Nylon) Superseded by part number: YN64H01392D1 |
| 8. | YN64H01376D1 | [2] | PLUG | SMCap -- 09.0mm (Nylon) Superseded by part number: YN64H01393D1 |
| 9. | YN64H01375D1 | [14] | PLUG | SMCap -- 10.0mm (Nylon) Superseded by part number: YN64H01391D1 |
| 10. | ZW16H12000 | [3] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
![]()
