神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-11[00]) - CONTROL LINES, BLOCK (STD) (YM64H00048F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：次

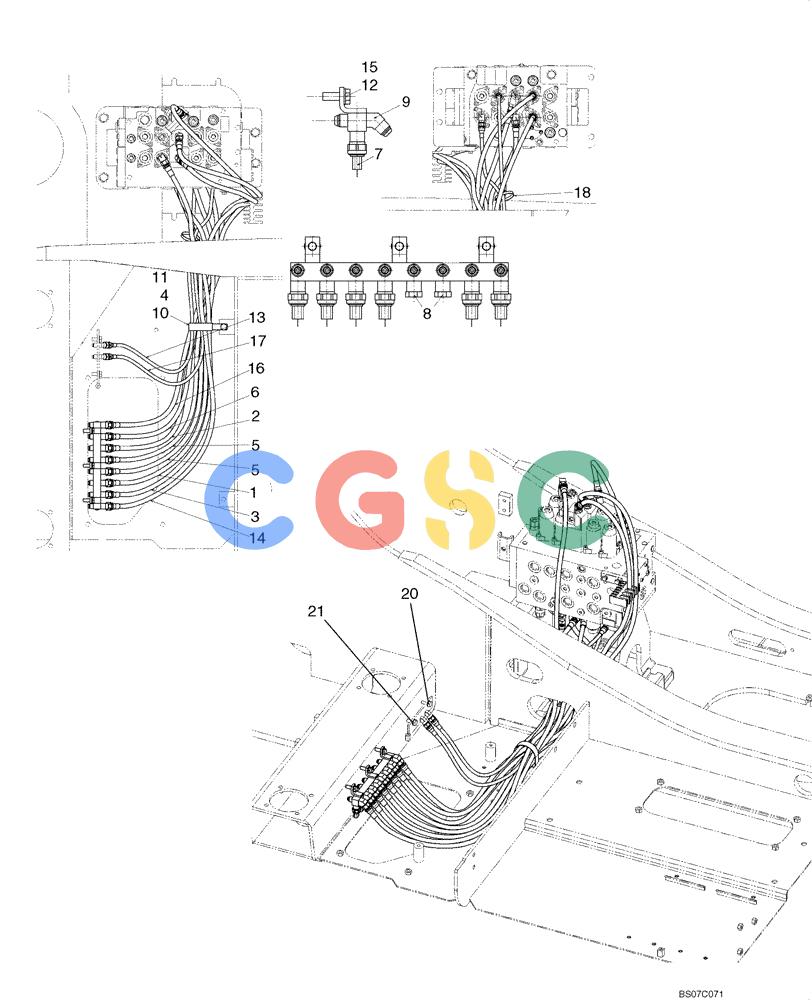

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | HX23L06150CR | [1] | HOSE,9.53mm ID x 1500mm L | SM |
| 2. | HX23L06140CG | [1] | HYDRAULIC HOSE | KOB1400mm Long (55-7/64 in) |
| 3. | HX23L06220CB | [1] | HOSE,9.53mm ID x 2200mm L | SM |
| 4. | ZS18C12025 | [1] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 5. | HX23L06300CH | [2] | HOSE,9.53mm ID x 3000mm L | KOB3000mm Long (118-7/64 in) |
| 6. | HX23L06230CB | [1] | HOSE,9.53mm ID x 2300mm L | KOB |
| 7. | LC52S00019P1 | [6] | SENSOR | SMPressure (Low Pressure) (Incls. O-Ring ZD12P01100) |
| 8. | ZE72X04000 | [2] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| . . | ZD12P01100 | [1] | O-RING | KOB(Part of ZE72X04000), ID 10.8mm x OD 13.2mm, Not Shown |
| 9. | YN64H01312P1 | [1] | BLOCK | SM285mm Long (11-7/32 in) |
| 10. | YB06H01003P1 | [1] | BLOCK | KOBClamp, Single -- Ø75x125.5mm Long |
| 11. | ZW26X12000 | [1] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 12. | ZS18C10030 | [3] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 13. | HX23L04125CB | [1] | HOSE,6.35mm ID x 1250mm L | SM1250mm Long (49-7/32 in) |
| 14. | HX23L06165CG | [1] | HOSE | KOB1650mm Long (64-31/32 in) |
| 15. | ZW16H10000 | [3] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 16. | HX23L06145CR | [1] | HOSE,9.53mm ID x 1450mm L | KOB |
| 17. | HX23L04115CH | [1] | HOSE,6.35mm ID x 1150mm L | KOB1150mm Long (45-17/64 in) |
| 18. | PY01P01043D8 | [1] | CABLE TIE,102mm L | KOBWire Ties -- 368mm Long |
| 20. | YN64H01291P1 | [1] | BLOCK | KOB192mm Long (7-35/64 in) |
| 21. | HM83C10030G1 | [2] | BOLT | KOBM10x30mm |
![]()
