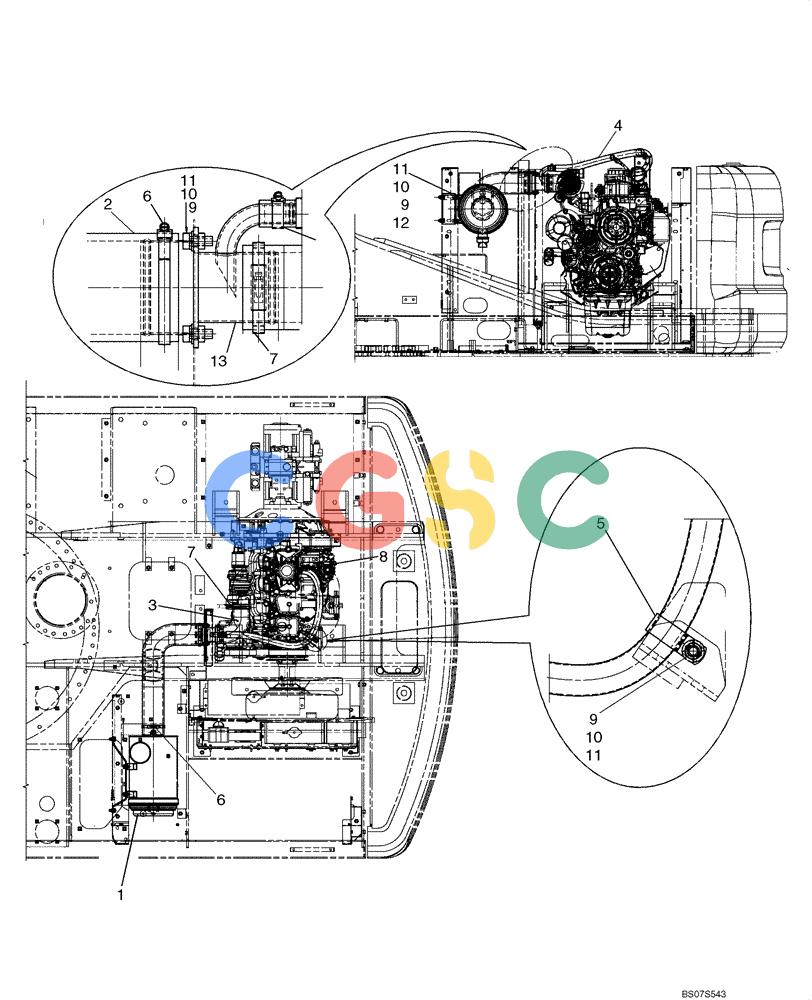

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-08[00]) - AIR CLEANER ASSEMBLY (YM11P00008F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YM11P00009F1 | [1] | CLEANER ASSY. | KOBFilter, Air See Figure 02-09 |
| 2. | YM11P01026P1 | [1] | INTAKE AIR HOSE | KOBAir -- 541mm Long (21-19/64 in) (90° Elbow - Attaches to Air Cleaner) Superseded by part number: 87345227 |
| 3. | YM11P01027P1 | [1] | INTAKE AIR HOSE | KOBAir -- 163mm Long (6-13/64 in), (90° Elbow) Superseded by part number: 87345229 |
| 4. | YM11P01028P1 | [1] | HOSE ASSY. | KOB(Contains 1 each of YM11P01029P1, YT68H01013D5 and 5 of PY01P01043D2) Superseded by part number: 87345790 |
| 4-1. | YM11P01029P1 | [1] | Hose -- ID 21 x OD 29 x 1000mm, (Part of YM11P01028P1), Not Shown | |
| 4-2. | YT68H01013D5 | [1] | Tube -- ID 28.2 x OD 34 x 850mm, (Part of YM11P01028P1), Not Shown | |
| 4-3. | PY01P01043D2 | [5] | CABLE TIE,4.60mm W x 202mm L | KOB(Part of YM11P01028P1), Wire Ties -- 160mm Long, Not Shown Superseded by part number: YT50C01100P1 |
| 5. | ZC46X31014 | [1] | CLIP | KOBClamp -- Ø31mm Single Cable |
| 6. | ZC16X11000 | [2] | CLIP | KOBClamp, Hose -- Min 100 x Max 121mm |
| 7. | ZC16X08700 | [2] | CLIP | KOBClamp, Hose -- Min 77 x Max 96mm |
| 8. | ZC16X03300 | [4] | FASTENER | KOBClamp, Hose -- Min 26 x Max 39mm |
| 9. | ZS18C10025 | [26] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 10. | ZW26X10000 | [26] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 11. | ZW16X10000 | [26] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 12. | YM11P01031P1 | [1] | Plate | |
| 13. | YM11P01020P1 | [1] | AIR INTAKE TUBE,149.5 mm L | KOB |
