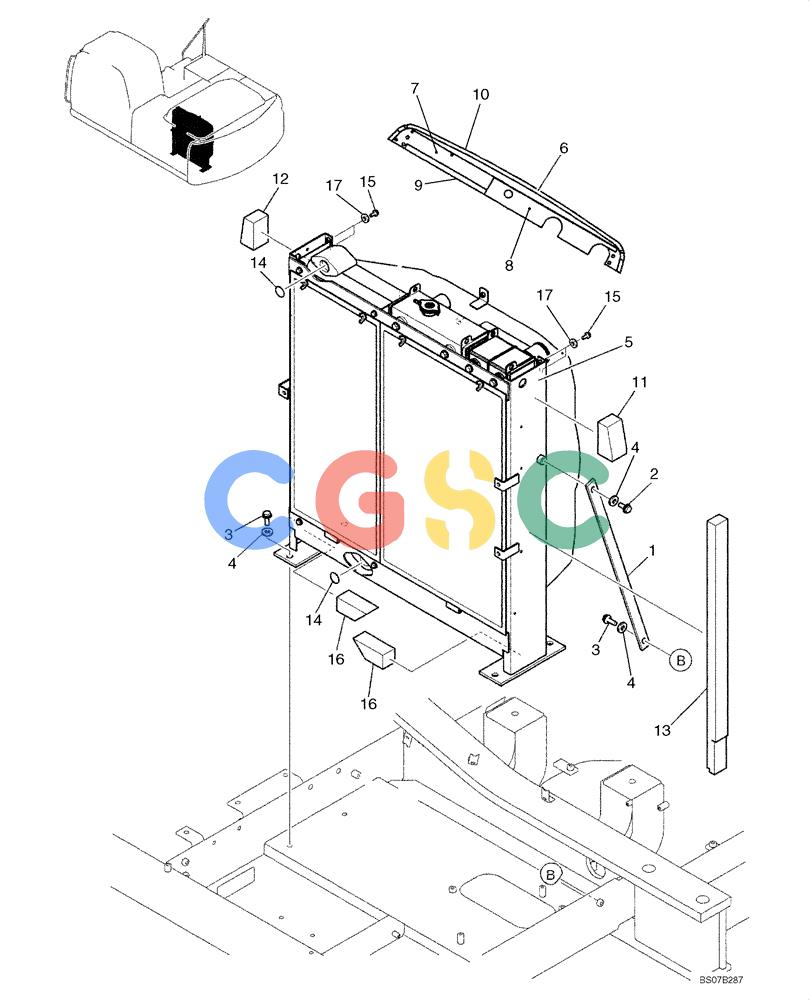

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-05[00]) - RADIATOR INSTALLATION (YM05P00021F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN05P01292P1 | [1] | STAY | KOBStay |
| 2. | ZS18C12025 | [1] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 3. | ZS18C12035 | [5] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| 4. | ZW16H12000 | [6] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 5. | YM05P00020F1 | [1] | RADIATOR | SMAssembly, See Figure 02-06 -- Used from date 12/01/2006 - 05/21/2008 Superseded by part number: YM05P00020F4 |
| . . | YM05P00020F2 | [1] | RADIATOR | SMAssembly, See Figure 02-06 -- Used after date 05/21/2008 Superseded by part number: YM05P00020F4 |
| 6. | YB05P01161F1 | [1] | PLATE | KOBPlate Assembly, Incls. Refs. 7-10 |
| 7. | YB05P01162P1 | [1] | PLATE | KOB |
| 8. | YB05P01163P1 | [1] | FOAM INSULATION | KOB |
| 9. | YB05P01040P1 | [1] | FOAM INSULATION | KOB |
| 10. | YB05P01041P1 | [1] | SOFT TRIM | KOB |
| 11. | YB05P01043F1 | [1] | PLATE | KOB Superseded by part number: 87340497 |
| 12. | YB05P01046F1 | [1] | PLATE | KOB Superseded by part number: 87340503 |
| 13. | YN05P01433P1 | [1] | INSULATOR | SM |
| 14. | YN05P01355P1 | [2] | O-RING,44.7mm ID x 51.7mm OD x 3.5mm | KOBID 44.7 ± 0.25 x OD 51.7mm |
| 15. | ZS18C08020 | [4] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 16. | YN05P01465P1 | [2] | FOAM INSULATION | KOB |
| 17. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
