神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (02-01[00]) - UPPER FRAME ASSEMBLY (YM52F00049P1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：次

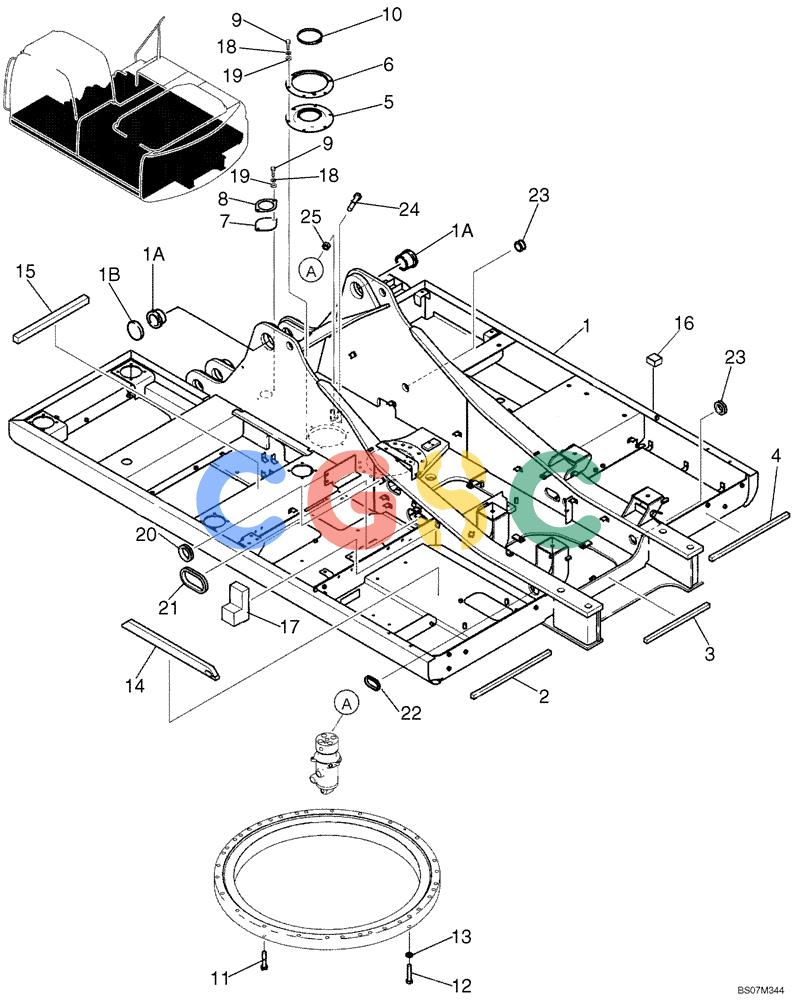

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YM52F00046P1 | [1] | Upper Frame Assembly, Incls. Refs. 1A & 1B | |
| 1A. | YM52F01012P1 | [2] | BUSHING | KOBID 85 x OD 100 x 56mm Long Flange 118mm |
| 1B. | 2414T2784 | [1] | COVER | KOBID 95 X OD 146.4 x Th 06mm |
| 2. | YM52F01017P1 | [1] | FOAM INSULATION | KOB |
| 3. | YM52F01018P1 | [1] | INSULATING PANEL | KOB |
| 4. | YM52F01019P1 | [1] | FOAM INSULATION | KOB |
| 5. | YN52F01857P1 | [1] | SEAL | KOB |
| 6. | YN52F01615P1 | [1] | PLATE | SM |
| 7. | YN52F01159P1 | [1] | PLATE | KOB |
| 8. | 2416Z434 | [1] | PACKING | KOBRubber |
| 9. | ZS18C10025 | [8] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm, (Incls. Washer) |
| 10. | ZC16X14800 | [1] | CLIP | KOBClamp, Hose -- Min 130 x Max 166mm |
| 11. | YN52F01100D3 | [30] | CAP | KOBScrew -- M20x2.50x100mm |
| 12. | HS53C20105G1 | [1] | CAP | KOBScrew -- M20x2.0x105mm Superseded by part number: 47423235 |
| 13. | ZW13H20000 | [1] | WASHER | KOBID 20 x OD 40 x Th 4.5mm |
| 14. | YB52F01145P1 | [1] | FOAM INSULATION | KOBInsulation |
| 15. | YN52F01737P1 | [1] | FOAM INSULATION | KOB |
| 16. | YB52F01146P1 | [1] | FOAM INSULATION | KOBInsulation |
| 17. | YB52F01147P1 | [1] | FOAM INSULATION | KOBInsulation |
| 18. | ZW26X10000 | [8] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 19. | ZW16H10000 | [8] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 20. | YM52F01143P1 | [1] | GROMMET | KOB |
| 21. | YN64H01286D2 | [1] | GASKET,175mm ID x 205mm OD x 32mm Thk | SMGrommet |
| 22. | YN13E01470P1 | [1] | GASKET | SMGrommet |
| 23. | YN21P01003P1 | [2] | GROMMET | KOB |
| 24. | ZS18F24130 | [1] | SCREW | KOBM24x2.0x130mm |
| 25. | ZN18F24019 | [1] | NUT | KOBM24x2.0mm |
