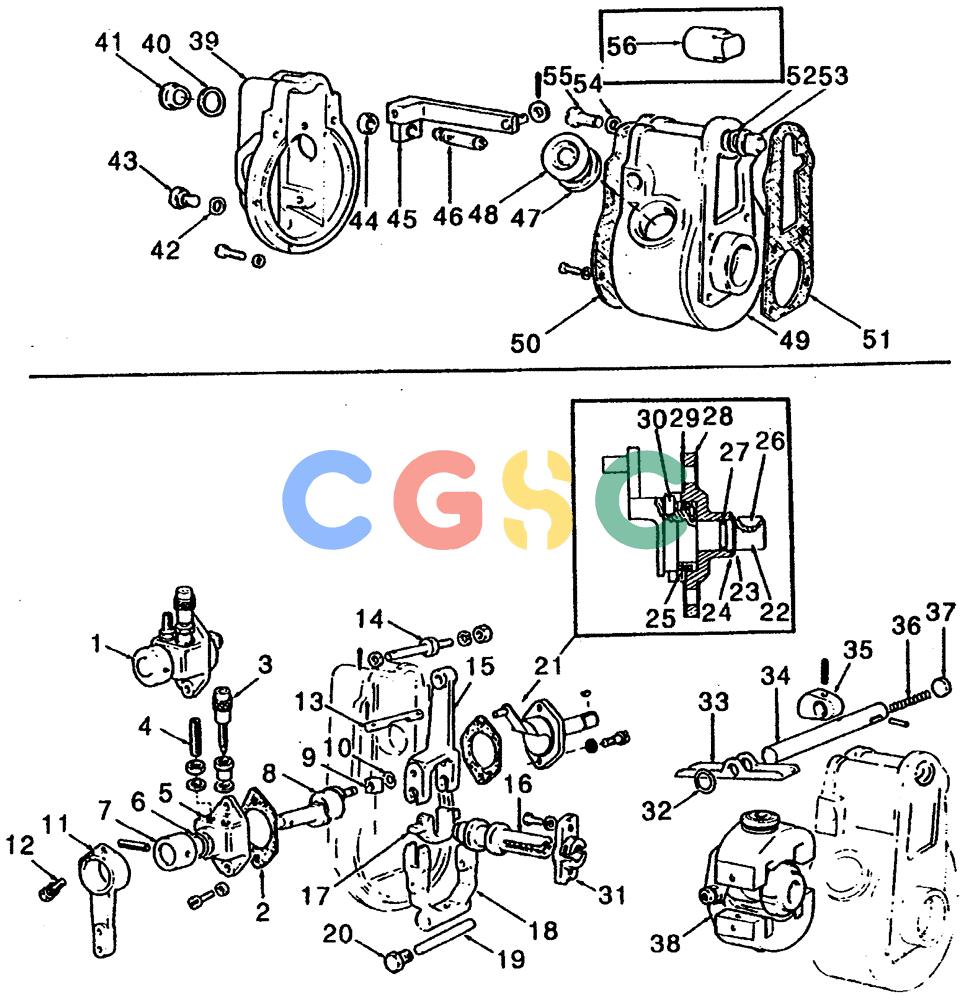

1. | 771576 | [1] | SPEED GOVERNOR | HITCONTROL |
. . | 10376611 | [2] | SCREW | MKTM6X1. OX 14MM Superseded by part number: 14305720 |
. . | 753177 | [2] | WASHER | MODGASKET Superseded by part number: 1118641 |
2. | 766432 | [1] | GUIDE | BELGASKET Superseded by part number: 86516898, 86516898, 9967217 |
3. | 771577 | [1] | TRIP ARM | HITPIN Superseded by part number: 75128856, 75128856, 80771577 |
. . | 767977 | [1] | NUT | MOD |
. . | 722023 | [1] | GASKET | MOD Superseded by part number: 772052 |
4. | 765505 | [1] | DOWEL | JES |
. . | 15896211 | [1] | NUT,M6, Cl 8 | JES Superseded by part number: 17037821 |
5. | 767981 | [1] | SUPPORT | MOD Superseded by part number: 79047831 |
6. | 759146 | [1] | RING | JESSEAL |
7. | JES765504 | [1] | BUSHING | JES |
. . | 14164170 | [1] | ROLL PIN | MKTPIN, 4. 4 X 25MM Superseded by part number: 190003909597 |
8. | 765503 | [1] | CAMSHAFT | JES Superseded by part number: 86517268, 86517268, 9967203 |
9. | 722282 | [1] | SLIDING PAD | JESPAD |
10. | 722283 | [1] | LOCKING RING | JESLOCKRING |
11. | 79047772 | [1] | LEVER | LEC Superseded by part number: 775633 |
12. | 13824611 | [1] | SCREW | MKTWASHER ASSY. Superseded by part number: 10902621 |
13. | 723838 | [1] | LEVER & PIN ASSY | JESPIN |
. . | 10734401 | [2] | COTTER PIN,M2 x 22 | TTFPIN.SPLITJ.8X29MM |
14. | 763432 | [1] | PIN | JES |
. . | 12639771 | [1] | WASHER | NH |
. . | 10734101 | [1] | COTTER PIN,M1.6 x 12 | BASP 1 N. SPLIT. 1.3X1 8. 3MM Superseded by part number: 87016658 |
. . | 11195470 | [1] | LOCK WASHER | MODLOCKWASHER,M7 Superseded by part number: 10569179 |
. . | 10788811 | [1] | NUT,M5, Cl 8 | IMO Superseded by part number: 86509265 |
15. | 763235 | [1] | LEVER | MOD Superseded by part number: 86517262, 86517262, 9967192 |
16. | 763187 | [1] | PIN | JES |
17. | 759016 | [1] | ARTICULATION | JESPIVOT |
18. | 763236 | [1] | YOKE | MODLEVER |
19. | 760926 | [1] | PIN | JES |
20. | 760925 | [1] | PLUG | JES |
21. | 771463 | [1] | STOP DEVICE | MODSTOP |
22. | 771464 | [1] | SHAFT | LEC Superseded by part number: 771463 |
23. | 11065876 | [1] | SNAP RING,M11, Ext | MKTRING, LOCKING, M11, Ext |
24. | 771468 | [1] | WASHER | LEC Superseded by part number: 87029570 |
25. | 771469 | [1] | | NNA Superseded by part number: 79047822, 79047822, 87029571 |
26. | 10205610 | [1] | KEY | MKT |
27. | 14452880 | [1] | O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro | LEC-011, 70 Duro, .301" ID x .070" Thk Superseded by part number: 17277881 |
28. | 771470 | [1] | SUPPORT | LEC Superseded by part number: 771463 |
29. | 771471 | [1] | GASKET | MKT Superseded by part number: 766432 |
30. | 14163370 | [1] | ROLL PIN | MKTPIN,4.4X8MM Superseded by part number: 10617010 |
31. | 706197 | [1] | COUPLING | MODBUSHING Superseded by part number: 772566 |
. . | 10902311 | [2] | BOLT,Hex, M6 x 18mm, Cl 5.8, Full Thd | MKTCAPSCREW,M6X1.0X18MM Superseded by part number: 10902321 |
. . | 768757 | [2] | COVER PLATE | MODWASHER Superseded by part number: 79023646 |
32. | MOD764582 | [1] | RING | MODSEAL |
33. | 765256 | [1] | BUTTERFLY | JESCONVEYOR |
34. | 768950 | [1] | SHAFT | MOD |
. . | 759046 | [1] | PIN | JES |
35. | 759041 | [1] | ELASTIC STOP | JESSTOP |
. . | 14161970 | [1] | LOCK PIN,M3 x 20, Slotted | LECPIN, LOCK, M3 x 20, Slotted Superseded by part number: 80300865 |
36. | 768161 | [1] | SPRING | JES |
37. | 757357 | [1] | PLUG | JESPLU6 |
39. | 769378 | [1] | COVER | MOD |
. . | 10376711 | [6] | SCREW | MKTCAPSCREW,M6X1.0X16MM Superseded by part number: 13276211 |
. . | 763177 | [6] | | BERGASKET Superseded by part number: 2979161, 2979161, A35113 |
40. | 769542 | [1] | GASKET | MKT Superseded by part number: 772648 |
41. | 760666 | [1] | PLUG | MODPLU6 |
42. | 726381 | [1] | GASKET | MODGASKET Superseded by part number: 79038381 |
43. | 757354 | [1] | PLUG | JESTRANSISTOR |
44. | 765342 | [1] | | JESGASKET Superseded by part number: 1417443, 1417443, NLS |
45. | 763440 | [1] | TIE-ROD | JESROD |
. . | 753195 | [1] | WASHER | JES Superseded by part number: 9929667 |
46. | 771461 | [1] | SCREW | HITSTOP,ELASTIC |
47. | 767314 | [1] | GASKET | MOD Superseded by part number: 1288522 |
48. | 767315 | [1] | PLUG | MKT Superseded by part number: 9967280 |
49. | 769361 | [1] | HOUSING | MKT Superseded by part number: 86570920 |
. . | 10516470 | [4] | LOCK WASHER | MODLOCKWASHER,M6 Superseded by part number: 17798174 |
50. | 760203 | [1] | GASKET | JES Superseded by part number: 1931007 |
51. | 769357 | [1] | GASKET | JES Superseded by part number: 9967197 |
52. | 768043 | [1] | WASHER | MODGASKET Superseded by part number: 722441 |
53. | 747210 | [1] | PLUG | MODBUSHING, THREADED |
55. | 10378811 | [1] | SCREW | MKTCAPSCREW,M8X1.29X16MM Superseded by part number: 10378821 |
56. | 766075 | [1] | PLUG | MODLINER Superseded by part number: 785811, 785811, 785812, 785811, 785812, 9967207 |
