纽荷兰零件查询(65B) - MOTORGRADERS (A2.24[003]) - INJECTION PUMP & MOUNTING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025,浏览:次

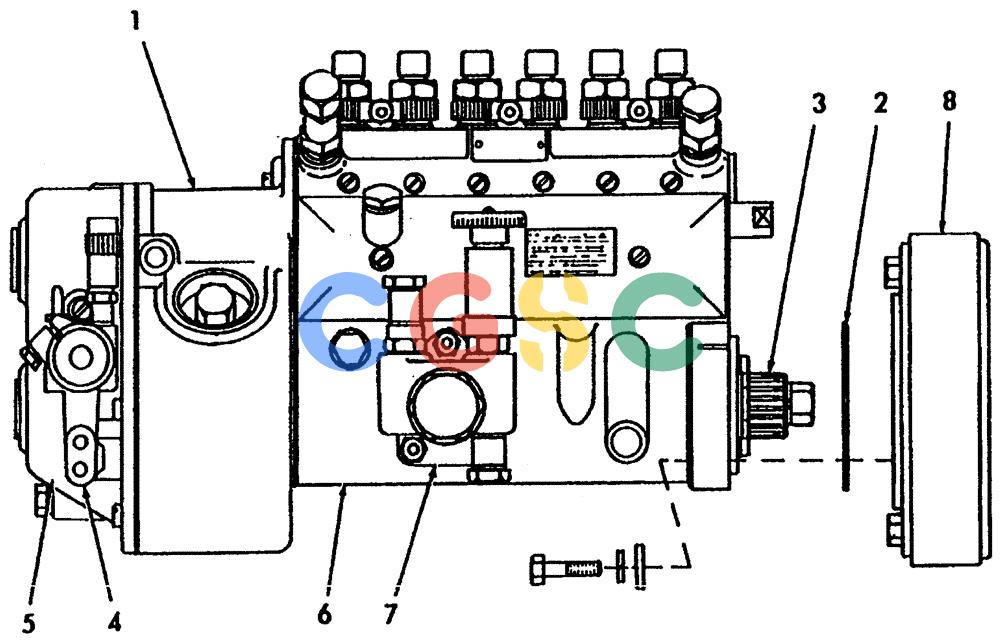

Pos. | Part No | Qty | Parts name | Comments |
1. | 771447 | [1] | FUEL INJECTION PUMP | HITPUMP,INJECTION |
. . | 11307021 | [4] | BOLT,Hex, M10 x 1.25 x 40, 10.9, Full Thd | TTF Superseded by part number: 11307024 |
. . | 11198371 | [4] | BELLEVILLE WASHER,Belleville, M10.5 | MKTWASHER Superseded by part number: 11198374 |
. . | 759850 | [4] | WASHER | MOD Superseded by part number: 12626024 |
2. | 561353 | [1] | GASKET | MOD Superseded by part number: 4817523 |
3. | 767372 | [1] | SPLINED BUSHING | MODBUSHING, SPLINED Superseded by part number: 86516900, 86516900, 9967222, 86516900, 9967222, NLS |
. . | 767373 | [1] | SPLINED BUSHING | MODBUSH ING.SPLI NED (-3DEG) |
. . | 767374 | [1] | SPLINED BUSHING | MODBUSHING,SPLINED(+3DEG) |
4. | 765633 | [1] | LEVER | MKT Superseded by part number: 733484 |
. . | 10902424 | [1] | SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd | TTFBOLT, Hex, M6 x 20, 8.8, Full Thd Superseded by part number: |
. . | 11197771 | [1] | LOCK WASHER | TTFWASHER Superseded by part number: 17088474 |
