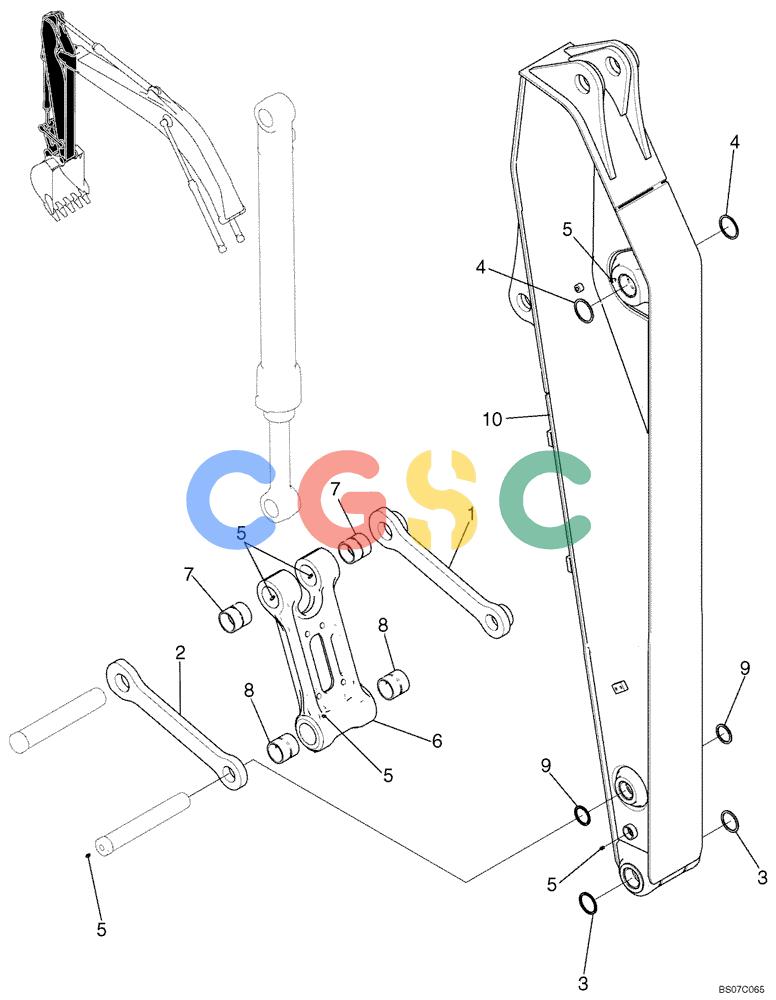

神钢零件查询(ED195-8) - BLADE RUNNER ACERA MARK 8 EXCAVATOR DOZER (TIER 3) ASN YL04U-0301 (12/07-12/11) (04-10[00]) - ARM INSTALLATION, (3.1M, STANDARD), (YM12BU0025F1), PAGE 1 OF 2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YM12B01039P1 | [1] | LINK | KOB |
| 2. | YM12B01040P1 | [1] | LINK | KOB |
| 3. | 2445R220D3 | [2] | SEAL,70mm ID x 85mm OD x 5mm Thk | KOBDust -- ID 70 x OD 85 x Th 5mm |
| 4. | 2445R220D4 | [2] | SEAL,78.7mm ID x 95mm OD x 5mm Thk | KOBDust -- ID 80 X OD 95 x Th 5mm Superseded by part number: 84499640 |
| 5. | ZG91S02000 | [6] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 6. | YM12B01051P1 | [1] | LINK | KOB Superseded by part number: YM12B01088F2 |
| 7. | YB12B01072P1 | [2] | BUSHING,70.28mm ID x 85mm OD x 85mm L | KOBID 70.2 x OD 85 x 85mm Long |
| 8. | YN12B01838P1 | [2] | BUSHING,70.28mm ID x 85mm OD x 67mm L | KOBID 70.2 x OD 85 x 67mm Long |
| 9. | 2445R220D2 | [2] | SEAL,65mm ID x 80mm OD x 5mm Thk | KOBDust -- ID 65 x OD 80 x Th 5mm Superseded by part number: 84499663 |
| 10. | YM12BU0018F1 | [1] | ARM | KOB3.1M, See Figure 04-11 |
