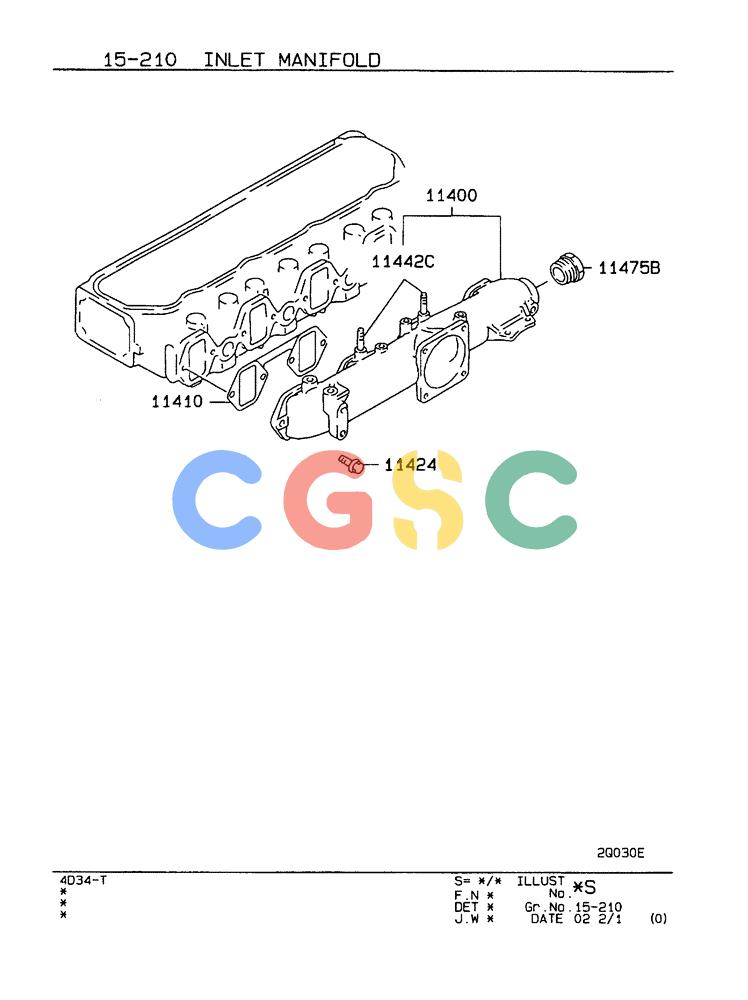

神钢零件查询(ED190LC-6E) - BLADE RUNNER EXCAVATOR/DOZER BTW YL03U0136 - YL03U0292 (1/05-12/06) (15-210) - INLET MANIFOLD Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 11400. | VAME013132 | [1] | INLET MANIFOLD | KOBMANIFOLD, INLET, FROM-UP TO: 0203.1-, MODEL TYPE: ALL |
| 11410. | VAME212086 | [2] | GASKET | KOBGASKET, INLET MANIFOLD, FROM-UP TO: 0203.1-, MODEL TYPE: ALL |
| 11424. | VAMF140225 | [8] | BOLT | KOBBOLT, INLET MANIFOLD, NO. 1, FROM-UP TO: 0203.1-, MODEL TYPE: ALL, Remarks: FLANGE, 8X20 |
| 11442C. | VAMF402549 | [2] | STUD | KOBSTUD, INLET MANIFOLD, FROM-UP TO: 0203.1-, MODEL TYPE: ALL, Remarks: 6X32 |
| 11475B. | VAMS661125 | [1] | PLUG | KOBPLUG, INLET MANIFOLD, FROM-UP TO: 0203.1-, MODEL TYPE: ALL, Remarks: TAPER, PT-1 |
![]()
