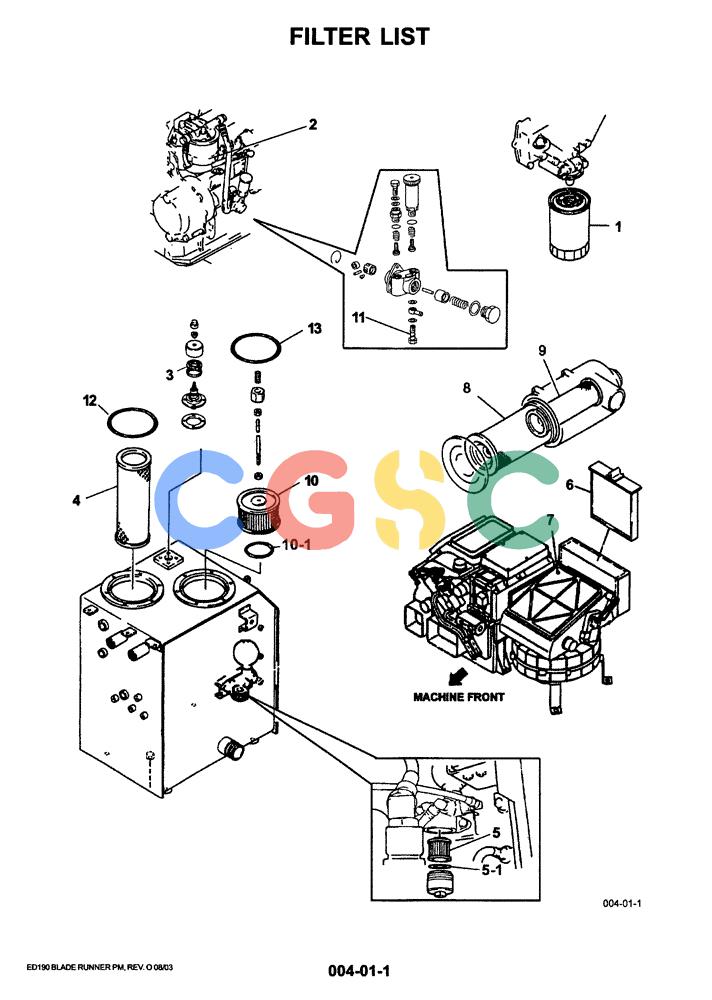

神钢零件查询(ED190LC-6E) - BLADE RUNNER EXCAVATOR/DOZER BTW YL03U0136 - YL03U0292 (1/05-12/06) (00-001) - FILTER LIST Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2446R332D12 | [1] | FILLER | KOBENGINE OIL FILTER (MITSUBISHI P/N), APPLICABLE: (VAME215002) Superseded by part number: 84218257 |
| 2. | 2446R332D5 | [1] | ELEMENT | KOBFUEL FILTER (MITSUBISHI P/N), APPLICABLE: (VAME016823) Superseded by part number: 2451R124-2A |
| 3. | YN57V00002S010 | [1] | ELEMENT | KOBELEMENT, HYD TK BREATHER Superseded by part number: 47640920 |
| 4. | YR50V00004P1 | [1] | HYDRAULIC OIL FILTER | KOBFILTER, HYD TK. RETURN YV30T00002F3 ELEMENT KIT, Remarks: STD Superseded by part number: YR50V00004P1P |
| 4. | YV50V00001P1 | [1] | ELEMENT | KOBFILTER, RETURN HYD. TK. YV30T00002F4 ELEMENT KIT, Remarks: N&B, BREAKER |
| 5. | YN50V01001S005 | [1] | ELEMENT | KOBELEMENT, PILOT Superseded by part number: 84565888 |
| 5-1. | YN50V01001S007 | [1] | O-RING,2.5mm Thk x 53mm ID, 90 Duro | KOB Superseded by part number: 2446U346S5 |
| 6. | YN50V01006P1 | [1] | ELEMENT | KOBFILTER, AC (FRESH AIR) (not HEPA) Superseded by part number: YN50V01006P1P |
| 7. | YT20M00004S050 | [1] | ELEMENT | KOBFILTER, AC (RECIRCULATION) (not HEPA) Superseded by part number: YT20M00004S050P |
| 8. | 2446R277S5 | [1] | AIR FILTER | KOBFILTER, OUTER AIR |
| 9. | 2446R277S6 | [1] | AIR FILTER | KOBFILTER, INNER AIR |
| 10. | YN50V00002S001 | [1] | STRAINER ASSY. | KOBSTRAINER, HYD SUCTION |
| 10-1. | 45Z91D6 | [1] | O-RING | KOBID 97.79 ± 0.38 OD 108.45mm |
| 11. | VAME717651 | [1] | SPOOL | KOBFILTER, FUEL GAUGE |
| 12. | ZD11P14000 | [1] | O-RING | KOB |
| 13. | ZD11G20000 | [1] | O-RING,5.7mm Thk x 199.3mm ID, 70 Duro | KOBID 199.30 ± 1.55 x OD 210mm |
![]()
