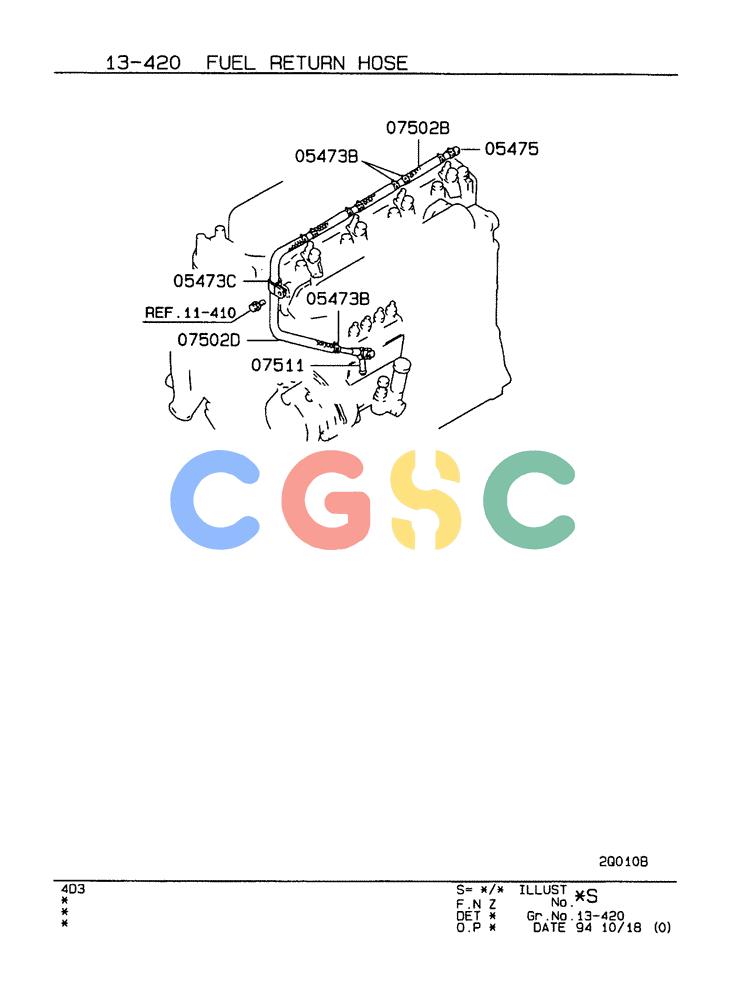

神钢零件查询(ED190LC-6E) - BLADE RUNNER EXCAVATOR/DOZER BTW YL03U0136 - YL03U0292 (1/05-12/06) (13-420) - FUEL RETURN HOSE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 05473B. | VAMS660163 | [9] | CLAMP | KOBCLIP, FUEL RETURN LINE, FROM-UP TO: 0203.1-, MODEL TYPE: ALL, Remarks: D=11.6 Superseded by part number: VA0531771160 |
| 05473C. | VAMH020135 | [1] | CLIP | KOBCLIP, FUEL RETURN LINE, FROM-UP TO: 0203.1-, MODEL TYPE: ALL, Remarks: D=12 |
| 05475. | VAME016571 | [1] | CAP | KOBCAP, FUEL RETURN LINE, FROM-UP TO: 0203.1-, MODEL TYPE: ALL |
| 07502B. | VAMS642596 | [3] | HOSE | KOBHOSE, FUEL INJECTION NOZZLE FUEL RETURN, FROM-UP TO: 0203.1-, MODEL TYPE: ALL, Remarks: ID 6 x 2000mm Long (6 x 110) |
| 07502D. | VAMS642596 | [1] | HOSE | KOBHOSE, FUEL INJECTION NOZZLE FUEL RETURN, FROM-UP TO: 0203.1-, MODEL TYPE: ALL, Remarks: ID 6 x 2000mm Long)(6 x 380) |
| 07511. | VAME018087 | [1] | PIPE | KOBTUBE, INJECTION PUMP FUEL RETURN, FROM-UP TO: 0203.1-, MODEL TYPE: ALL |
![]()
