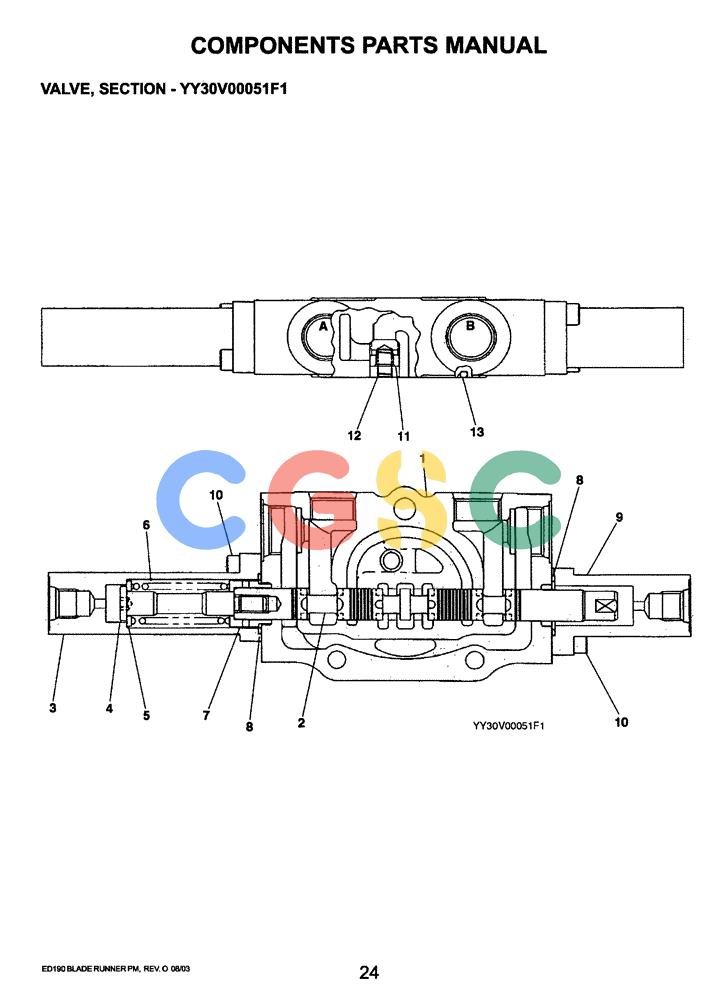

神钢零件查询(ED190LC-6E) - BLADE RUNNER EXCAVATOR/DOZER BTW YL03U0136 - YL03U0292 (1/05-12/06) (07-041) - VALVE, SECTION (YY30V00051F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY30V00051F1 | [1] | MANIFOLD | KOBCONTROL VALVE ASSY SECTION |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONHOUSING |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 3. | 2436R919S12 | [1] | CAP | KOBCAP |
| 4. | 2436R919S9 | [1] | END | KOBEND, SPOOL |
| 5. | 2436R919S10 | [1] | SEAT | KOBSEAT, SPRING |
| 6. | YY30V00051S006 | [1] | SPRING | KOBSPRING |
| 7. | 2436R919S8 | [1] | SEAT | KOBSEAT, SPRING |
| 8. | 2436R668S3 | [2] | O-RING | KOBO-RING |
| 9. | 2436R919S7 | [1] | CAP | KOBCAP |
| 10. | ZS23C06018 | [1] | SCREW,Hex Socket Head, M6 x 18mm | KOBM06x1.0x18mm |
| 11. | 2436R331S10 | [1] | POPPET | KOBPOPPET |
| 12. | 2436U389S12 | [1] | SPRING | KOBSPRING |
| 13. | 45Z91D84 | [1] | O-RING | KOBID 56.74 ± 0.25 OD 63.80mm |
![]()
