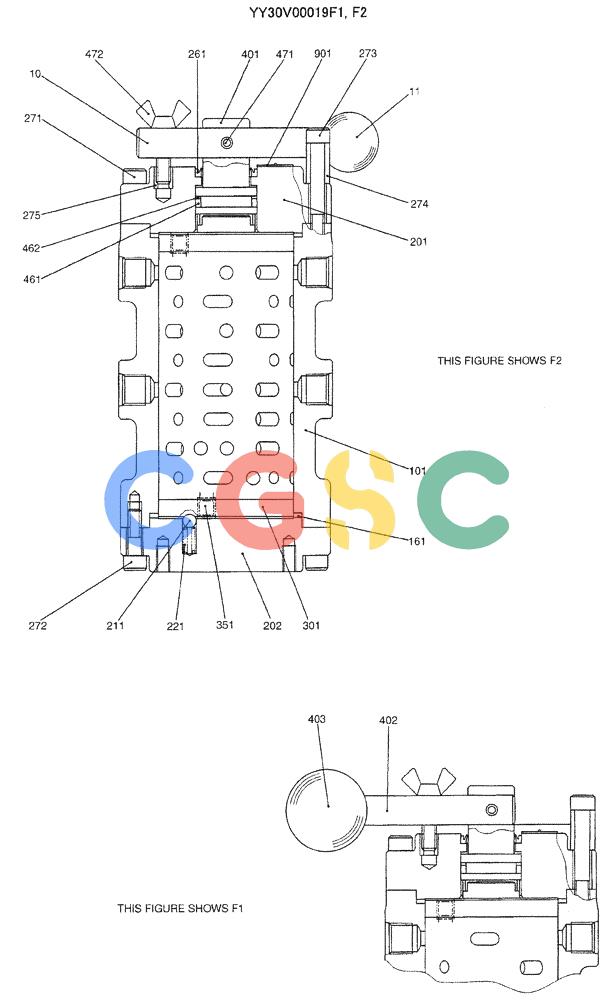

神钢零件查询(ED190LC-6E) - BLADE RUNNER EXCAVATOR/DOZER BTW YL03U0136 - YL03U0292 (1/05-12/06) (07-038) - VALVE ASSY, SELECTOR, (YY30V00019F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY30V00019F1 | [1] | VALVE | KOBASSY, SELECTOR |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONCASE |
| 161. | ZD12G08000 | [2] | O-RING,79.40mm ID x 85.60mm OD x 3.10mm | KOBID 79.40 ± 0.69 x OD 85mm |
| 201. | NSS | [1] | NOT SOLD SEPARAT | CONCOVER |
| 202. | NSS | [1] | NOT SOLD SEPARAT | CONCOVER |
| 211. | 2436R284S416 | [1] | BALL | KOB |
| 221. | 2436U1244S221 | [1] | SPRING | KOB |
| 261. | 2436U1244S261 | [1] | SEAL | KOBDUST |
| 271. | ZS23C08035 | [4] | SCREW,Hex Socket Head, M8 x 35mm | KOBM08x1.25x35mm |
| 272. | ZS23C08025 | [6] | SCREW,Hex Socket Head, M8 x 25mm | KOBM08x1.25x25mm |
| 273. | ZS23C08055 | [2] | CAPSCREW,Hex Socket Head, M8 x 55mm | KOBSCREW M08x1.25x55mm |
| 274. | NSS | [2] | NOT SOLD SEPARAT | CONSPACER |
| 275. | NSS | [2] | NOT SOLD SEPARAT | CONHELISERT |
| 301. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 351. | NSS | [4] | NOT SOLD SEPARAT | CONSETSCREW |
| 401. | NSS | [1] | NOT SOLD SEPARAT | CONPIN |
| 402. | NSS | [1] | NOT SOLD SEPARAT | CONLEVER |
| 403. | NSS | [1] | NOT SOLD SEPARAT | CONKNOB |
| 461. | ZD12P02800 | [1] | O-RING | KOBID 27.70 ± 0.27 x OD 34mm |
| 462. | ZD85P02800 | [1] | BACK-UP RING | KOBRING, BACK-UP |
| 471. | ZP26D06025 | [1] | PIN | KOBSPRING |
| 472. | 2436U1244S50 | [1] | BOLT | KOBWING |
| 901. | NSS | [1] | NOT SOLD SEPARAT | CONNAME PLATE |
![]()
