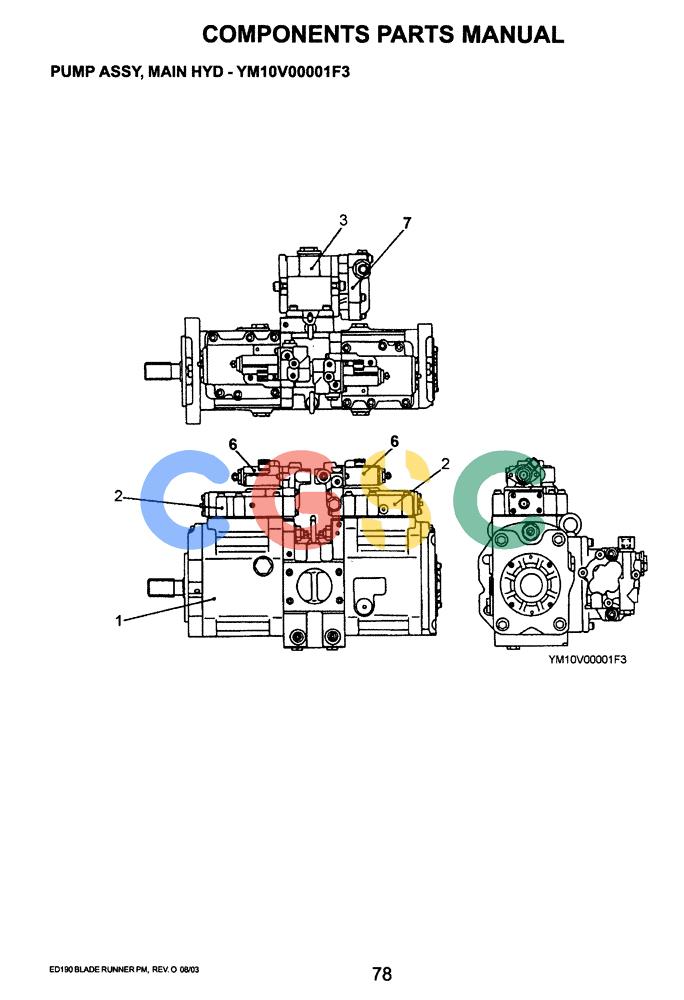

神钢零件查询(ED190LC-6E) - BLADE RUNNER EXCAVATOR/DOZER BTW YL03U0136 - YL03U0292 (1/05-12/06) (07-016) - PUMP ASSEMBLY, MAIN HYD (YM10V00001F3) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM10V00001F3 | [1] | PUMP | KOBAssembly, Main Hydraulic Superseded by part number: YM10V00001F6 |
| 1. | YM10V00002F1 | [1] | PUMP | KOBHydraulic, See Figure 07-017 (00) Not serviced - Order upper assembly |
| 2. | YM10V01001F1 | [2] | REGULATOR | KOBSee Figure 07-018 (00) |
| 3. | YB46W00001F1 | [1] | CASE | KOBGear Assembly, See Figure 07-010 (Use oring ZD12G09500 at attach point) Superseded by part number: YB46W00001F2 |
| 6. | YB35V00003F1 | [2] | VALVE | KOBSolenoid, See Figure 07-008 |
| 7. | YX10V00004F2 | [1] | PUMP | KOBAssembly, Gear, See Figure 07-043 |
| . . | YM10V00001F4 | [1] | PUMP | KOBAssembly, Main Hydraulic Superseded by part number: YM10V00001F6 |
| 1. | YM10V00002F2 | [1] | HYDRAULIC PUMP | SMPump Hydraulic Assembly, See Figure 07-017 (01) |
| 2. | YM10V01001F2 | [2] | REGULATOR | KOBSee Figure 07-018 (01) |
![]()
